Radio
The Radio tab (Figure 327) configures the channel enablement, and transmitter and receiver characteristics.
Select the channel control mode (hardware enable signals or API command).
►
Select the HIGH, MED, or LOW receiver ADC rate.
►
Select the active receiver ADC from high-performance or low-power types.
►
Determine the analog low-pass filter frequency response.
►
Select the receiver frequency offset correction.
►
Select the DAC, 3 dB boost mode.
►
Select the transmitter frequency offset correction.
►
Select the LPF power consumption for the transmitter and receiver.
►
analog.com

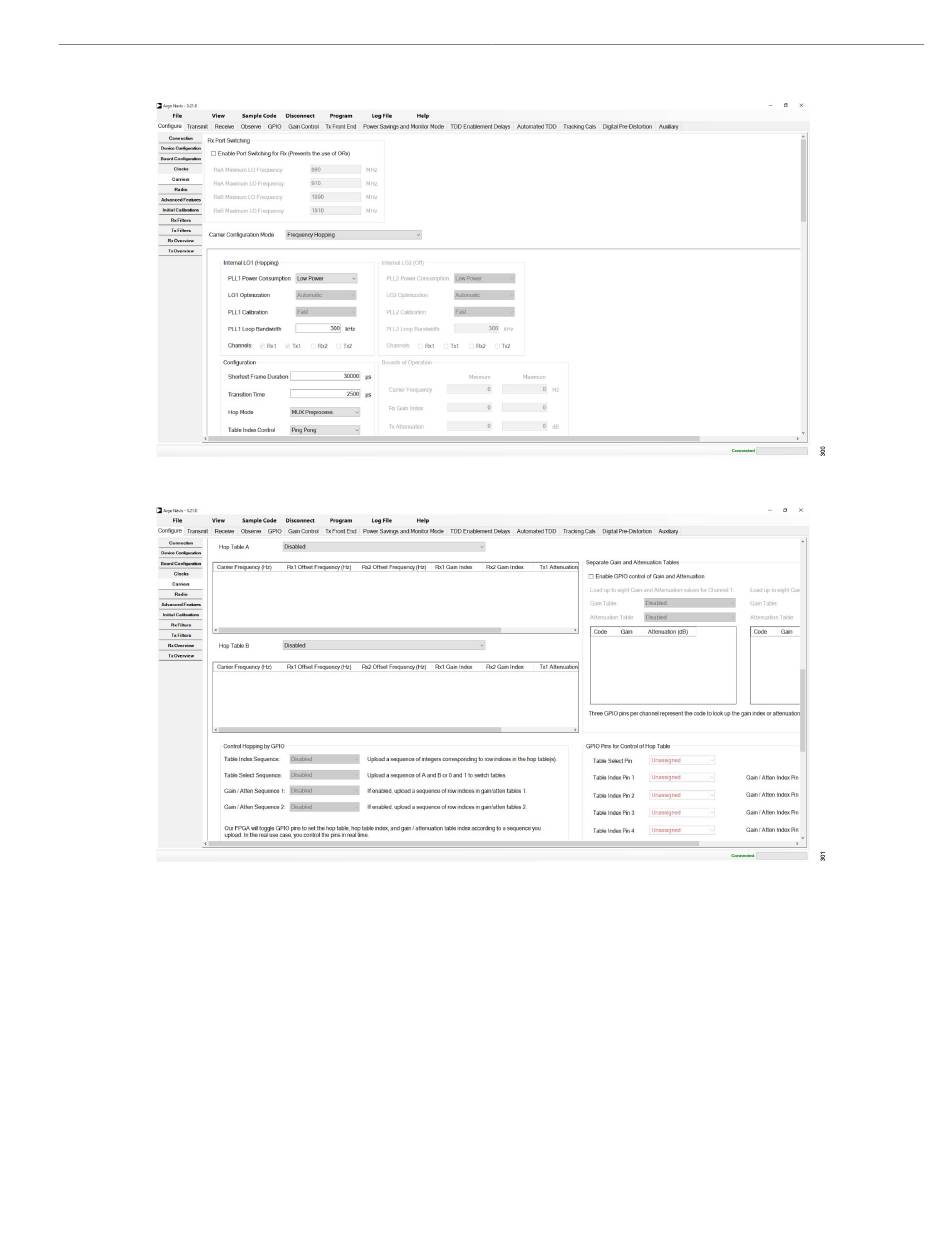

Figure 325. Carriers Configuration Tab (Frequency Hopping)
