ADRV9001 EVALUATION SYSTEM
Receiver Only
1. Select the predefined JSON file DMR_24K_RX_ONLY_FH.json.
2. Hop Pin is set automatically.
3. Go to the Receive tab, set the capture length to the longer value. Here, it is set to 65536.
4. Click Play.
See the signal being played for multiple frequencies.
Note that in the time domain, the TES only shows actual data frames, i.e., without gap between data frames.

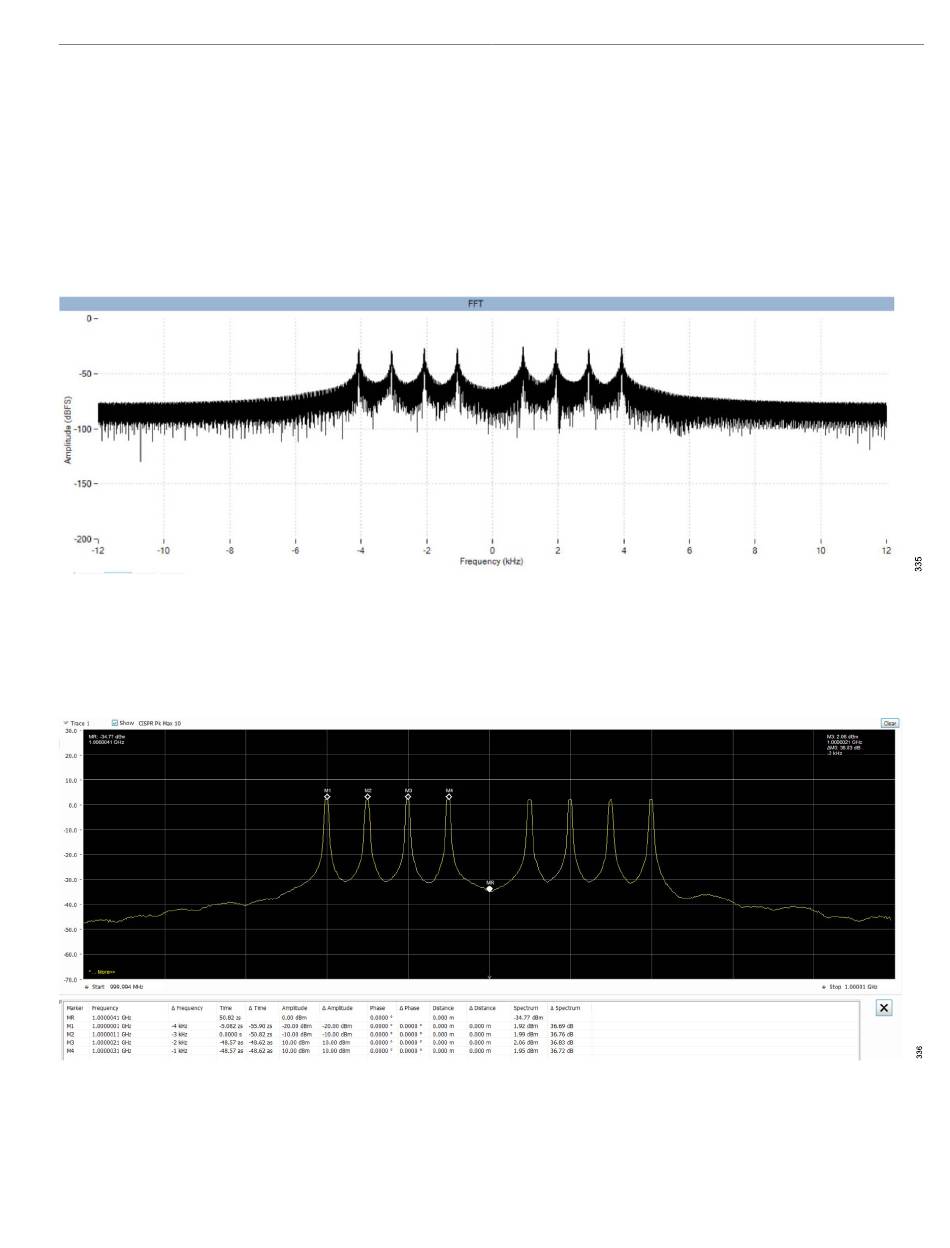

Figure 371. Receiver TDD DMR with Frequency Hopping
Transmitter Only
The steps are the same as Receiver Only, except that the predefined JSON file must be DMR_24K_TX_ONLY_FH.json.
Use 0 Hz tone as an example. There are six frequencies here, and the plot is done with maximum hold.
Figure 372. Transmitter TDD DMR with Frequency Hopping
Transceiver
The steps are the same as Transmitter Only or Receiver Only, except that the predefined JSON file must be DMR_24K_TX_RX_FH.json.
