Parameter Descriptions
0-24 Display Line 3 Large
Option:
[1686] FC Port REF 1
[1690] Alarm Word
[1691] Alarm Word 2
[1692] Warning Word
[1693] Warning Word 2
[1694] Ext. Status Word
4 4
[1695] Ext. Status Word 2
[1890] Process PID Error
[1891] Process PID Output
[1892] Process PID Clamped Output
[1893] Process PID Gain Scaled Output
[2117] Ext. 1 Reference [Unit]
[2118] Ext. 1 Feedback [Unit]
[2119] Ext. 1 Output [%]
[3401] PCD 1 Write For Application
[3402] PCD 2 Write For Application
[3403] PCD 3 Write For Application
[3404] PCD 4 Write For Application
[3405] PCD 5 Write For Application
[3406] PCD 6 Write For Application
[3407] PCD 7 Write For Application
[3408] PCD 8 Write For Application
[3409] PCD 9 Write For Application
[3410] PCD 10 Write For Application
[3421] PCD 1 Read For Application
[3422] PCD 2 Read For Application
[3423] PCD 3 Read For Application
[3424] PCD 4 Read For Application
[3425] PCD 5 Read For Application
[3426] PCD 6 Read For Application
[3427] PCD 7 Read For Application
[3428] PCD 8 Read For Application
[3429] PCD 9 Read For Application
[3430] PCD 10 Read For Application
[3450] Actual Position
[3456] Track Error

4.1.3 0-3* LCP Custom Readout

It is possible to customise the display elements for various
purposes.
Custom Readout
The calculated value to be displayed is based on settings
in 0-30 Custom Readout Unit, 0-31 Custom Readout Min
Value (linear only), 0-32 Custom Readout Max Value,
4-14 Motor Speed High Limit [Hz] and actual speed.
26
Programming Guide
Function:
The relation depends on the type of unit selected in
0-30 Custom Readout Unit:
Unit Type
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure
Power
[0]
[1]
[5]
[10]
[11]
[12]
[20]
[21]
[22]
[23]
[24]
[25]
[30]
[31]
Danfoss A/S © Rev. 2014-03-31 All rights reserved.
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Liniar
units only
P 0-31
0

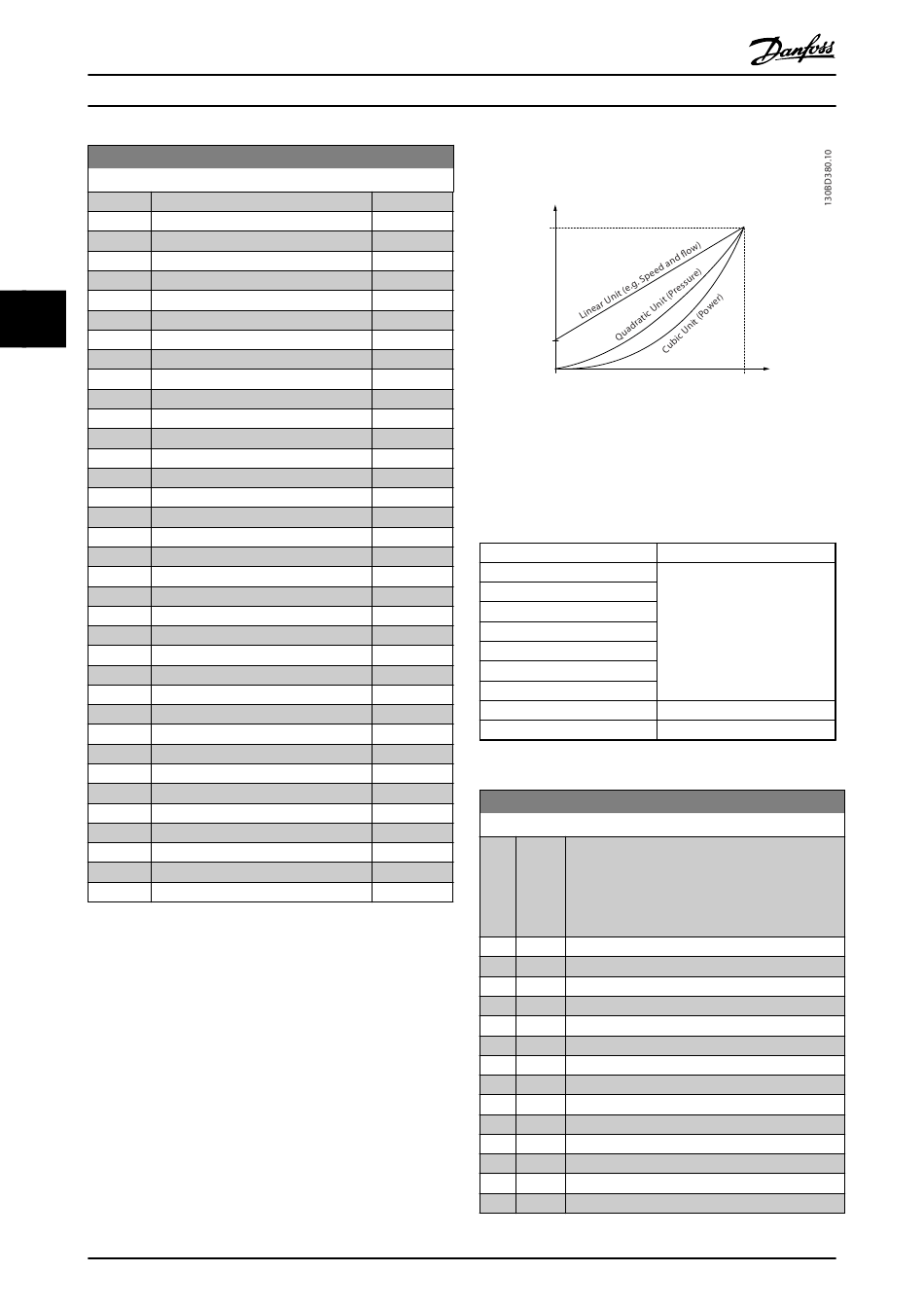

Illustration 4.1 Custom Readout
Speed Relation
Linear
Quadratic
Cubic
Table 4.1 Relation between Unit Type and Speed
0-30 Custom Readout Unit
Option: Function:
Program a value to be shown in the LCP. The
value has a linear, squared or cubed relation to
speed. This relation depends on the unit selected,
see Table 4.1. The actual calculated valued can be
read in parameter 16-09 Custom Readout.
None
%
*
PPM
1/min
RPM
Pulse/s
l/s
l/min
l/h
m³/s
m³/min
m³/h
kg/s
kg/min
Motor Speed
Motor Speed
High limit
P 4-14 (Hz)
MG06C402
