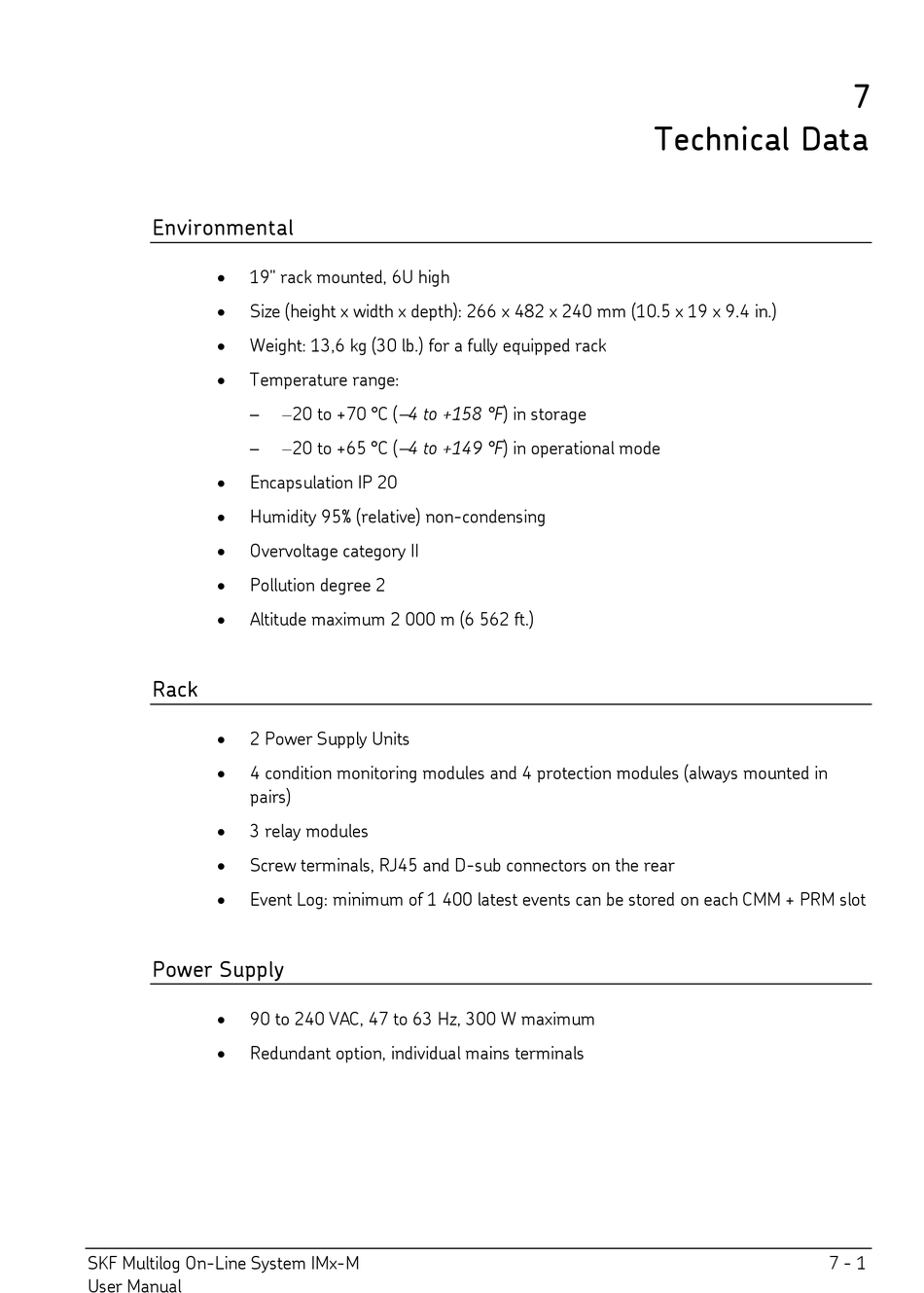

Technical Data; Environmental; Rack - SKF Multilog On-Line System IMx-M User Manual

Environmental


19" rack mounted, 6U high

Size (height x width x depth): 266 x 482 x 240 mm (10.5 x 19 x 9.4 in.)

Weight: 13,6 kg (30 lb.) for a fully equipped rack

Temperature range:
–
–

Encapsulation IP 20

Humidity 95% (relative) non-condensing

Overvoltage category II

Pollution degree 2

Altitude maximum 2 000 m (6 562 ft.)

Rack


2 Power Supply Units

4 condition monitoring modules and 4 protection modules (always mounted in
pairs)

3 relay modules

Screw terminals, RJ45 and D-sub connectors on the rear

Event Log: minimum of 1 400 latest events can be stored on each CMM + PRM slot
Power Supply

90 to 240 VAC, 47 to 63 Hz, 300 W maximum

Redundant option, individual mains terminals
SKF Multilog On-Line System IMx-M
User Manual

20 to +70 °C (
4 to +158 °F) in storage

20 to +65 °C (
4 to +149 °F) in operational mode
