Local Display and Local Display Selection Keypad

The local display and local display selection keypad are located on the front of each
condition monitoring module
They are used to locally control and supervise the protection part.

The display is normally in screen saver mode (off) and is activated when a key is
pressed on the keypad. The screen saver is reactivated after 10 minutes of key
inactivity.

Use the keypad to navigate through the menus, the white help text at the bottom of
the display describes the key functionality in each menu.
Menu tree:

Bar graph Display
–
–
SKF Multilog On-Line System IMx-M
User Manual
(CMM).

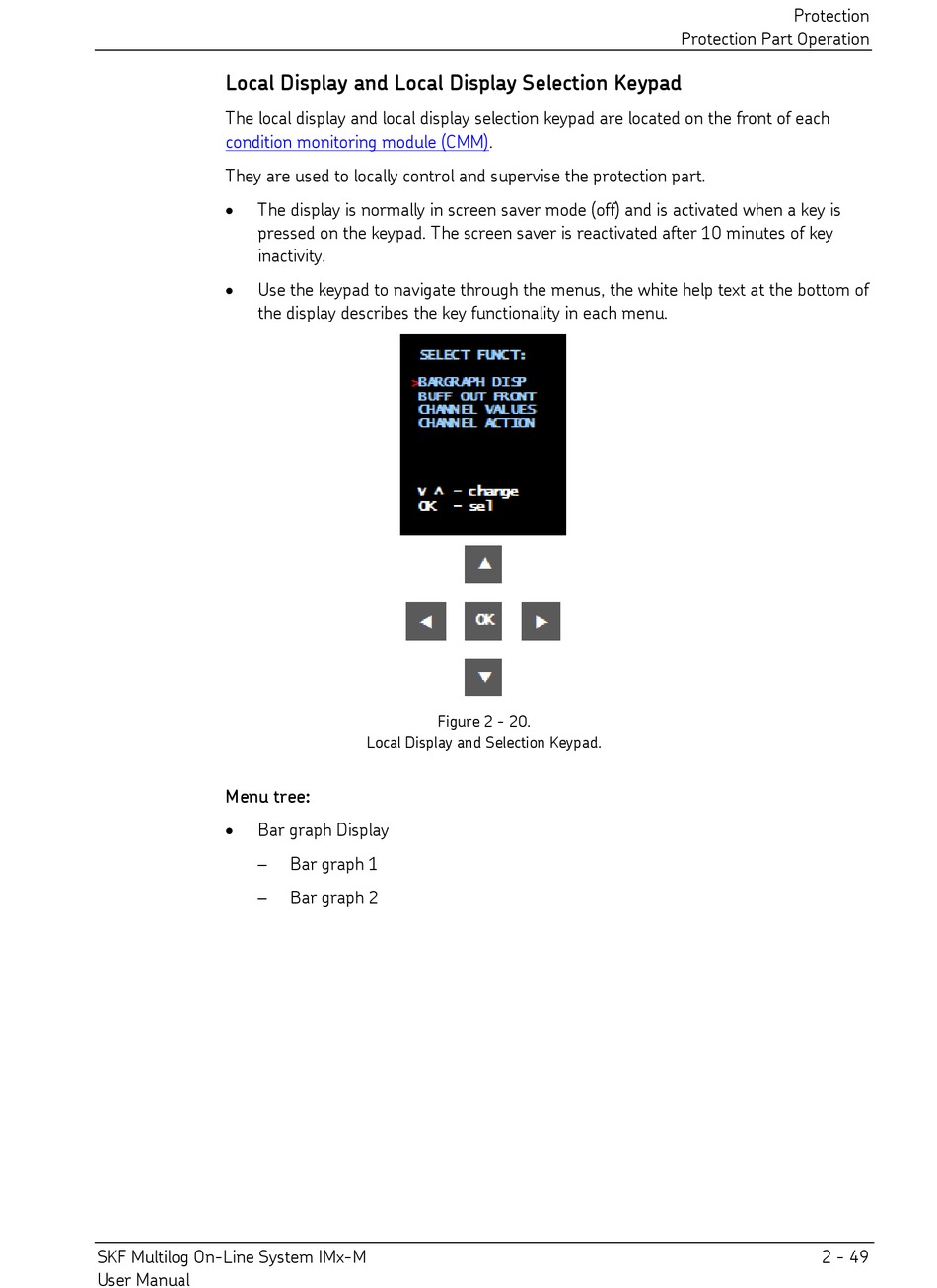

Figure 2 - 20.
Local Display and Selection Keypad.
Bar graph 1
Bar graph 2
Protection
Protection Part Operation
2 - 49
