Hardware
Hardware Configuration

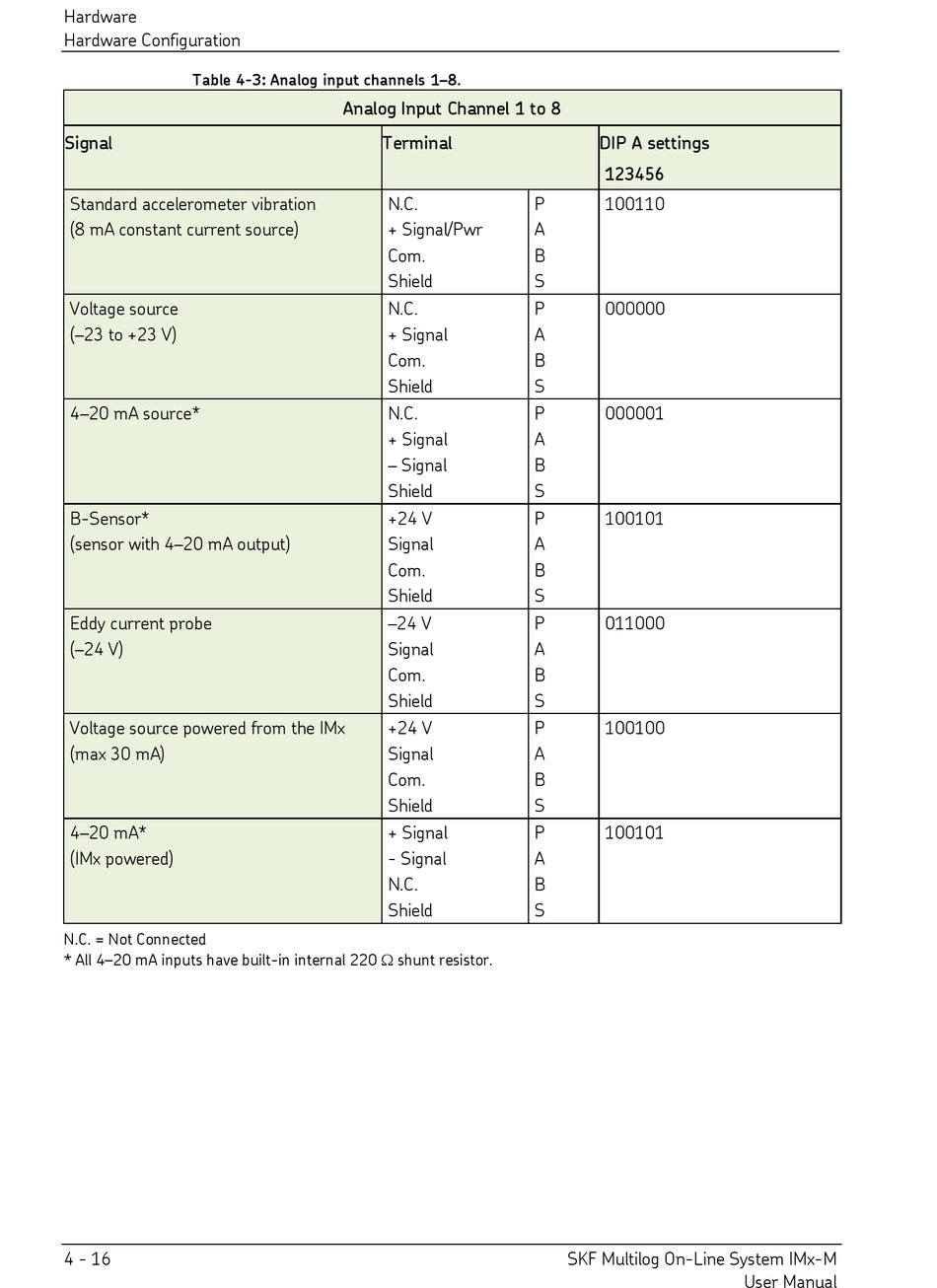

Table 4-3: Analog input channels 1–8.
Signal
Standard accelerometer vibration
(8 mA constant current source)
Voltage source
(–23 to +23 V)
4–20 mA source*
B-Sensor*
(sensor with 4–20 mA output)
Eddy current probe
(–24 V)
Voltage source powered from the IMx
(max 30 mA)
4–20 mA*
(IMx powered)
N.C. = Not Connected
* All 4–20 mA inputs have built-in internal 220  shunt resistor.
4 - 16
Analog Input Channel 1 to 8
Terminal
N.C.
+ Signal/Pwr
Com.
Shield
N.C.
+ Signal
Com.
Shield
N.C.
+ Signal
– Signal
Shield
+24 V
Signal
Com.
Shield
–24 V
Signal
Com.
Shield
+24 V
Signal
Com.
Shield
+ Signal
- Signal
N.C.
Shield
DIP A settings
123456
P 100110
A
B
S
P 000000
A
B
S
P 000001
A
B
S
P 100101
A
B
S
P 011000
A
B
S
P 100100
A
B
S
P 100101
A
B
S
