To arm slot 1
To disarm analog ch
SKF Multilog On-Line System IMx-M
User Manual

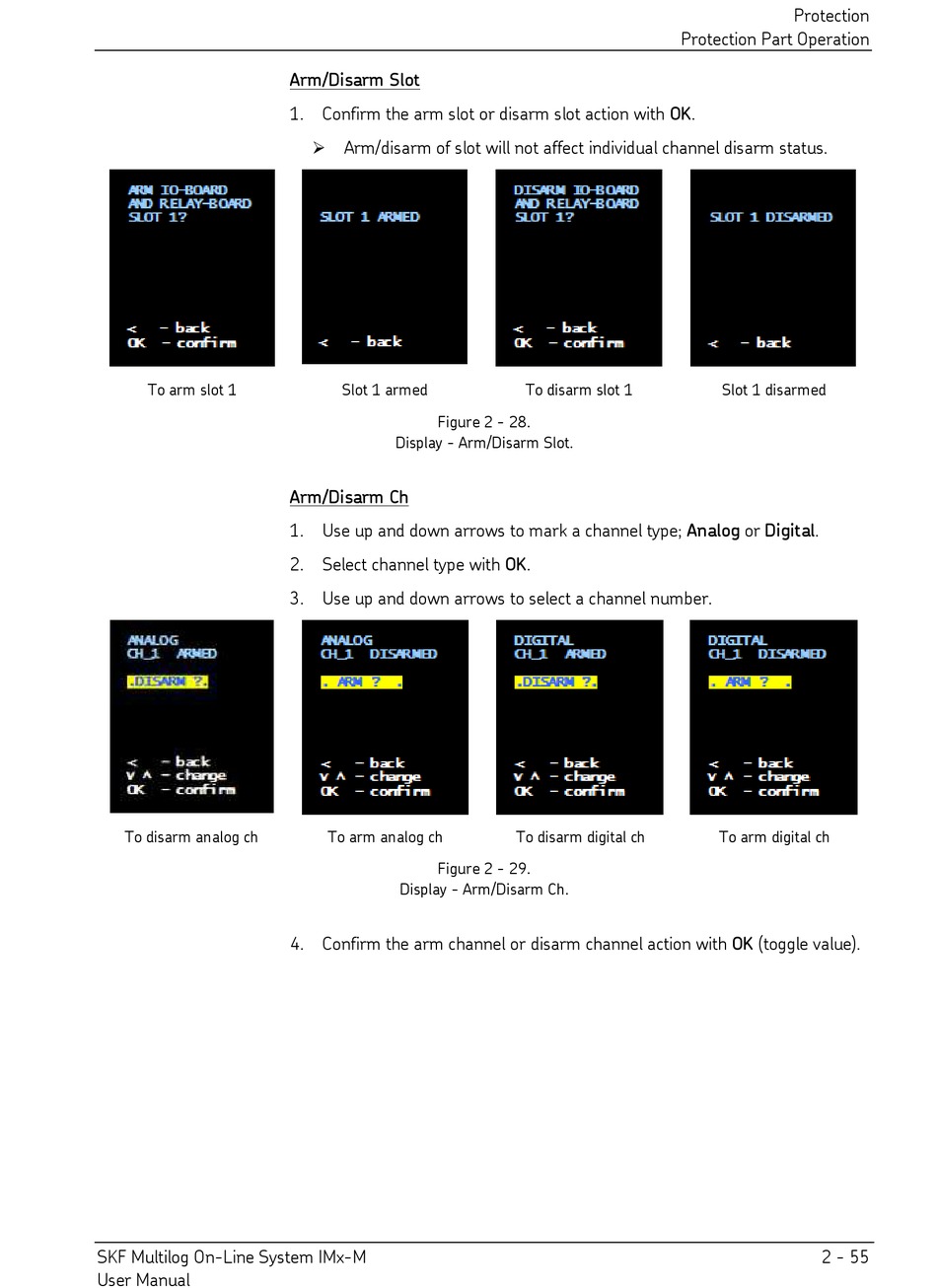

Arm/Disarm Slot
1. Confirm the arm slot or disarm slot action with OK.
 Arm/disarm of slot will not affect individual channel disarm status.
Slot 1 armed
Figure 2 - 28.
Display - Arm/Disarm Slot.
Arm/Disarm Ch
1. Use up and down arrows to mark a channel type; Analog or Digital.
2. Select channel type with OK.
3. Use up and down arrows to select a channel number.
To arm analog ch
Figure 2 - 29.
Display - Arm/Disarm Ch.
4. Confirm the arm channel or disarm channel action with OK (toggle value).
Protection Part Operation
To disarm slot 1
To disarm digital ch
Protection
Slot 1 disarmed
To arm digital ch
2 - 55
