1. Select a function with up and down arrows.
2. Confirm the selection with OK.
Bar Graph Display
The IMx-M can show two bar graphs with values from analog channel 1 to 16 or
combined measurements 1 to 8.
The channel alarm levels are displayed in the background: green for normal, yellow for
alert and red for danger.
The channel value is displayed as a blue bar and also printed in text at the top together
with engineering unit and detection type.
1. Select bar graph number (1 or 2) with up and down arrows.
2. Confirm the selection with OK.
3. Select a channel with up and down arrows, from analog channel 1 to 16 or
combined measurement 1 to 8.
4. Confirm the selection with OK.
5. To set the second bar graph, repeat steps 1 to 4.
To select graph number
SKF Multilog On-Line System IMx-M
User Manual

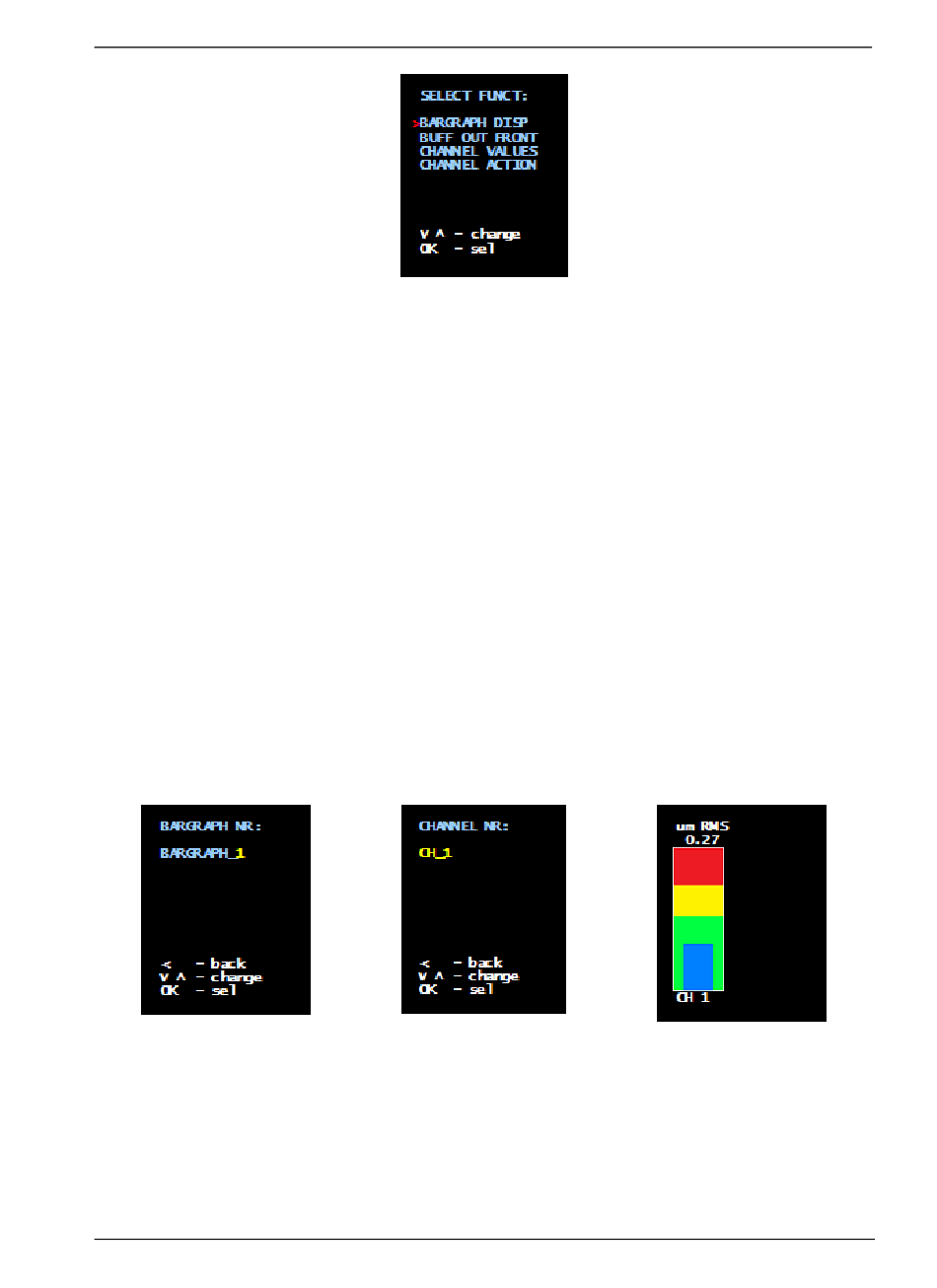

Figure 2 - 21.
Start Menu.
To select a channel
Figure 2 - 22.
Bar Graph.
Protection
Protection Part Operation
Bar graph 1 display
