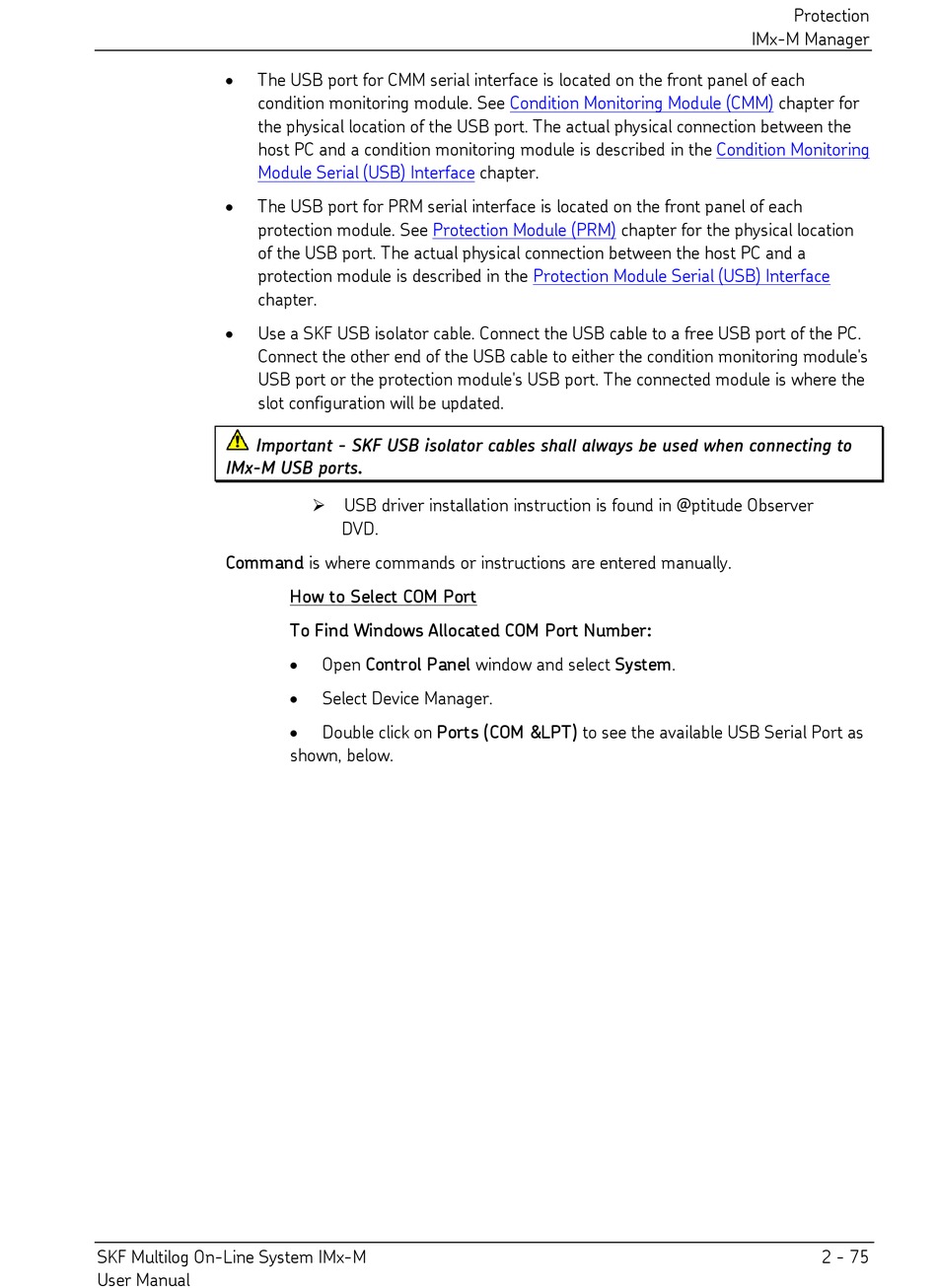

The USB port for CMM serial interface is located on the front panel of each
condition monitoring module. See
the physical location of the USB port. The actual physical connection between the
host PC and a condition monitoring module is described in the
Module Serial (USB) Interface

The USB port for PRM serial interface is located on the front panel of each
protection module. See
of the USB port. The actual physical connection between the host PC and a
protection module is described in the
chapter.

Use a SKF USB isolator cable. Connect the USB cable to a free USB port of the PC.
Connect the other end of the USB cable to either the condition monitoring module's
USB port or the protection module's USB port. The connected module is where the
slot configuration will be updated.
Important - SKF USB isolator cables shall always be used when connecting to
IMx-M USB ports.
Command is where commands or instructions are entered manually.
SKF Multilog On-Line System IMx-M
User Manual
Protection Module (PRM)
 USB driver installation instruction is found in @ptitude Observer
DVD.
How to Select COM Port
To Find Windows Allocated COM Port Number:

Open Control Panel window and select System.

Select Device Manager.

Double click on Ports (COM &LPT) to see the available USB Serial Port as
shown, below.
Condition Monitoring Module (CMM)
chapter.
chapter for the physical location
Protection Module Serial (USB) Interface
Protection
IMx-M Manager
chapter for
Condition Monitoring
2 - 75
