Important - Do not rearm the slot while the configuration file is still
downloading. This can result in an invalid configuration, forcing the system to
indicate a circuit fault condition.
Important - Rack/slot must be set in slot disarm mode before the protection
configuration synchronization procedure takes place. Be sure to read "Disarm"
chapter thoroughly and understand it.
Important - Do not turn off the power during the protection configuration
update process.
Important - If the configuration of a slot is to be updated and the slot is
disarmed through a digital input, it is strongly ADVISED to make sure that the
same digital input is configured as slot disarm input. Failing to do so will lead to
unintentionally arming of the slot when the slot restarts and the new configuration
is activated.
Important - See also chapter
Status
SKF Multilog On-Line System IMx-M
User Manual

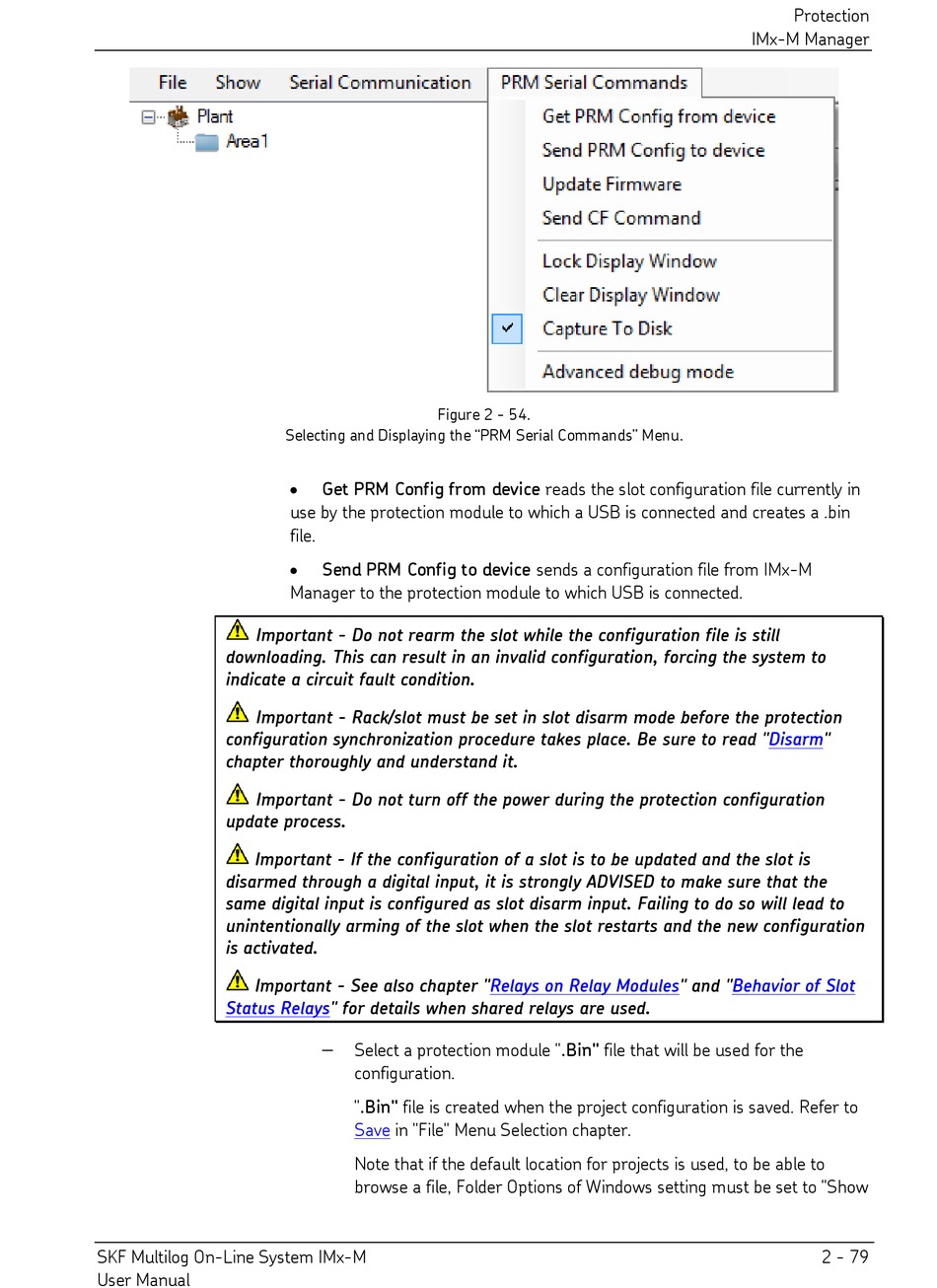

Figure 2 - 54.
Selecting and Displaying the "PRM Serial Commands" Menu.

Get PRM Config from device reads the slot configuration file currently in
use by the protection module to which a USB is connected and creates a .bin
file.

Send PRM Config to device sends a configuration file from IMx-M
Manager to the protection module to which USB is connected.
Relays" for details when shared relays are used.
–
Select a protection module ".Bin" file that will be used for the
configuration.
".Bin" file is created when the project configuration is saved. Refer to
Save in "File" Menu Selection chapter.
Note that if the default location for projects is used, to be able to
browse a file, Folder Options of Windows setting must be set to "Show
"Relays on Relay Modules" and
Protection
IMx-M Manager
"Behavior of Slot
2 - 79
