Protection
Protection Module Configuration with IMx-M Manager
Type: Currently permitted analog channel types are the following.
2 - 108

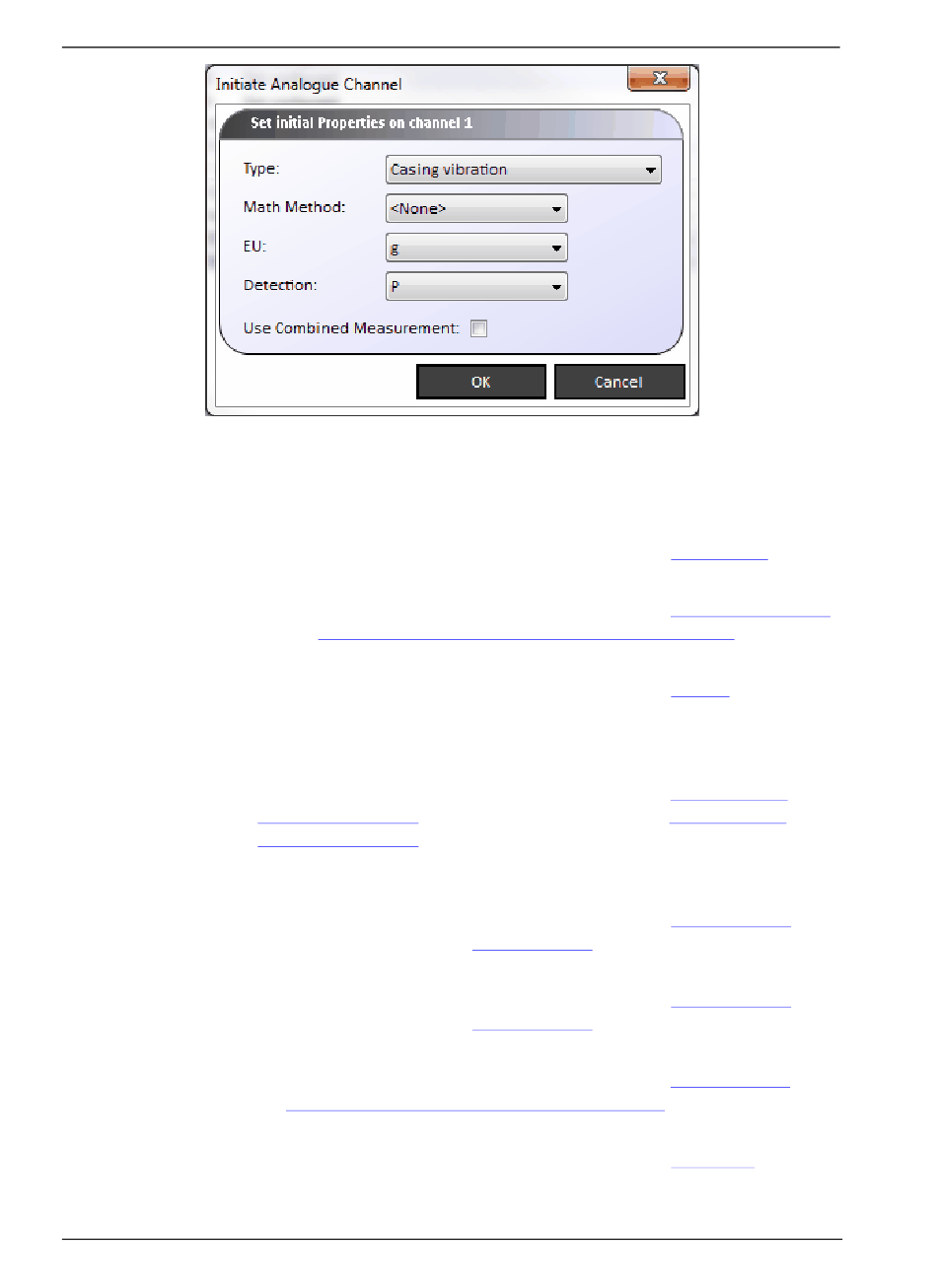

Figure 2 - 85.
Initiating an Analog Channel.
Temperature applies to channels 9 to 16 only.
For detailed information refer to the measurement type Temperature.
Radial shaft vibration type is available on all channels.
For detailed information refer to the measurement type
and the configuration example of a Radial shaft vibration
Position type is available on all channels.
For detailed information refer to the measurement type Position.
Complementary Differential Expansion uses signals from two channels to
extend measurement range. This type has to be one of a combined
measurements.
For detailed information refer to the measurement type
Differential Expansion and the configuration example of
Differential Expansion.
Piston Rod Drop (Average Mode) measures the displacement of the piston
rod over the entire cycle. This type is available on all channels.
For detailed information refer to the measurement type
the configuration example of
Piston Rod Drop (Triggered Mode) type is available on all channels.
For detailed information refer to the measurement type
the configuration example of
Casing vibration type is available on all channels.
For detailed information refer to the measurement type
the configuration example of a Casing vibration
Eccentricity type is available on all channels.
For detailed information refer to the measurement type Eccentricity.
Piston Rod Drop.
Piston Rod Drop.
channel.
SKF Multilog On-Line System IMx-M
Radial Shaft Vibration
channel.
Complementary
Complementary
Piston Rod Drop and
Piston Rod Drop and
Casing Vibration and
