Protection
Protection Module Configuration with IMx-M Manager

Adding an Area Node

Each plant node can contain any number of area nodes, with each area acting as a
container for the individual IMx-M racks.
To add a new area to the plant, simply right-click on the plant node, and select the
option Add Area.

Adding Rack, Slot and Relay Nodes

Each rack node acts as a container for the maximum four slots (CMM + PRM pairs) and
the maximum three relay modules that can be added.
To add a new rack to an area, simply right-click on the area node and then select the
option Add Rack from the pop-up menu. This will launch the dialog as shown in the
figure below:
2 - 96

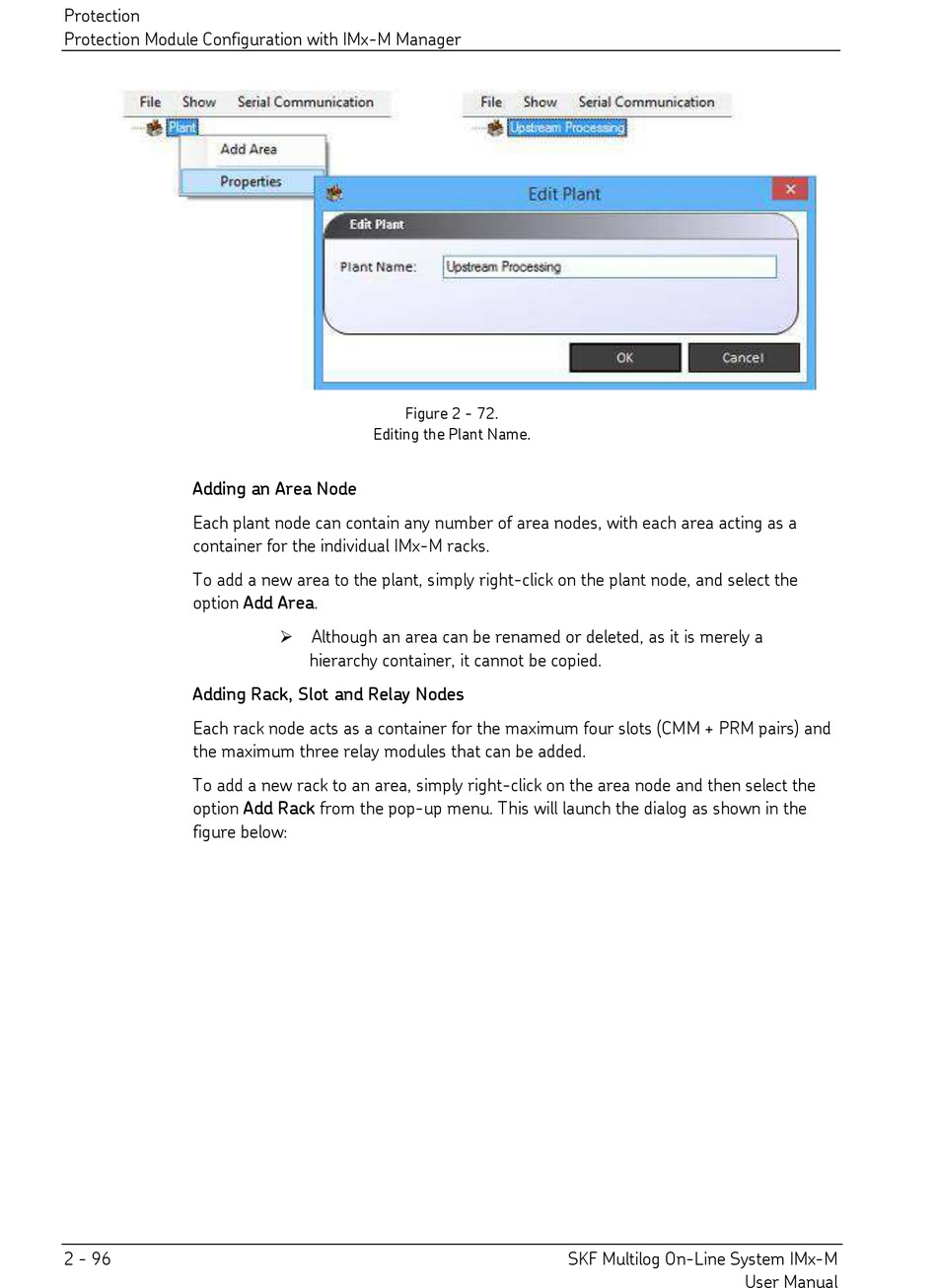

Figure 2 - 72.
Editing the Plant Name.
 Although an area can be renamed or deleted, as it is merely a
hierarchy container, it cannot be copied.
