SKF Multilog On-Line System IMx-M
User Manual
Protection Module Configuration with IMx-M Manager

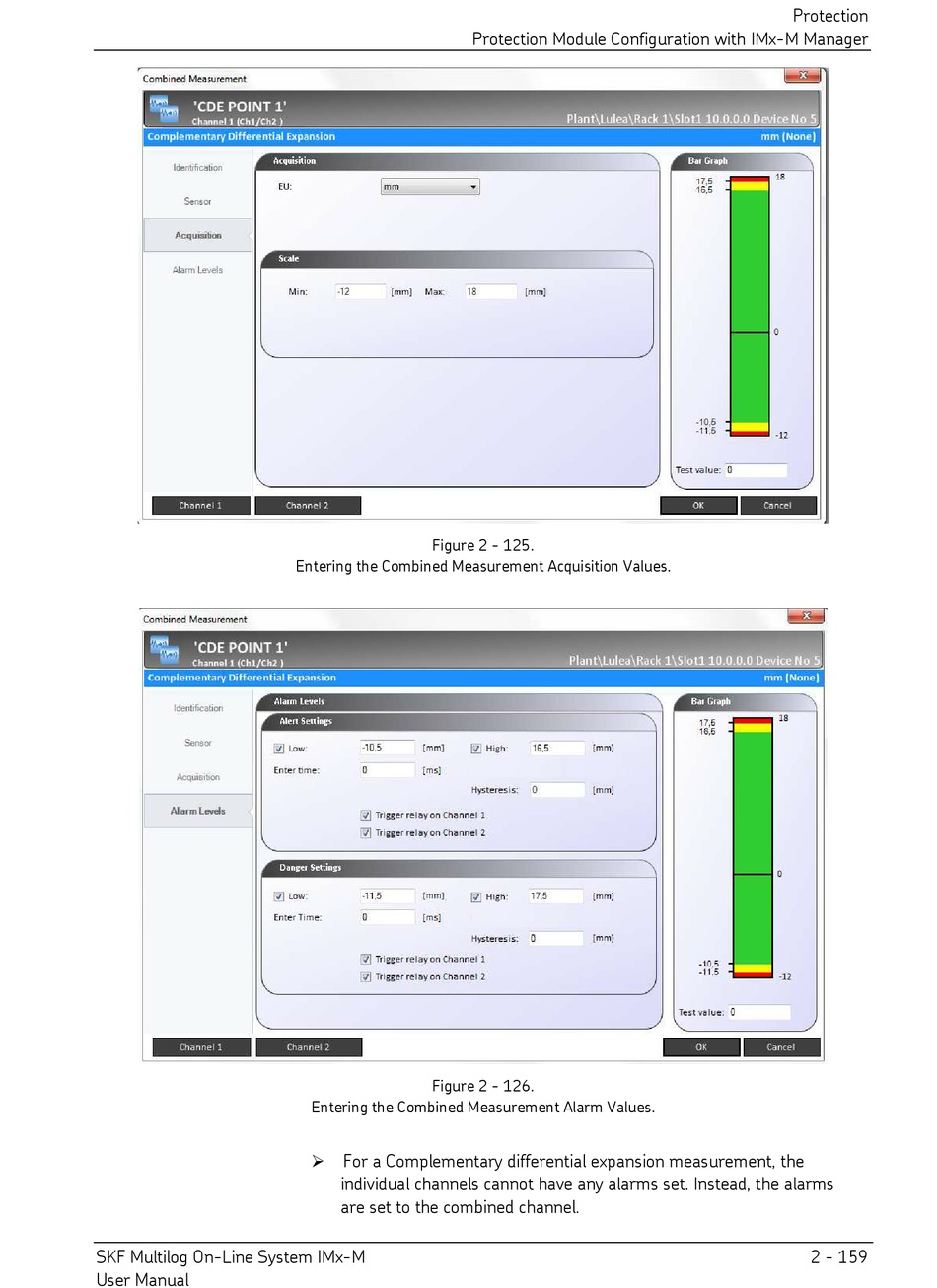

Figure 2 - 125.
Entering the Combined Measurement Acquisition Values.
Figure 2 - 126.
Entering the Combined Measurement Alarm Values.
For a Complementary differential expansion measurement, the
individual channels cannot have any alarms set. Instead, the alarms
are set to the combined channel.
Protection
2 - 159
