4-20 mA Out

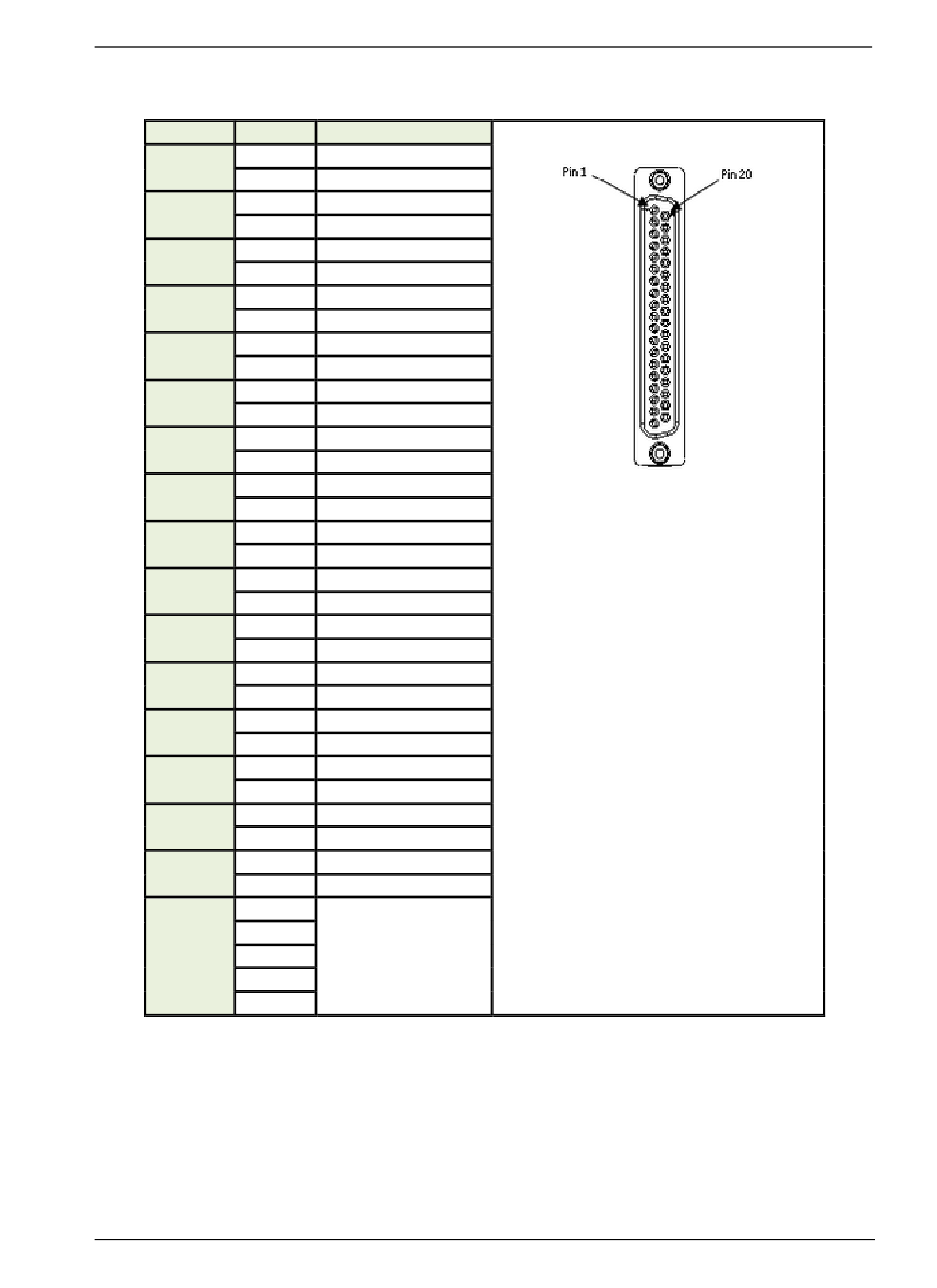

Table 7-6: CMM + PRM slot connections for 4-20 mA out.
Output Pin
1 1
20
2 2
21
3 3
22
4 4
23
5 5
24
6 6
25
7 7
26
8 8
27
9 9
28
10 10
29
11 11
30
12 12
31
13 13
32
14 14
33
15 15
34
16 16
35
17
36
- 18
37
19
SKF Multilog On-Line System IMx-M
User Manual
4–20 mA Out ch
4–20mA Out 1+
4–20mA Out 1-
4–20mA Out 2+
4–20mA Out 2-
4–20mA Out 3+
4–20mA Out 3-
4–20mA Out 4+
4–20mA Out 4-
4–20mA Out 5+
4–20mA Out 5-
4–20mA Out 6+
4–20mA Out 6-
4–20mA Out 7+
4–20mA Out 7-
4–20mA Out 8+
4–20mA Out 8-
4–20mA Out 9+
4–20mA Out 9-
4–20mA Out 10+
4–20mA Out 10-
4–20mA Out 11+
4–20mA Out 11-
4–20mA Out 12+
4–20mA Out 12-
4–20mA Out 13+
4–20mA Out 13-
4–20mA Out 14+
4–20mA Out 14-
4–20mA Out 15+
4–20mA Out 15-
4–20mA Out 16+
4–20mA Out 16-
NC
Drawings and Connections
4–20 mA D-Sub (37p)
View from rear of the rack
Technical Data
7 - 17
