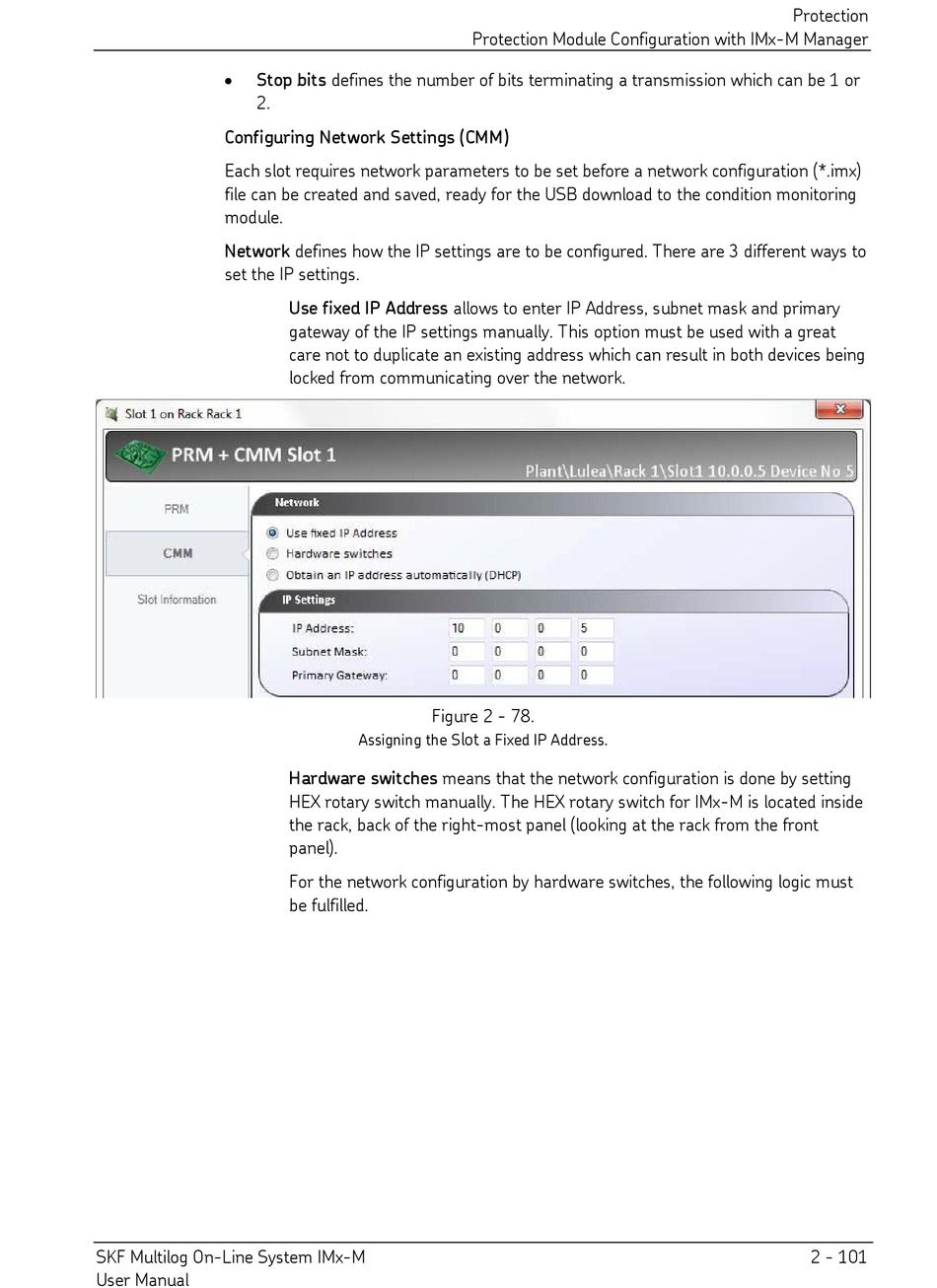

SKF Multilog On-Line System IMx-M User Manual page 121


Stop bits defines the number of bits terminating a transmission which can be 1 or
2.
Configuring Network Settings (CMM)
Each slot requires network parameters to be set before a network configuration (*.imx)
file can be created and saved, ready for the USB download to the condition monitoring
module.
Network defines how the IP settings are to be configured. There are 3 different ways to
set the IP settings.
SKF Multilog On-Line System IMx-M
User Manual
Use fixed IP Address allows to enter IP Address, subnet mask and primary
gateway of the IP settings manually. This option must be used with a great
care not to duplicate an existing address which can result in both devices being
locked from communicating over the network.
Figure 2 - 78.
lot
Assigning the S
Hardware switches means that the network configuration is done by setting
HEX rotary switch manually. The HEX rotary switch for IMx-M is located inside
the rack, back of the right-most panel (looking at the rack from the front
panel).
For the network configuration by hardware switches, the following logic must
be fulfilled.
Protection Module Configuration with IMx-M Manager
a Fixed IP Address.
