Protection
Protection Module Configuration with IMx-M Manager

Enter Time: represent the period for a channel to have exceeded an alarm level
before an actual alarm condition is raised. Alert/Danger ON trigger will be delayed
by this Enter Time.

Trip Multiply Factor: use this value to temporarily increase the already set alert
and danger levels. The entered factor must be between the values of 1 and 25,
with a single decimal being allowed (i.e. 1.5).

The activation of trip multiply at the slot is done via:
–
–
–

The activation of trip multiply at the channel level is done via:
–
–
2 - 124

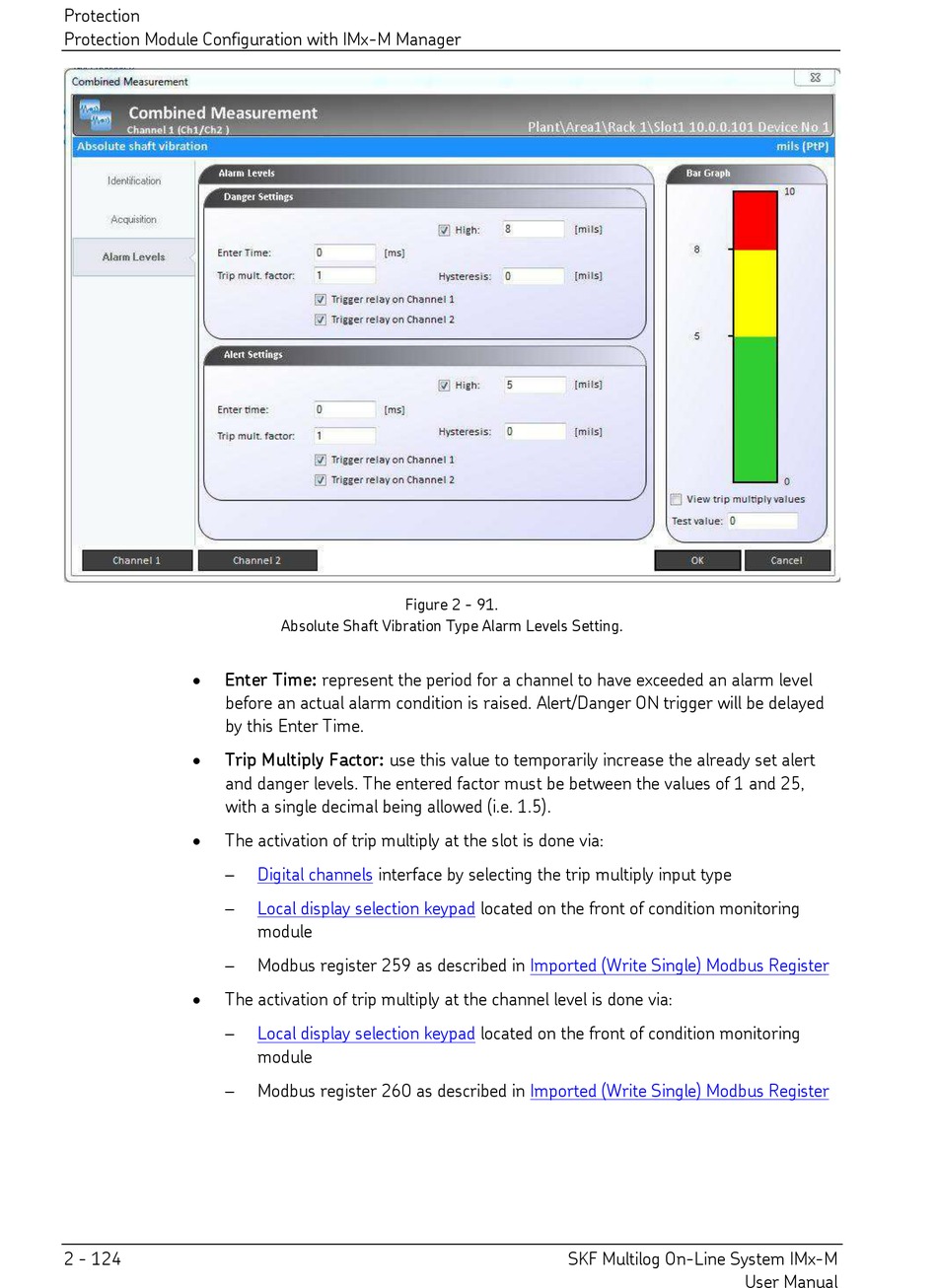

Figure 2 - 91.
Absolute Shaft Vibration Type Alarm Levels Setting.
Digital channels interface by selecting the trip multiply input type
Local display selection keypad
module
Modbus register 259 as described in
Local display selection keypad
module
Modbus register 260 as described in
located on the front of condition monitoring
Imported (Write Single) Modbus Register
located on the front of condition monitoring
Imported (Write Single) Modbus Register
