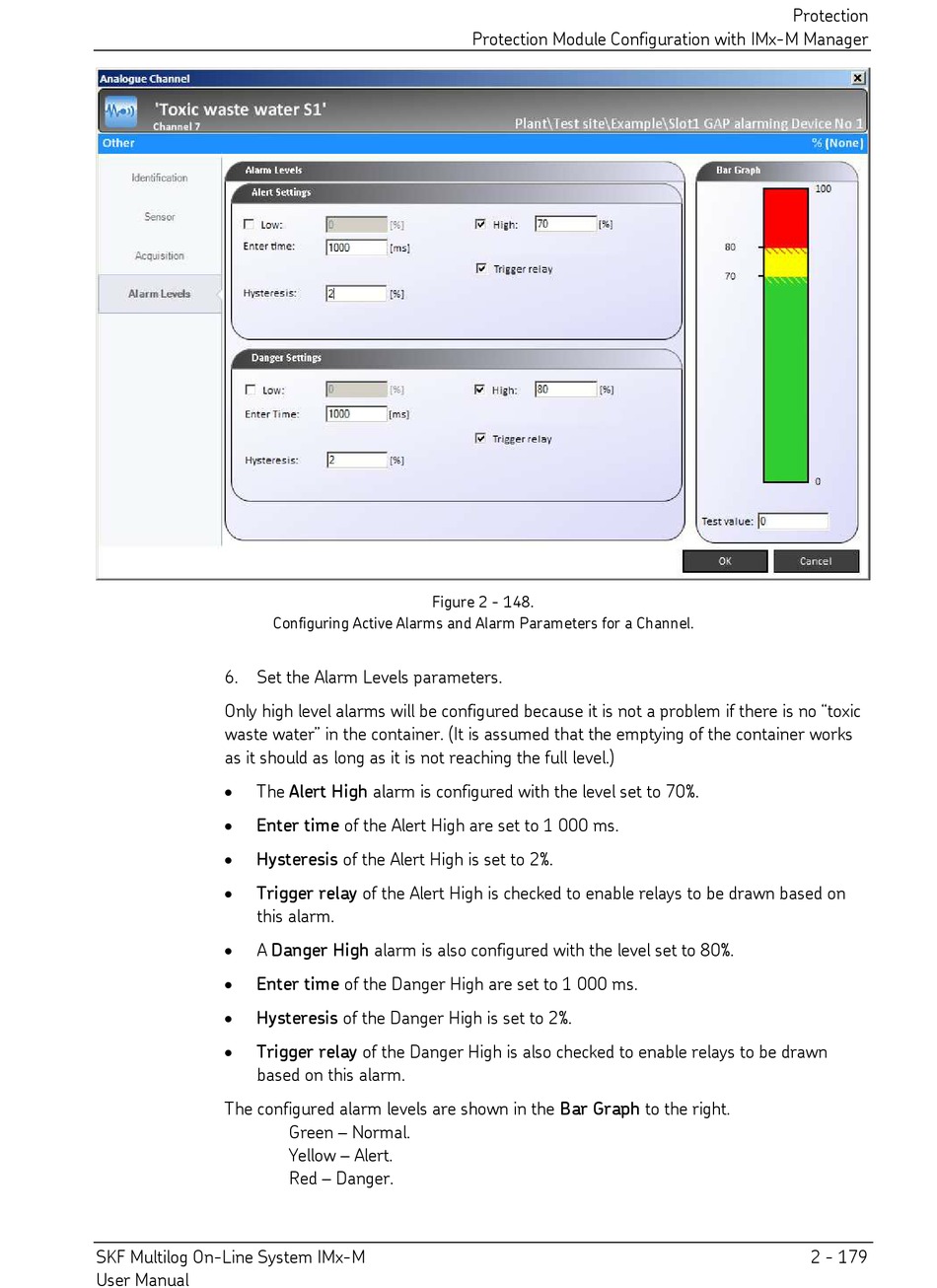

Configuring Active Alarms and Alarm Parameters for a Channel.
6. Set the Alarm Levels parameters.
Only high level alarms will be configured because it is not a problem if there is no "toxic
waste water" in the container. (It is assumed that the emptying of the container works
as it should as long as it is not reaching the full level.)
The Alert High alarm is configured with the level set to 70%.
Enter time of the Alert High are set to 1 000 ms.
Hysteresis of the Alert High is set to 2%.
Trigger relay of the Alert High is checked to enable relays to be drawn based on
this alarm.
A Danger High alarm is also configured with the level set to 80%.
Enter time of the Danger High are set to 1 000 ms.
Hysteresis of the Danger High is set to 2%.
Trigger relay of the Danger High is also checked to enable relays to be drawn
based on this alarm.
The configured alarm levels are shown in the Bar Graph to the right.
SKF Multilog On-Line System IMx-M
User Manual
Figure 2 - 148.
Green – Normal.
Yellow – Alert.
Red – Danger.
Protection Module Configuration with IMx-M Manager
Protection
2 - 179
