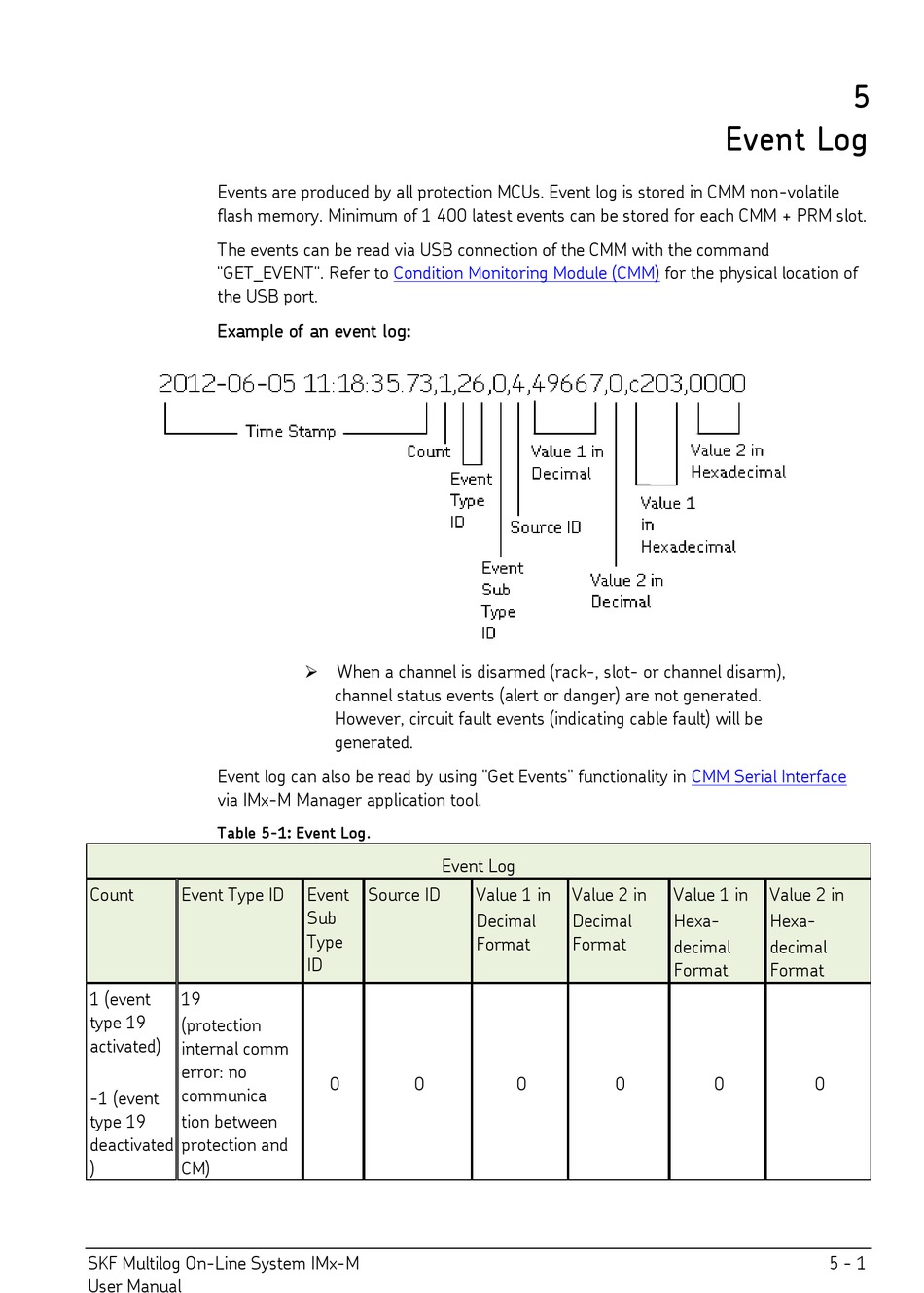

Events are produced by all protection MCUs. Event log is stored in CMM non-volatile
flash memory. Minimum of 1 400 latest events can be stored for each CMM + PRM slot.
The events can be read via USB connection of the CMM with the command
"GET_EVENT". Refer to
the USB port.
Example of an event log:
Event log can also be read by using "Get Events" functionality in
via IMx-M Manager application tool.
Table 5-1: Event Log.
Count Event Type ID
1 (event 19
type 19
(protection
activated)
internal comm
error: no
communica
-1 (event
type 19 tion between
deactivated protection and
) CM)
SKF Multilog On-Line System IMx-M
User Manual
Condition Monitoring Module (CMM)
 When a channel is disarmed (rack-, slot- or channel disarm),
channel status events (alert or danger) are not generated.
However, circuit fault events (indicating cable fault) will be
generated.

Event Log

Event Source ID Value 1 in
Sub
Decimal
Type
Format
ID
0 0
for the physical location of
Value 2 in Value 1 in
Decimal Hexa-
Format
decimal
Format
0 0
5
Event Log
CMM Serial Interface
Value 2 in
Hexa-
decimal
Format
0 0
5 - 1
