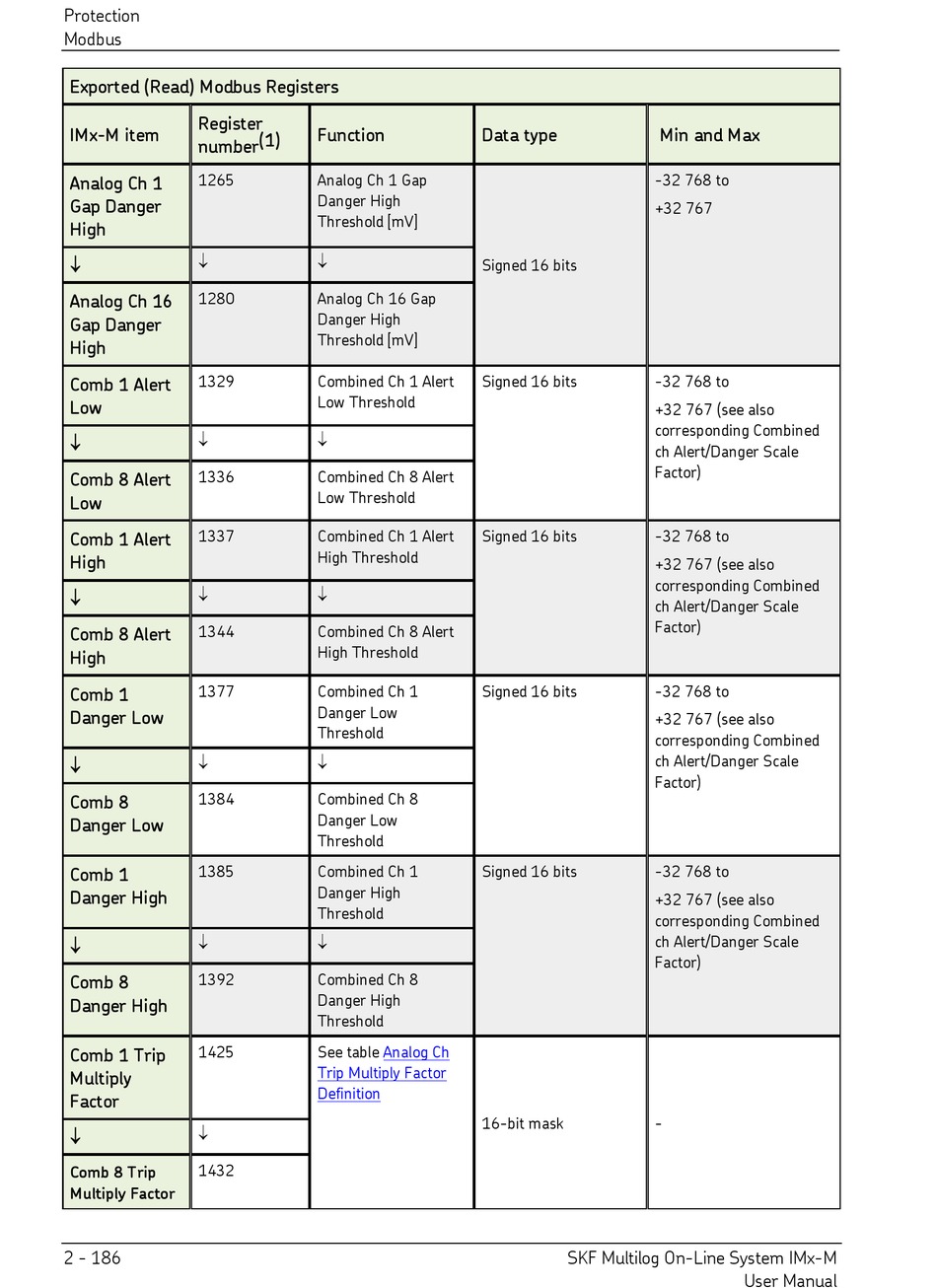

Protection
Modbus
Exported (Read) Modbus Registers
Register
IMx-M item
number (1)
1265
Analog Ch 1
Gap Danger
High
 
1280
Analog Ch 16
Gap Danger
High
1329
Comb 1 Alert
Low
 
1336
Comb 8 Alert
Low
1337
Comb 1 Alert
High
 
1344
Comb 8 Alert
High
1377
Comb 1
Danger Low
 
1384
Comb 8
Danger Low
1385
Comb 1
Danger High
 
1392
Comb 8
Danger High
1425
Comb 1 Trip
Multiply
Factor
 
1432
Comb 8 Trip
Multiply Factor
2 - 186
Function Data type
Analog Ch 1 Gap
Danger High
Threshold [mV]

Signed 16 bits
Analog Ch 16 Gap
Danger High
Threshold [mV]
Combined Ch 1 Alert Signed 16 bits
Low Threshold

Combined Ch 8 Alert
Low Threshold
Combined Ch 1 Alert Signed 16 bits
High Threshold

Combined Ch 8 Alert
High Threshold
Combined Ch 1 Signed 16 bits
Danger Low
Threshold

Combined Ch 8
Danger Low
Threshold
Combined Ch 1 Signed 16 bits
Danger High
Threshold

Combined Ch 8
Danger High
Threshold
See table Analog Ch
Trip Multiply Factor
Definition
16-bit mask
Min and Max
-32 768 to
+32 767
-32 768 to
+32 767 (see also
corresponding Combined
ch Alert/Danger Scale
Factor)
-32 768 to
+32 767 (see also
corresponding Combined
ch Alert/Danger Scale
Factor)
-32 768 to
+32 767 (see also
corresponding Combined
ch Alert/Danger Scale
Factor)
-32 768 to
+32 767 (see also
corresponding Combined
ch Alert/Danger Scale
Factor)
-
