Protection
Protection Module Configuration with IMx-M Manager
1. To begin the configuration of an analog channel for this kind of measurement and
alarming, double click on a not configured analog channel which will open up the
initiation dialog box.
2. Set the initiation parameters as the following and press OK.

Type to Other

Engineering Unit (EU) to %

Sensitivity field to a mA (4-20 mA sensor)
Note that type Other, based on a 4-20 mA sensor will require appropriate hardware
configuration (DIP switch settings for 4-20 mA source), refer
section.
2 - 174

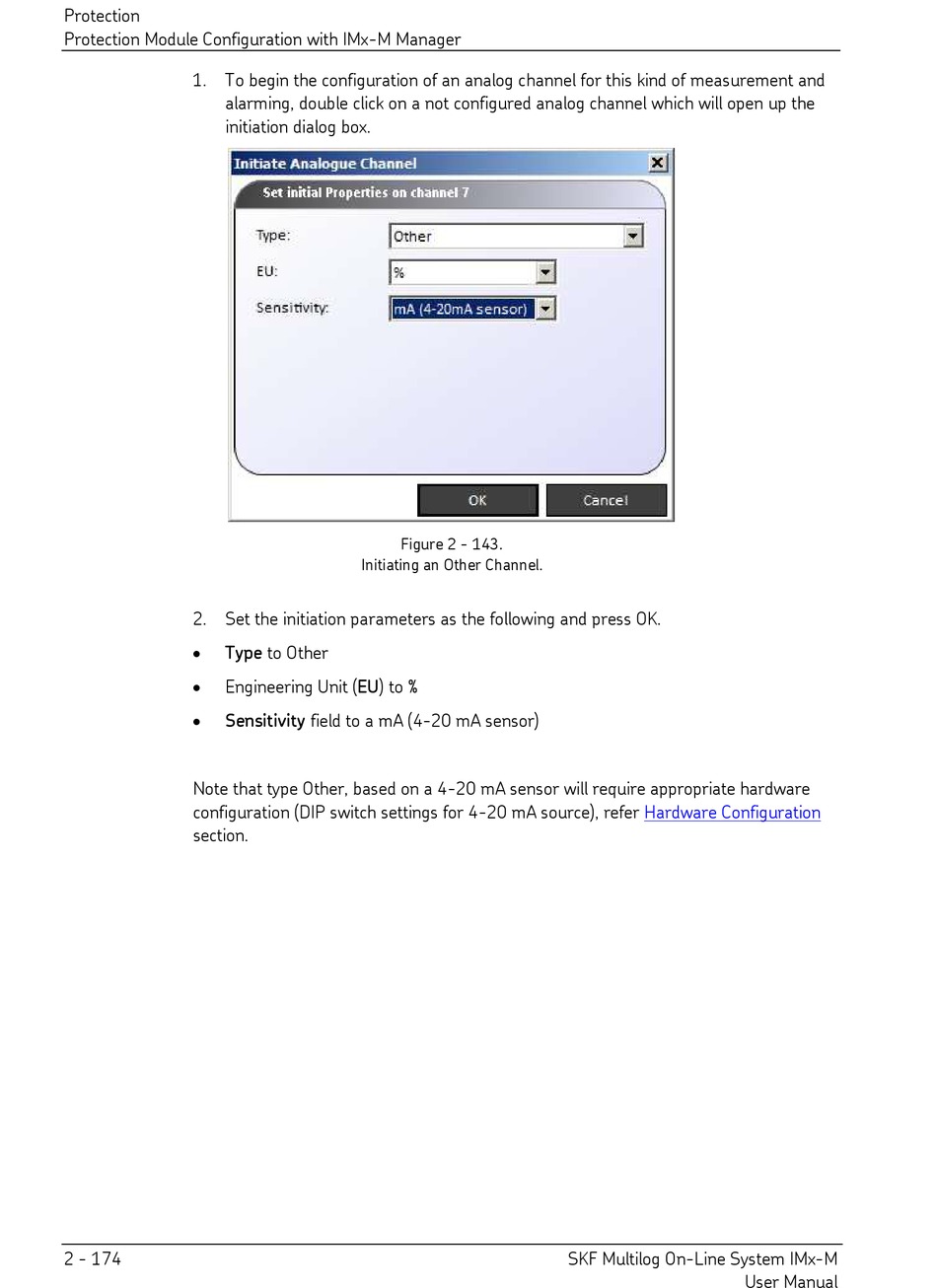

Figure 2 - 143.
Initiating an Other Channel.
Hardware Configuration
