Installation
A 19" Cabinet Installed with Two IMx-M Racks and Cooling Devices.

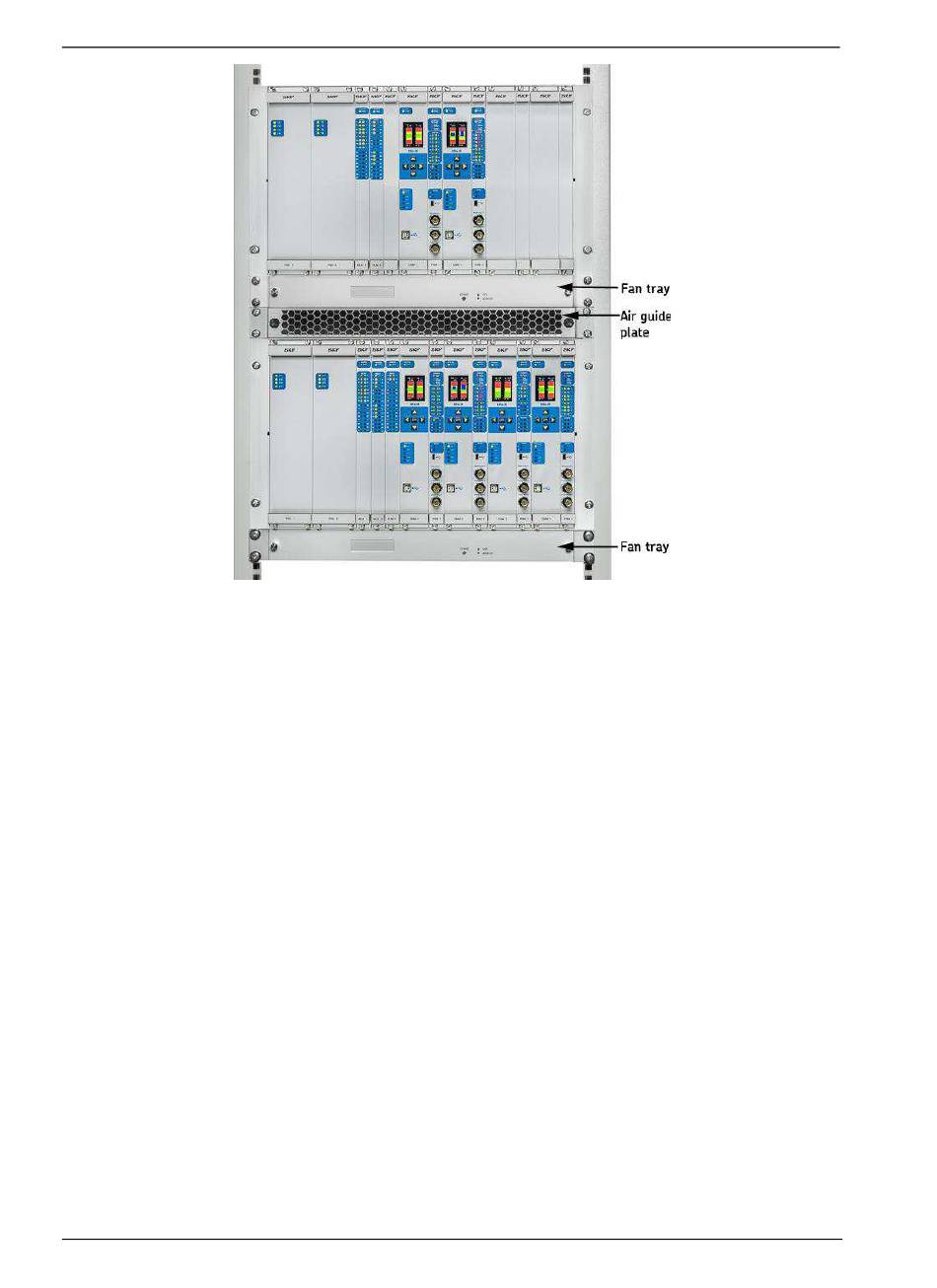

The following diagram shows two IMx-M racks installed in a 19" cabinet with two fan
trays (one for each rack) and an air guide plate showing diverted airflow.
4 - 4
Figure 4 - 2.
SKF Multilog On-Line System IMx-M
User Manual
