Protection
IMx-M Manager
Perform the following steps in the given order:
1. Start by pressing "Begin Acceptance Test". This will automatically start with analog
channels.
2. Open each tab and check the values of each channel
3. For each channel, set "Accepted" or "Not Accepted" in the AT result column.
4. Enter Acceptance Report Information which are required.
5. Press "Create Acceptance Test Report" to generate the report.
In this example, (11/14) means that 11 analog channels out of 14 configured channels
were checked and Acceptance Test results were set.
2 - 92

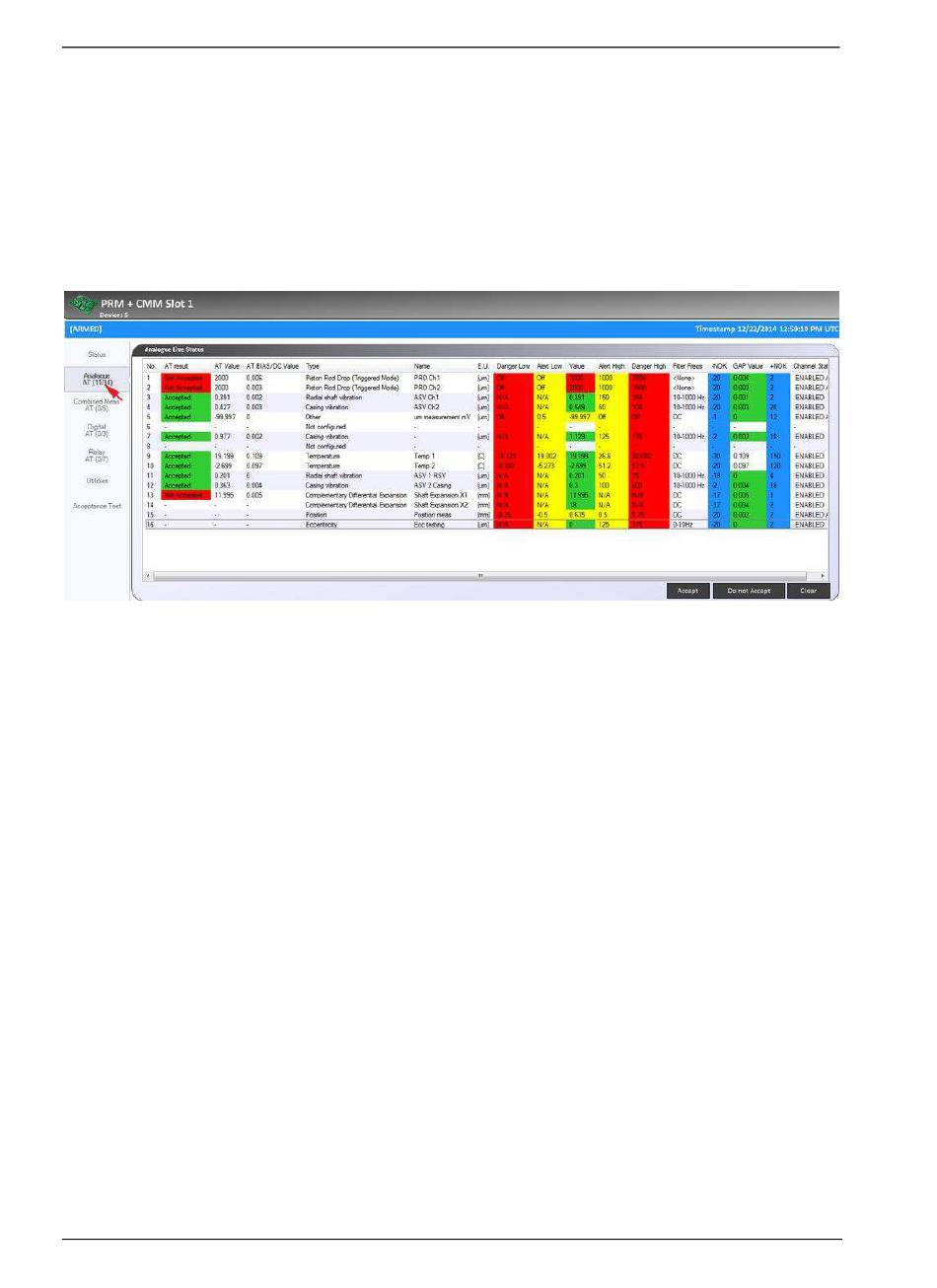

Figure 2 - 67.
Maintenance View - Acceptance Test for Analog Channels.
