Protection
Modbus

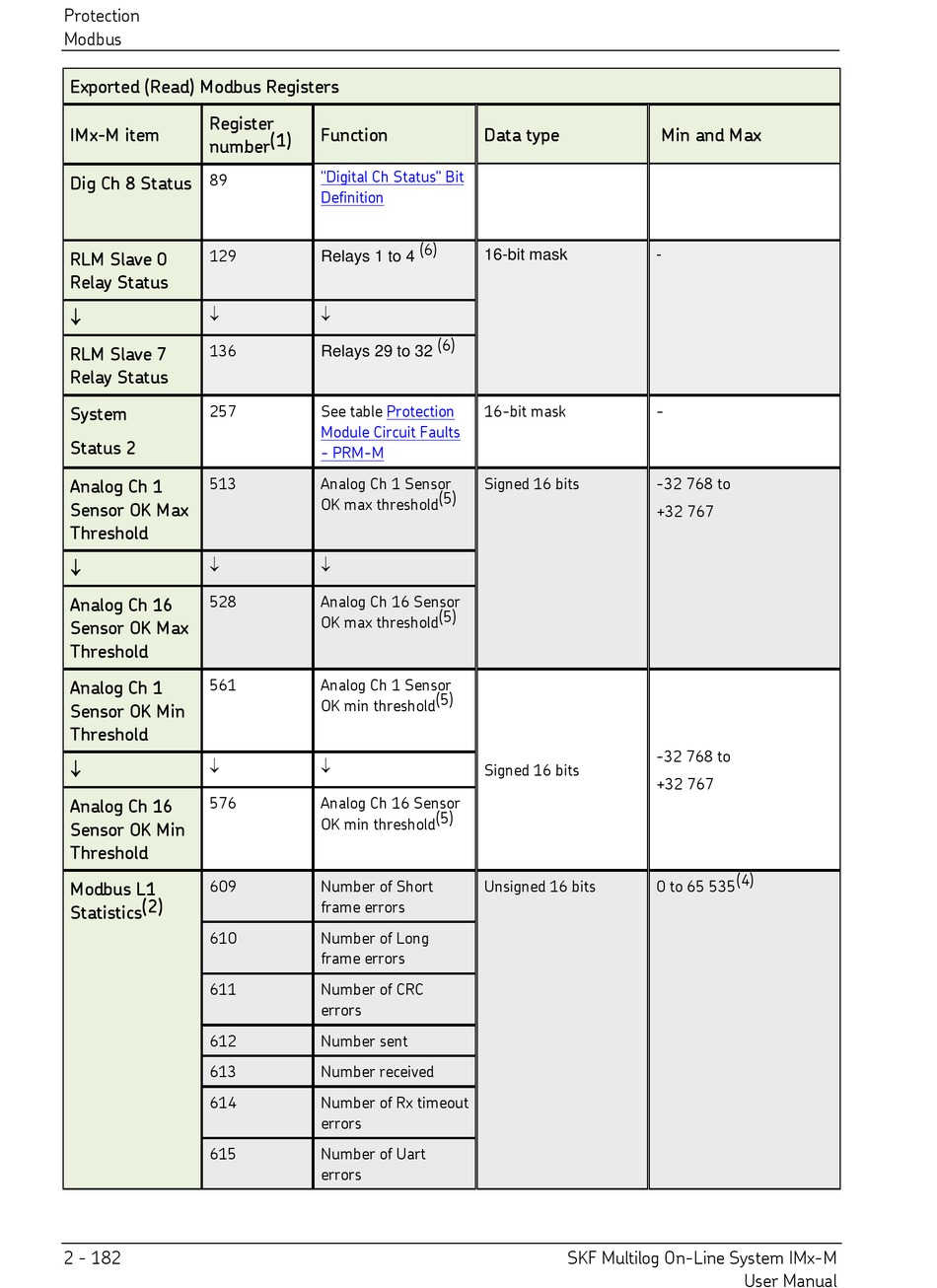

Exported (Read) Modbus Registers
Register
IMx-M item
number (1)
89
Dig Ch 8 Status
129
RLM Slave 0
Relay Status
 
136
RLM Slave 7
Relay Status
257
System
Status 2
513
Analog Ch 1
Sensor OK Max
Threshold
 
528
Analog Ch 16
Sensor OK Max
Threshold
561
Analog Ch 1
Sensor OK Min
Threshold
 
576
Analog Ch 16
Sensor OK Min
Threshold
609
Modbus L1
Statistics (2)
610
611
612
613
614
615
2 - 182
Function Data type
"Digital Ch Status" Bit
Definition
Relays 1 to 4 (6)
16-bit mask

Relays 29 to 32 (6)
See table Protection 16-bit mask
Module Circuit Faults
- PRM-M
Analog Ch 1 Sensor Signed 16 bits
OK max threshold (5)

Analog Ch 16 Sensor
OK max threshold (5)
Analog Ch 1 Sensor
OK min threshold (5)

Signed 16 bits
Analog Ch 16 Sensor
OK min threshold (5)
Number of Short Unsigned 16 bits
frame errors
Number of Long
frame errors
Number of CRC
errors
Number sent
Number received
Number of Rx timeout
errors
Number of Uart
errors
Min and Max
-
-
-32 768 to
+32 767
-32 768 to
+32 767
0 to 65 535 (4)
