Protection
Protection Module Configuration with IMx-M Manager

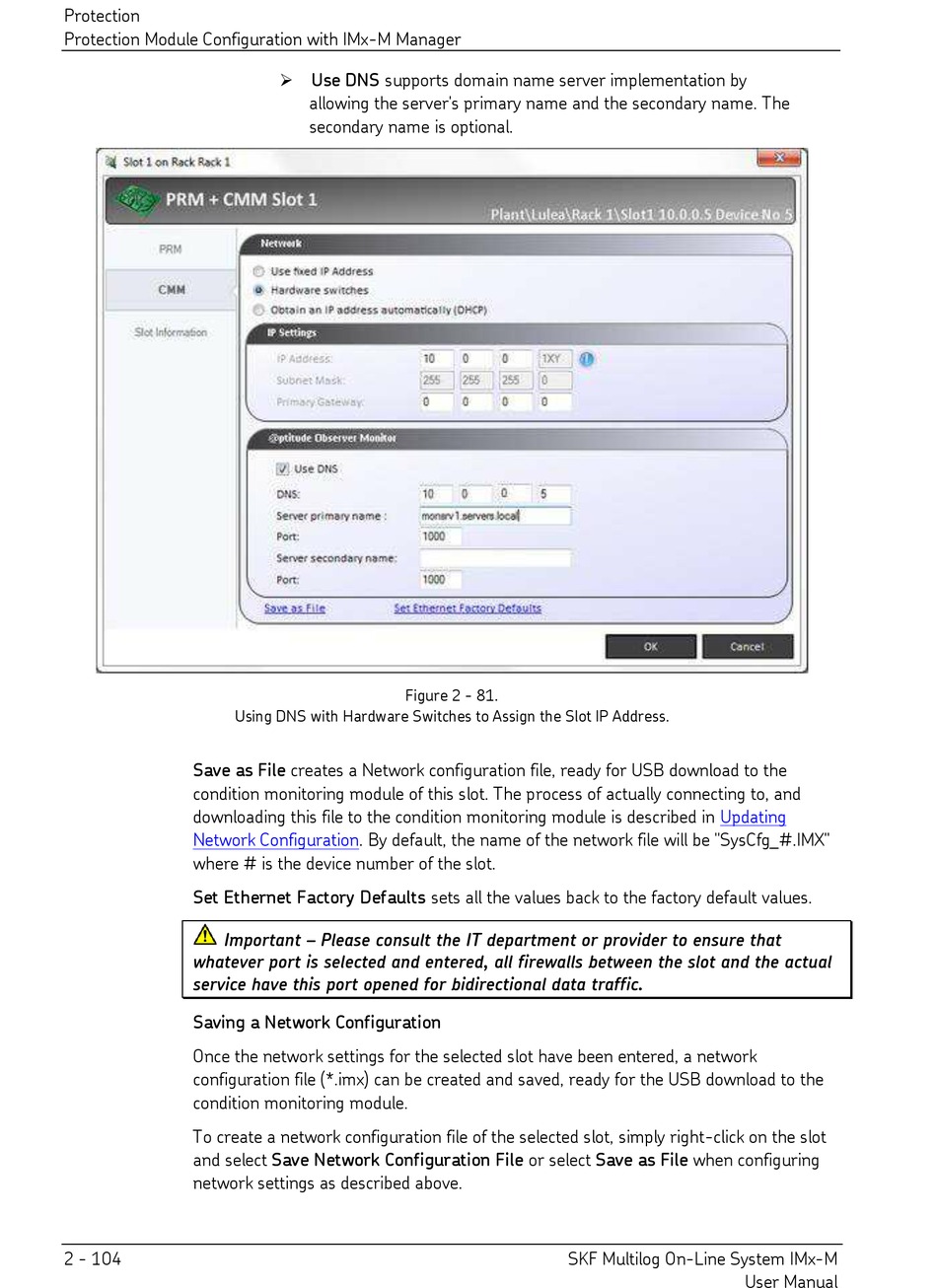

Using DNS with Hardware Switches to Assign the Slot IP Address.
Save as File creates a Network configuration file, ready for USB download to the
condition monitoring module of this slot. The process of actually connecting to, and
downloading this file to the condition monitoring module is described in
Network
where # is the device number of the slot.
Set Ethernet Factory Defaults sets all the values back to the factory default values.
Important – Please consult the IT department or provider to ensure that
whatever port is selected and entered, all firewalls between the slot and the actual
service have this port opened for bidirectional data traffic.

Saving a Network Configuration

Once the network settings for the selected slot have been entered, a network
configuration file (*.imx) can be created and saved, ready for the USB download to the
condition monitoring module.
To create a network configuration file of the selected slot, simply right-click on the slot
and select Save Network Configuration File or select Save as File when configuring
network settings as described above.
2 - 104
 Use DNS supports domain name server implementation by
allowing the server's primary name and the secondary name. The
secondary name is optional.
Figure 2 - 81.
Configuration. By default, the name of the network file will be "SysCfg_#.IMX"
Updating
SKF Multilog On-Line System IMx-M
User Manual
