Protection
Protection Module Configuration with IMx-M Manager

After pressing the button "Calculate and set Sensitivity and Zero Level" in the
Calculation Help box, new values are automatically calculated and set for the
Sensitivity and Zero level. The warning symbol disappears after the parameter
values are set.

The value of the Sensitivity is changed from 1 to 0.16 mA/% in order to give a
reading of 0% for 4mA and 100% for 20mA.

The Zero level is in this case unchanged from its default value.

The Sensor OK levels are configured to 1.8 and 22 mA to give a slight margin to
the sensor maximum output (20mA) and minimum output (4mA).
2 - 178

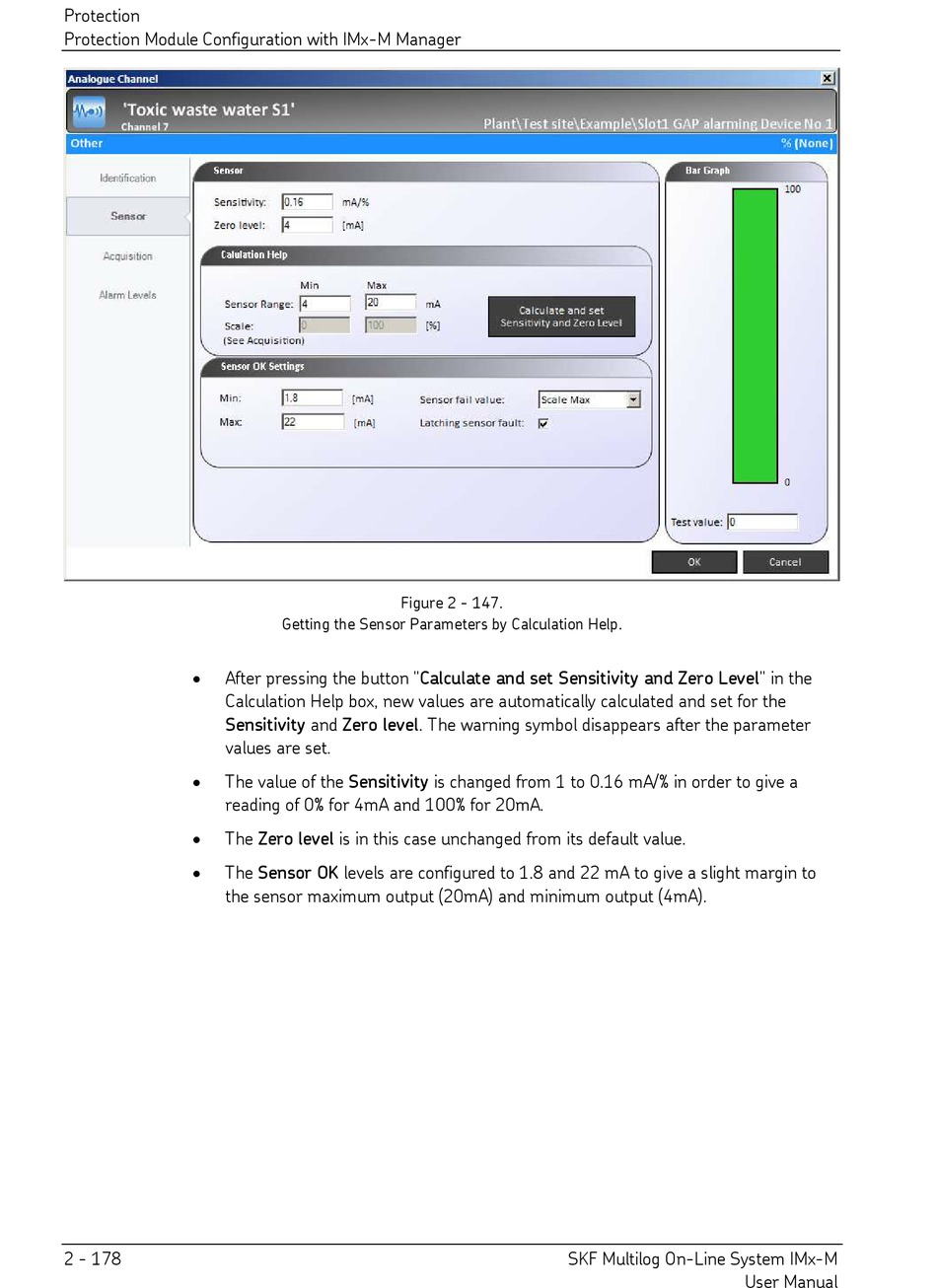

Figure 2 - 147.
Getting the Sensor Parameters by Calculation Help.
