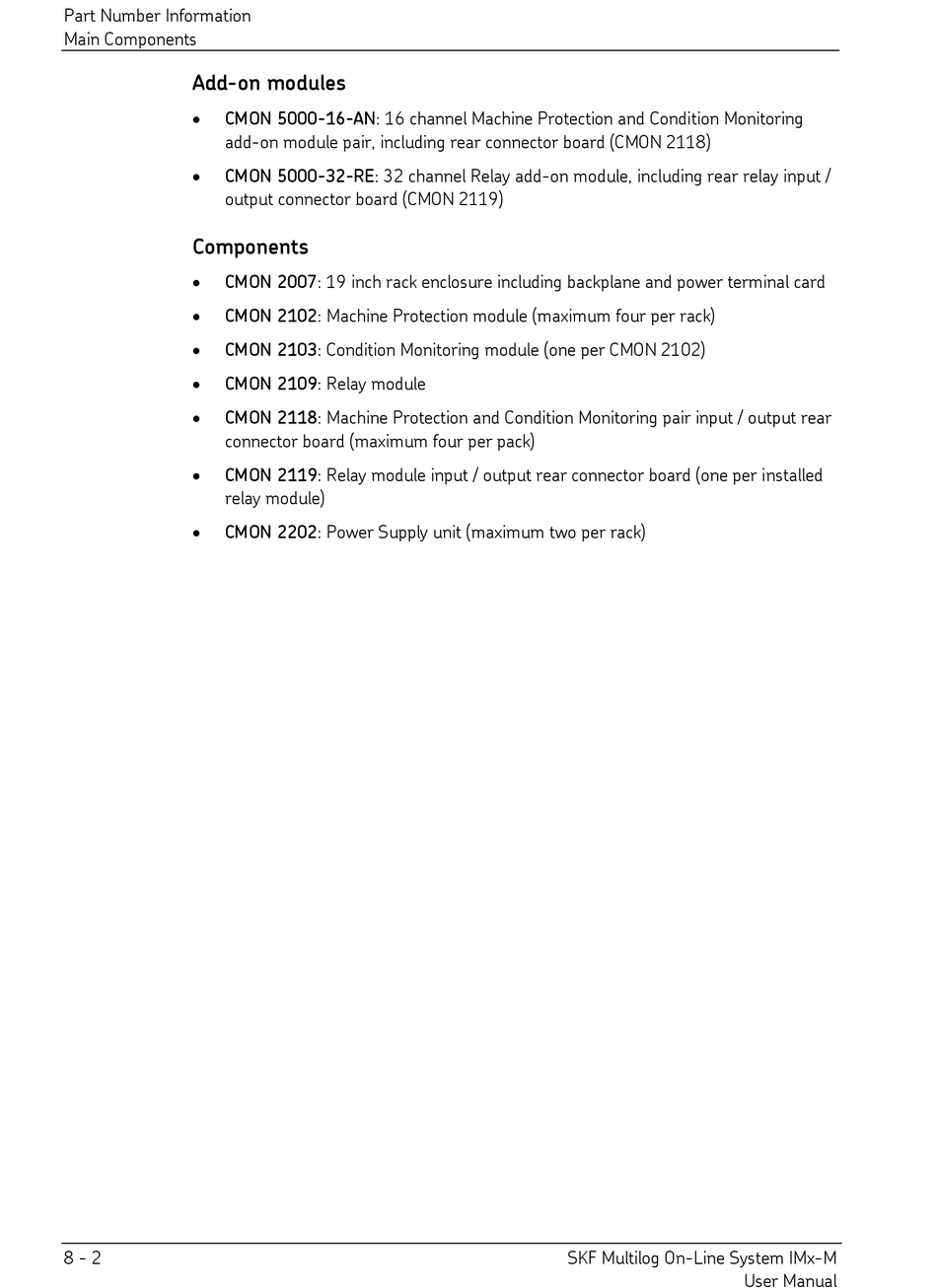

Part Number Information
Main Components

Add-on modules


CMON 5000-16-AN: 16 channel Machine Protection and Condition Monitoring
add-on module pair, including rear connector board (CMON 2118)

CMON 5000-32-RE: 32 channel Relay add-on module, including rear relay input /
output connector board (CMON 2119)

Components


CMON 2007: 19 inch rack enclosure including backplane and power terminal card

CMON 2102: Machine Protection module (maximum four per rack)

CMON 2103: Condition Monitoring module (one per CMON 2102)

CMON 2109: Relay module

CMON 2118: Machine Protection and Condition Monitoring pair input / output rear
connector board (maximum four per pack)

CMON 2119: Relay module input / output rear connector board (one per installed
relay module)

CMON 2202: Power Supply unit (maximum two per rack)
