Validating and Saving Protection Configurations

Validating and Saving are done on the Project level which include configurations of all
the installed slots.
To validate slot configurations, from the Main Menu, select File and Validate.
Assuming there are no issues, return to the main menu, select File and then Save. This
will either create a new, or update an existing master project file (*.mhf) and slot
configuration files (*.bin).
Detailed information is to be found in
chapter.

Sending Protection Configuration to Protection Module

Once the slot configuration has been validated and the configuration file (*.bin) has been
created and saved, this slot configuration file can be sent to a protection module.

Disarming a Slot

Before the slot configuration file can be sent, the slot must be disarmed. See
Disarm

Sending Protection Configuration to PRM

The procedure of sending the protection configuration (.bin) to protection module is
described in the
SKF Multilog On-Line System IMx-M
User Manual

Clear Display Window clears the output window.

Capture to Disk saves responses or messages generated by commands
and interfaces to a file. It will be located in the same directory as the currently
open project.

Advanced debug mode shall not be used. This is only for a critical fault
recovery situation where SKF Condition Monitoring Center must be contacted
first.

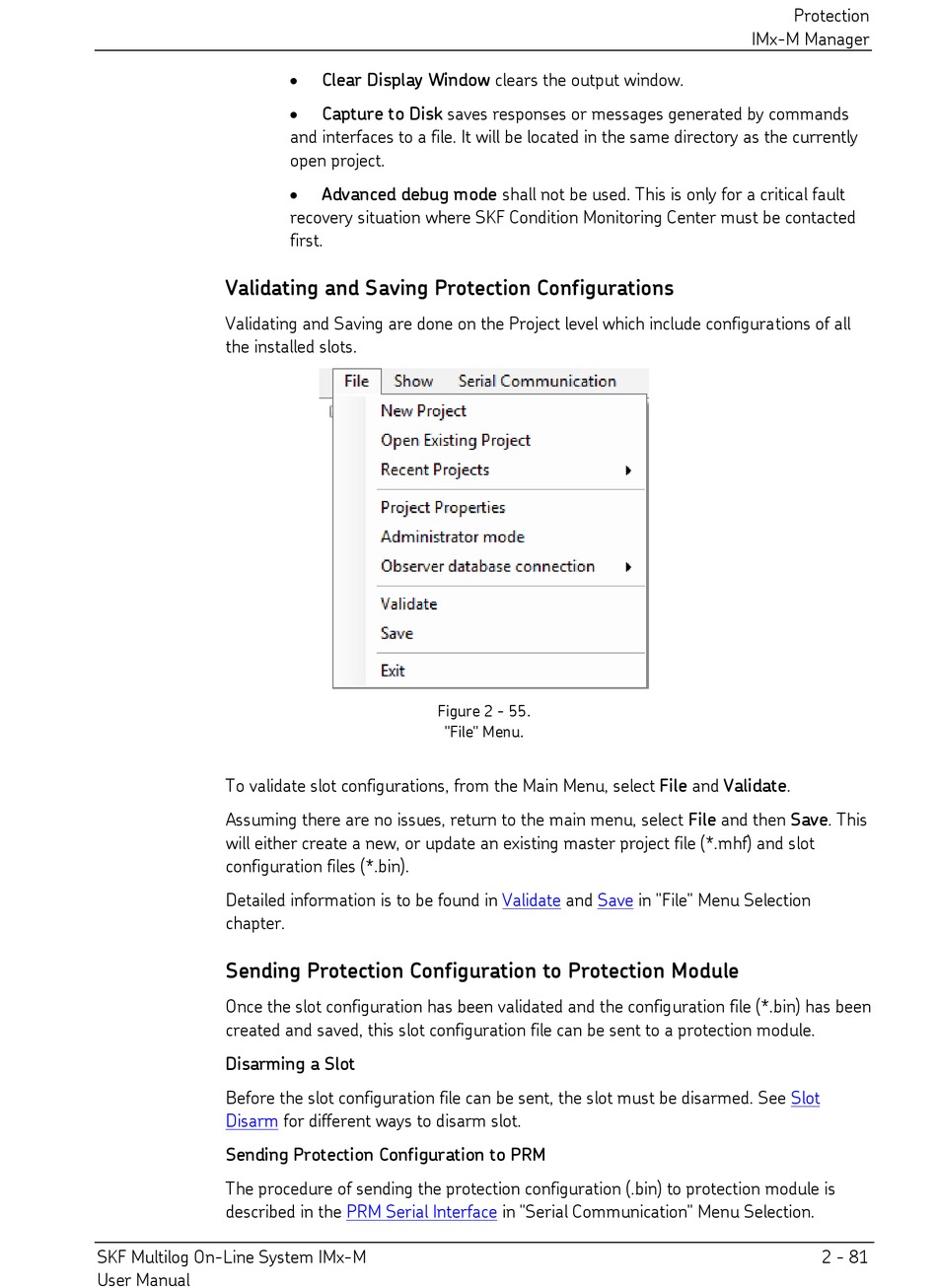

Figure 2 - 55.
"File" Menu.
for different ways to disarm slot.
PRM Serial Interface
Validate and Save in "File" Menu Selection
in "Serial Communication" Menu Selection.
