Protection
Protection Module Configuration with IMx-M Manager
In order to configure analog channels, select one channel at a time and click on Edit or
double click on a channel.
In order to delete analog channels, select one channel at a time and click on Delete or
right-click on a channel and select Delete.
Configuration of analog channels can be copied from other existing analog channels by
using Copy and Paste options. Copy and Paste options are also available with the right-
click on a channel.
Right-click on a channel or multiple channels and select Change in order to edit Alarm
Levels and Gap Alarm Levels (if applicable) as shown below.

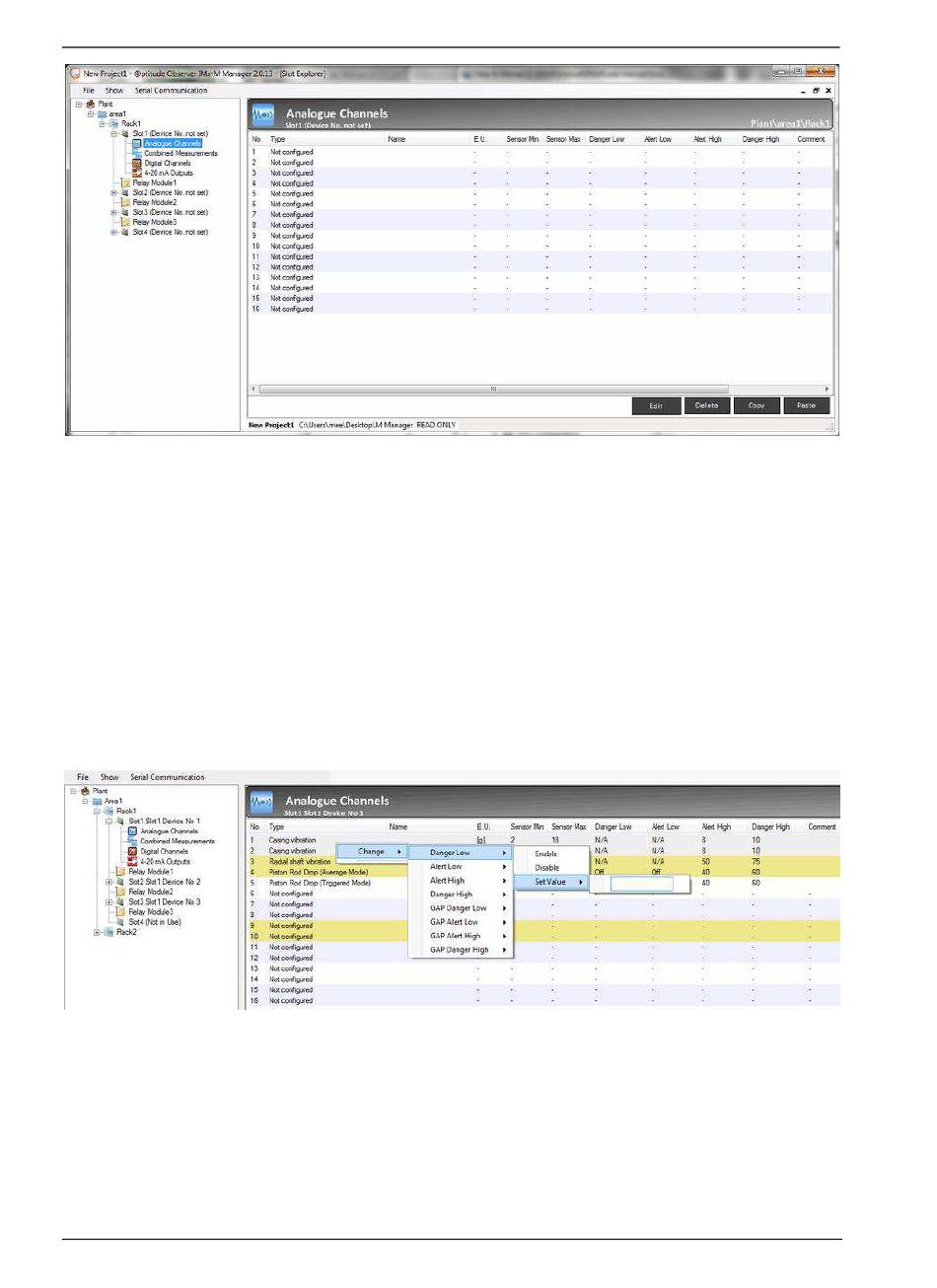

Example of IMx-M Manager Analog Multi Channel Configuration.
Multiple channels are selected by holding the Ctrl button.
The entered Set Value will be updated for all the selected channels.
2 - 106
Figure 2 - 83.
Example of IMx-M Manager Analog Channels List.
Figure 2 - 84.
