SKF Multilog On-Line System IMx-M User Manual page 235

Hardware
Hardware Configuration
Bit 3 - DIP B (not
shown) This switches
the gain of the
channel:
Set/ON: 100
OFF: 0,99

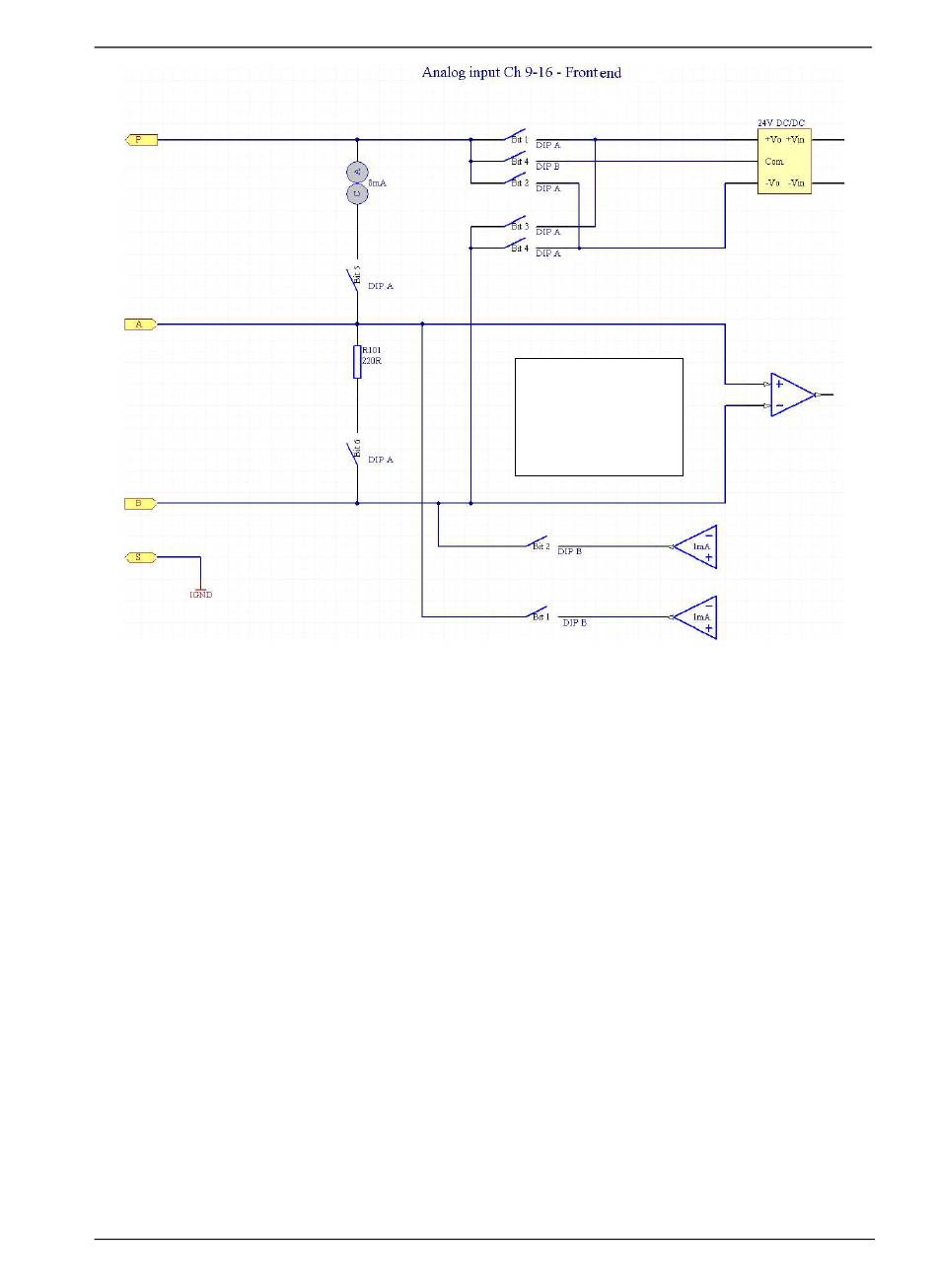

Figure 4 - 9.
Analog Input Channel 9-16 Front End.
SKF Multilog On-Line System IMx-M 4 - 17
User Manual
