Hardware
Hardware Configuration
The pinouts of 4-20 mA 37-Pin D-sub are listed in
Slot Connections chapter.
Important - The usage of 4-20 mA Outputs is only for monitoring purposes.
Use relay outputs for safety alert/danger triggering.

Protection Module Serial (USB) Interface

Serial (USB) interface on a protection module may be used to transfer the protection
firmware (*.a48) and/or configuration file (*.bin) created via
to a protection module slot wise.
The USB port for the protection configuration is located on the front panel of each
protection module. See
for the physical location.
Selecting the correct Mini-USB Cable
Ensure that the correct (isolated) Mini-USB cable is selected for use. Do not use an
ordinary Mini-USB cable.
Establishing a Connection between Host PC and a Protection Module
Connect a Mini-USB cable between the Host PC and the protection module as shown in
the figure below:
4 - 26

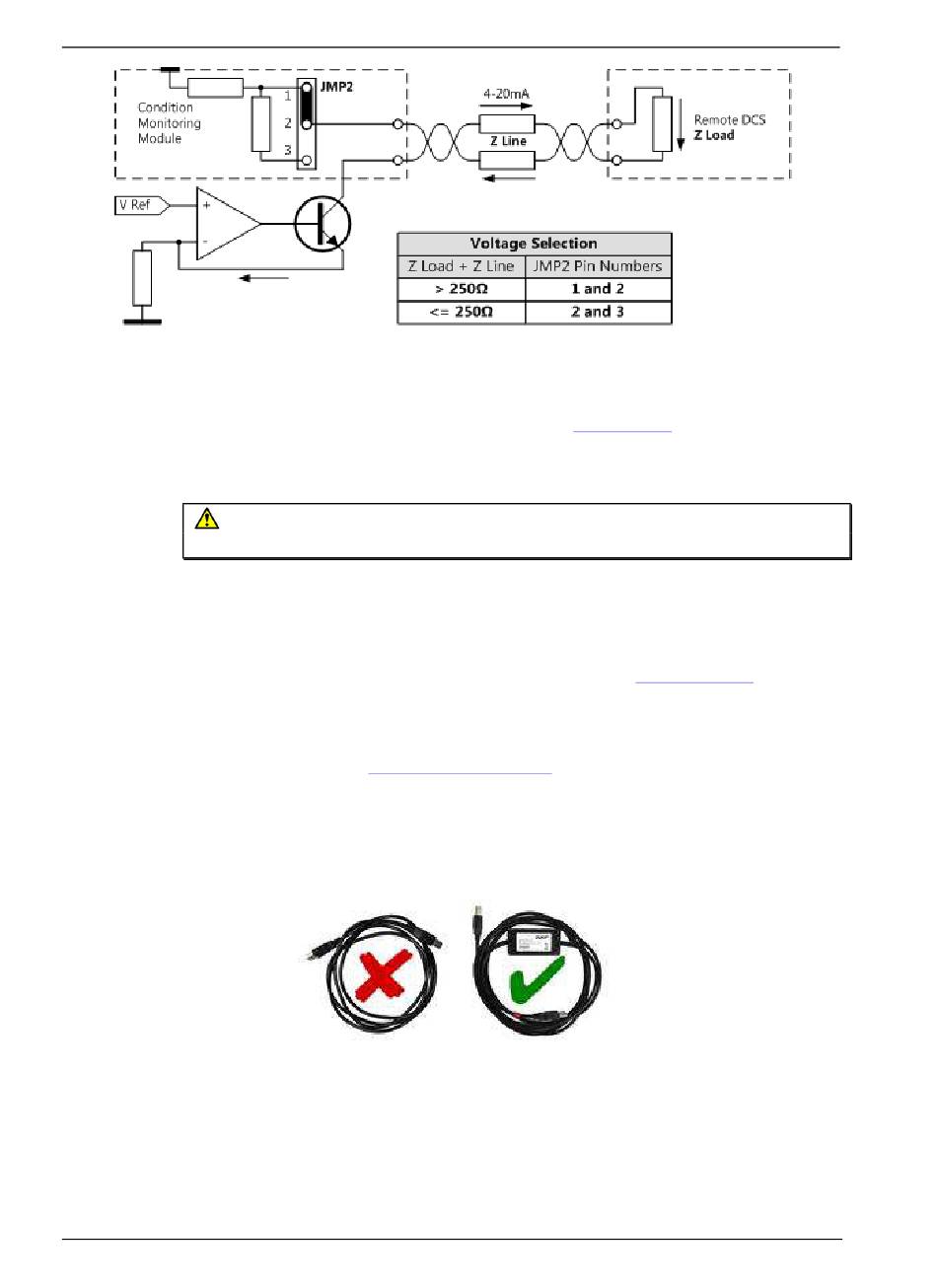

Figure 4 - 14.
4–20 mA Output Voltage Selection.
Protection Module (PRM)
Figure 4 - 15.
Selecting the Correct Mini-USB Cable.
4-20 mA Out in the CMM + PRM
IMx-M Manager
in Drawings and Connections chapter
