SKF Multilog On-Line System IMx-M User Manual page 97

SKF Multilog On-Line System IMx-M
User Manual

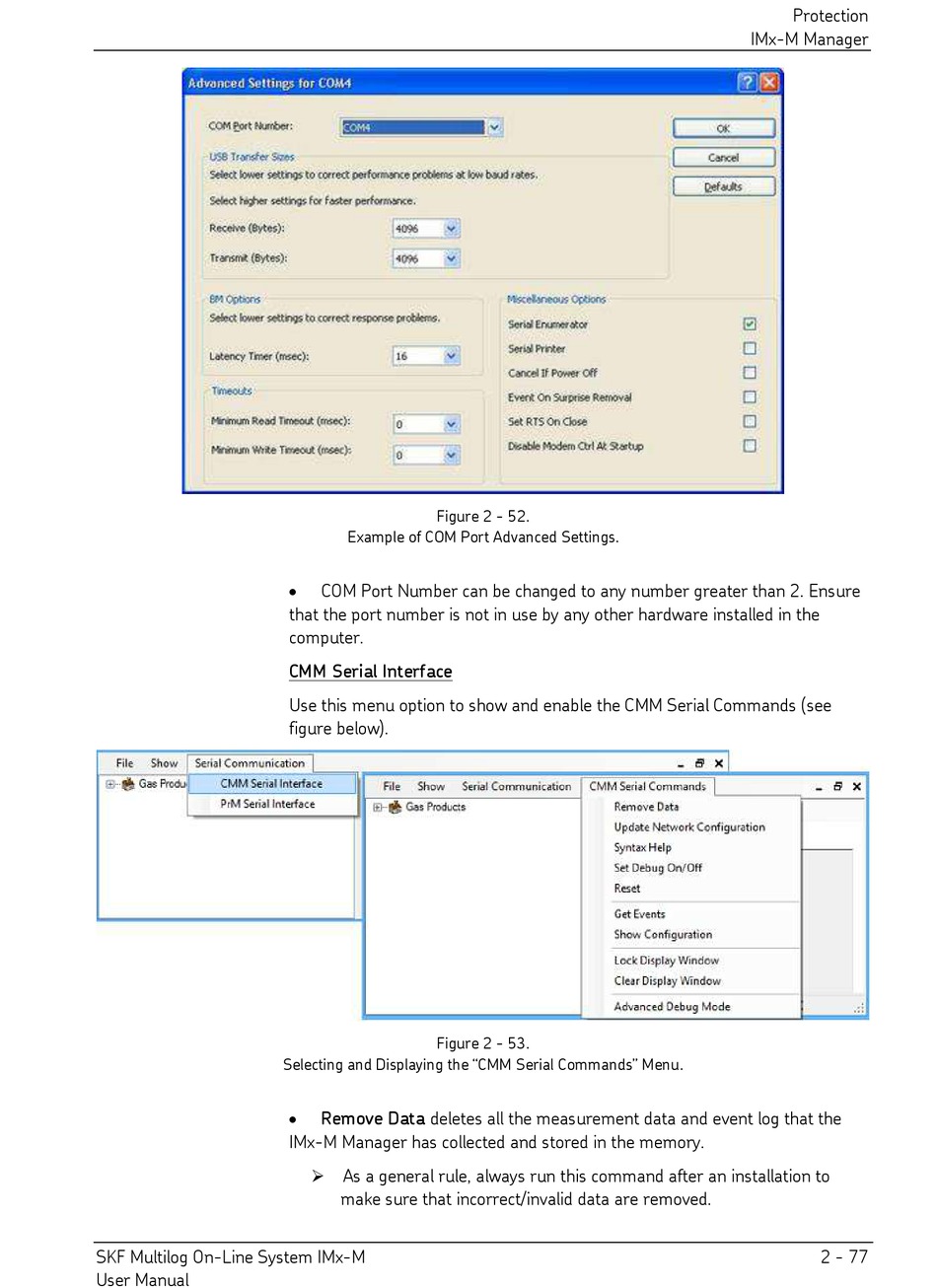

Figure 2 - 52.
Example of COM Port Advanced Settings.

COM Port Number can be changed to any number greater than 2. Ensure
that the port number is not in use by any other hardware installed in the
computer.
CMM Serial Interface
Use this menu option to show and enable the CMM Serial Commands (see
figure below).
Figure 2 - 53.
Selecting and Displaying the "CMM Serial Commands" Menu.

Remove Data deletes all the measurement data and event log that the
IMx-M Manager has collected and stored in the memory.
 As a general rule, always run this command after an installation to
make sure that incorrect/invalid data are removed.
Protection
IMx-M Manager
2 - 77
