Relay Module (Rlm) - SKF Multilog On-Line System IMx-M User Manual

Hardware
LED Indicators

Relay Module (RLM)

The following table summarizes the behavior of LED indicators on each relay module.
Table 4-9: RLM LED indicators.
LED Indicator
STATUS Ready
Relay Ch1 to
Ch32

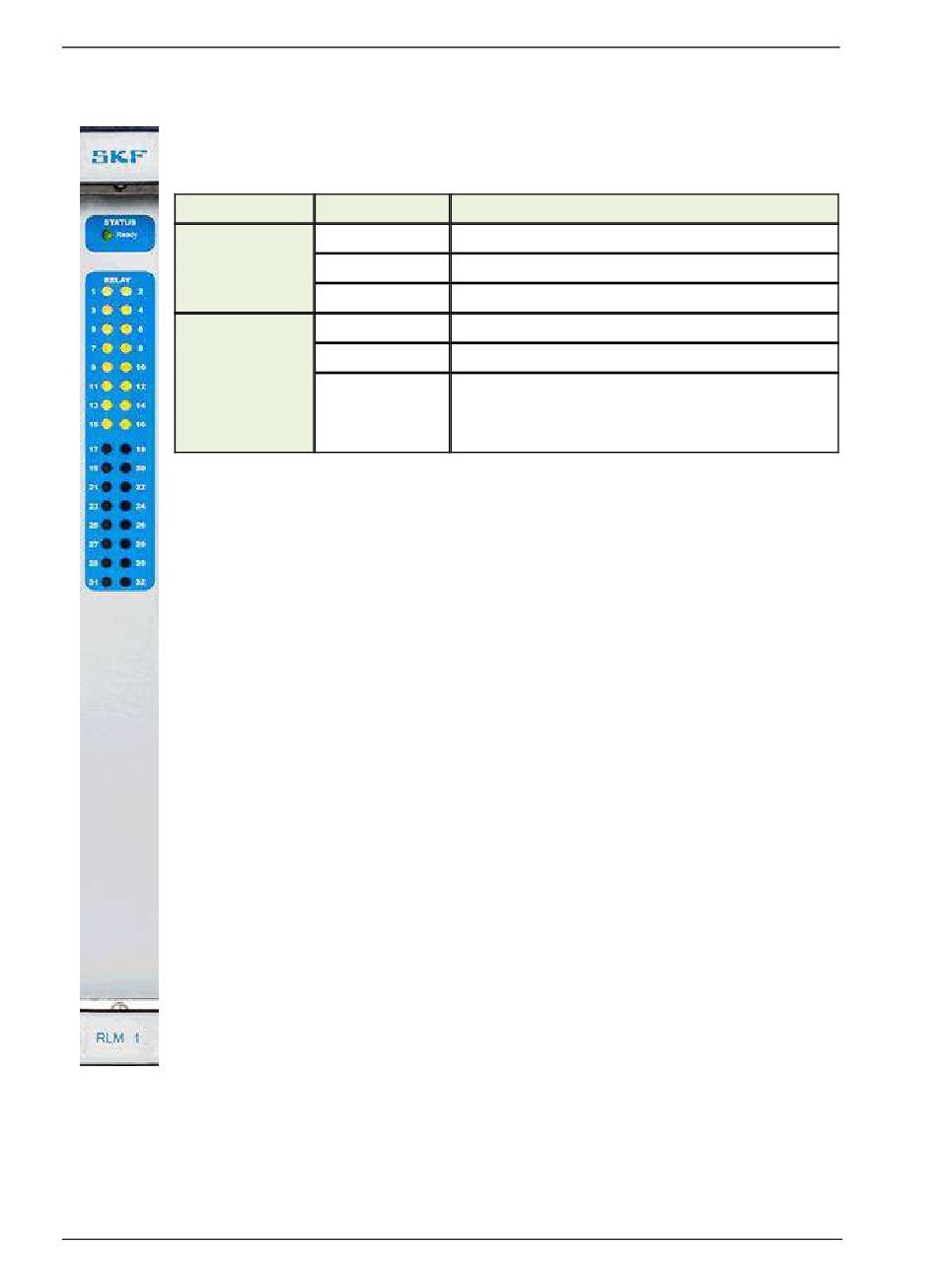

Figure 4 - 20.
RLM Front
View.
4 - 30
Behavior Description
Red Internal system error
Green slow flash Relay module configured & running
Green fast flash Rack startup
On Relay configured but relay logic not triggered
Flash Relay configured and relay logic triggered
Off Relay not configured.
Startup or updating configuration while the
protection module and relay module are disarmed.
