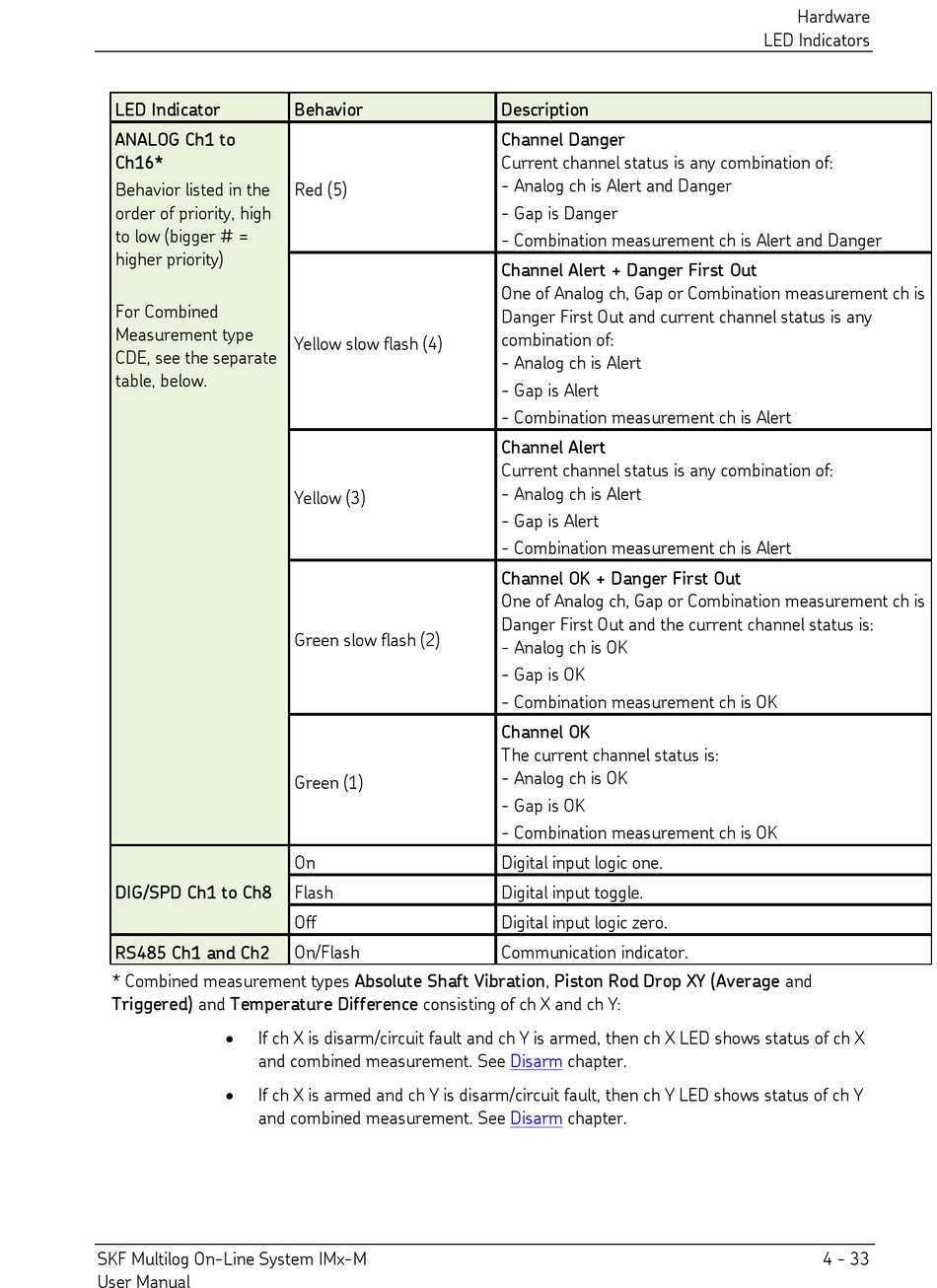

LED Indicator
ANALOG Ch1 to
Ch16*
Behavior listed in the
order of priority, high
to low (bigger # =
higher priority)
For Combined
Measurement type
CDE, see the separate
table, below.
DIG/SPD Ch1 to Ch8
RS485 Ch1 and Ch2
* Combined measurement types Absolute Shaft Vibration, Piston Rod Drop XY (Average and
Triggered) and Temperature Difference consisting of ch X and ch Y:

If ch X is disarm/circuit fault and ch Y is armed, then ch X LED shows status of ch X
and combined measurement. See

If ch X is armed and ch Y is disarm/circuit fault, then ch Y LED shows status of ch Y
and combined measurement. See
SKF Multilog On-Line System IMx-M
User Manual
Behavior
Red (5)
Yellow slow flash (4)
Yellow (3)
Green slow flash (2)
Green (1)
On
Flash
Off
On/Flash
Description
Channel Danger
Current channel status is any combination of:
- Analog ch is Alert and Danger
- Gap is Danger
- Combination measurement ch is Alert and Danger
Channel Alert + Danger First Out
One of Analog ch, Gap or Combination measurement ch is
Danger First Out and current channel status is any
combination of:
- Analog ch is Alert
- Gap is Alert
- Combination measurement ch is Alert
Channel Alert
Current channel status is any combination of:
- Analog ch is Alert
- Gap is Alert
- Combination measurement ch is Alert
Channel OK + Danger First Out
One of Analog ch, Gap or Combination measurement ch is
Danger First Out and the current channel status is:
- Analog ch is OK
- Gap is OK
- Combination measurement ch is OK
Channel OK
The current channel status is:
- Analog ch is OK
- Gap is OK
- Combination measurement ch is OK
Digital input logic one.
Digital input toggle.
Digital input logic zero.
Communication indicator.
Disarm chapter.
Disarm chapter.
