Protection
Protection Module Configuration with IMx-M Manager

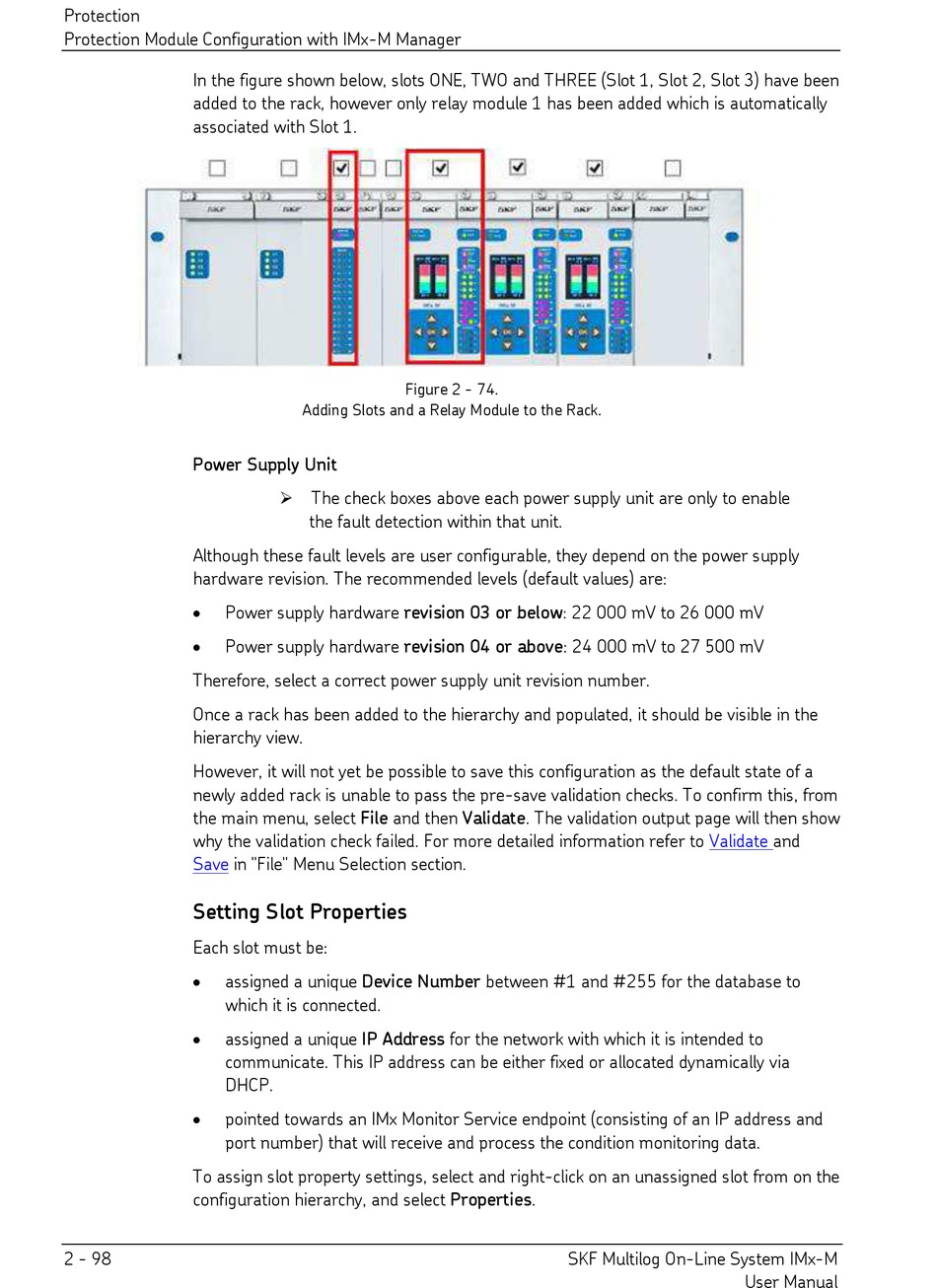

In the figure shown below, slots ONE, TWO and THREE (Slot 1, Slot 2, Slot 3) have been
added to the rack, however only relay module 1 has been added which is automatically
associated with Slot 1.
Power Supply Unit
Although these fault levels are user configurable, they depend on the power supply
hardware revision. The recommended levels (default values) are:

Power supply hardware revision 03 or below: 22 000 mV to 26 000 mV

Power supply hardware revision 04 or above: 24 000 mV to 27 500 mV
Therefore, select a correct power supply unit revision number.
Once a rack has been added to the hierarchy and populated, it should be visible in the
hierarchy view.
However, it will not yet be possible to save this configuration as the default state of a
newly added rack is unable to pass the pre-save validation checks. To confirm this, from
the main menu, select File and then Validate. The validation output page will then show
why the validation check failed. For more detailed information refer to
Save in "File" Menu Selection section.

Setting Slot Properties

Each slot must be:

assigned a unique Device Number between #1 and #255 for the database to
which it is connected.

assigned a unique IP Address for the network with which it is intended to
communicate. This IP address can be either fixed or allocated dynamically via
DHCP.

pointed towards an IMx Monitor Service endpoint (consisting of an IP address and
port number) that will receive and process the condition monitoring data.
To assign slot property settings, select and right-click on an unassigned slot from on the
configuration hierarchy, and select Properties.
2 - 98
Figure 2 - 74.
Adding Slots and a Relay Module to the Rack.
 The check boxes above each power supply unit are only to enable
the fault detection within that unit.
Validate
