Imported (Write Single) Modbus Registers

An IMx-M protection part Modbus slave has registers that can be written from the
Modbus master.
Notes on Implementation

Modbus registers translate according to the table below.

The write single function code is 0x06.

The read function code is 0x03 (for registers with read/write access).

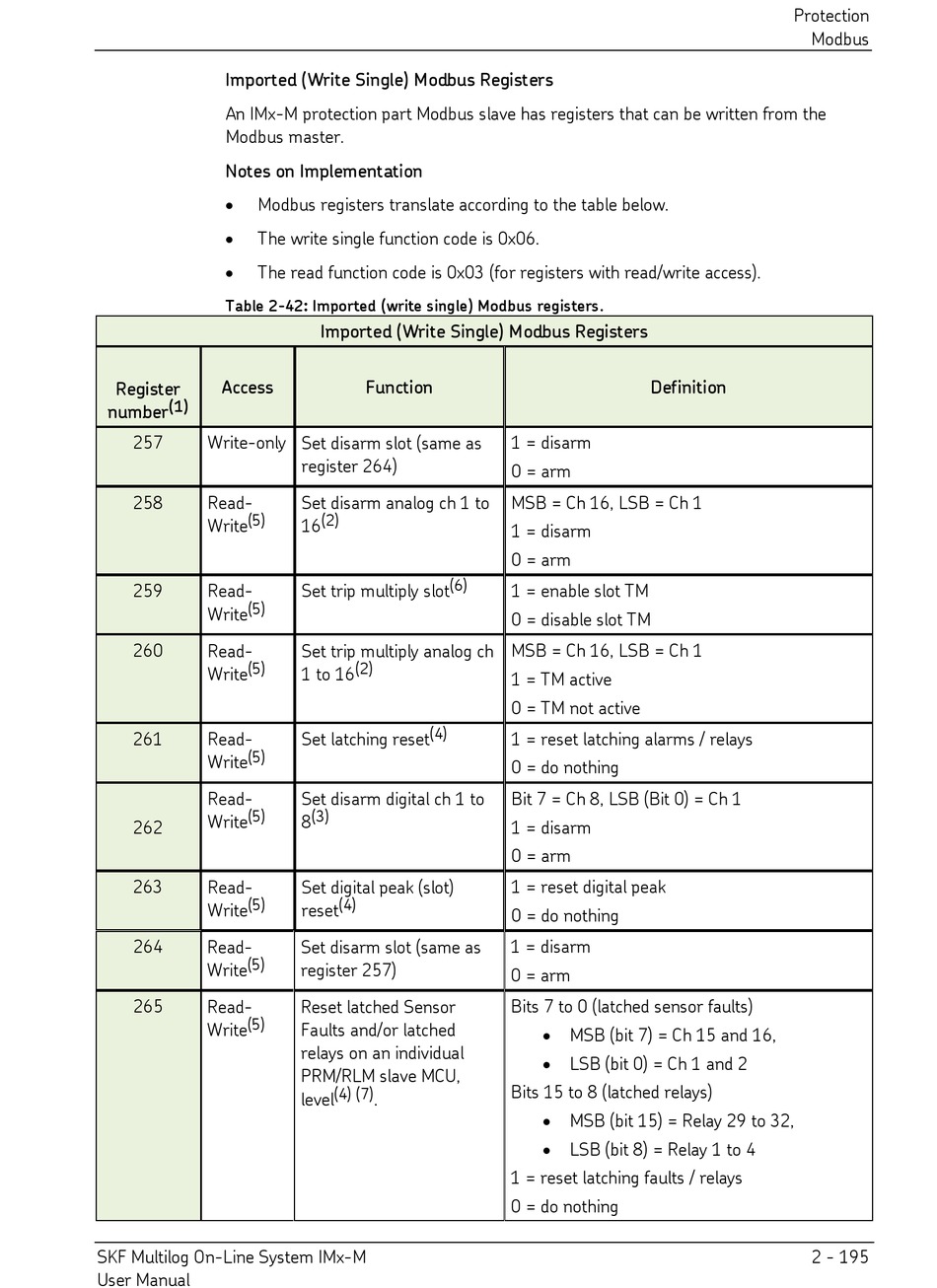

Table 2-42: Imported (write single) Modbus registers.
Access
Register
(1)
number
257 Write-only Set disarm slot (same as
258 Read-
(5)
Write
259 Read-
(5)
Write
260 Read-
(5)
Write
261
Read-
(5)
Write
Read-
(5)
Write
262
263
Read-
(5)
Write
264 Read-
(5)
Write
265 Read-
(5)
Write
SKF Multilog On-Line System IMx-M
User Manual
Imported (Write Single) Modbus Registers
Function
register 264)
Set disarm analog ch 1 to
(2)
16
(6)
Set trip multiply slot
Set trip multiply analog ch
(2)
1 to 16
(4)
Set latching reset
Set disarm digital ch 1 to
(3)
8
Set digital peak (slot)
(4)
reset
Set disarm slot (same as
register 257)
Reset latched Sensor
Faults and/or latched
relays on an individual
PRM/RLM slave MCU,
(4) (7)
level .
Definition
1 = disarm
0 = arm
MSB = Ch 16, LSB = Ch 1
1 = disarm
0 = arm
1 = enable slot TM
0 = disable slot TM
MSB = Ch 16, LSB = Ch 1
1 = TM active
0 = TM not active
1 = reset latching alarms / relays
0 = do nothing
Bit 7 = Ch 8, LSB (Bit 0) = Ch 1
1 = disarm
0 = arm
1 = reset digital peak
0 = do nothing
1 = disarm
0 = arm
Bits 7 to 0 (latched sensor faults)
 MSB (bit 7) = Ch 15 and 16,
 LSB (bit 0) = Ch 1 and 2
Bits 15 to 8 (latched relays)
 MSB (bit 15) = Relay 29 to 32,
 LSB (bit 8) = Relay 1 to 4
1 = reset latching faults / relays
0 = do nothing
Protection
Modbus
2 - 195
