Configuring an Analog Channel

Once the initial channel settings have been entered, and the OK button pressed, the
main Analog Channel configuration dialog will be immediately launched.
Bar Graph displays the alarm level, hysteresis and trip multiply factor against the
entered test value. Note that the entered test value is not stored.
2 - 110

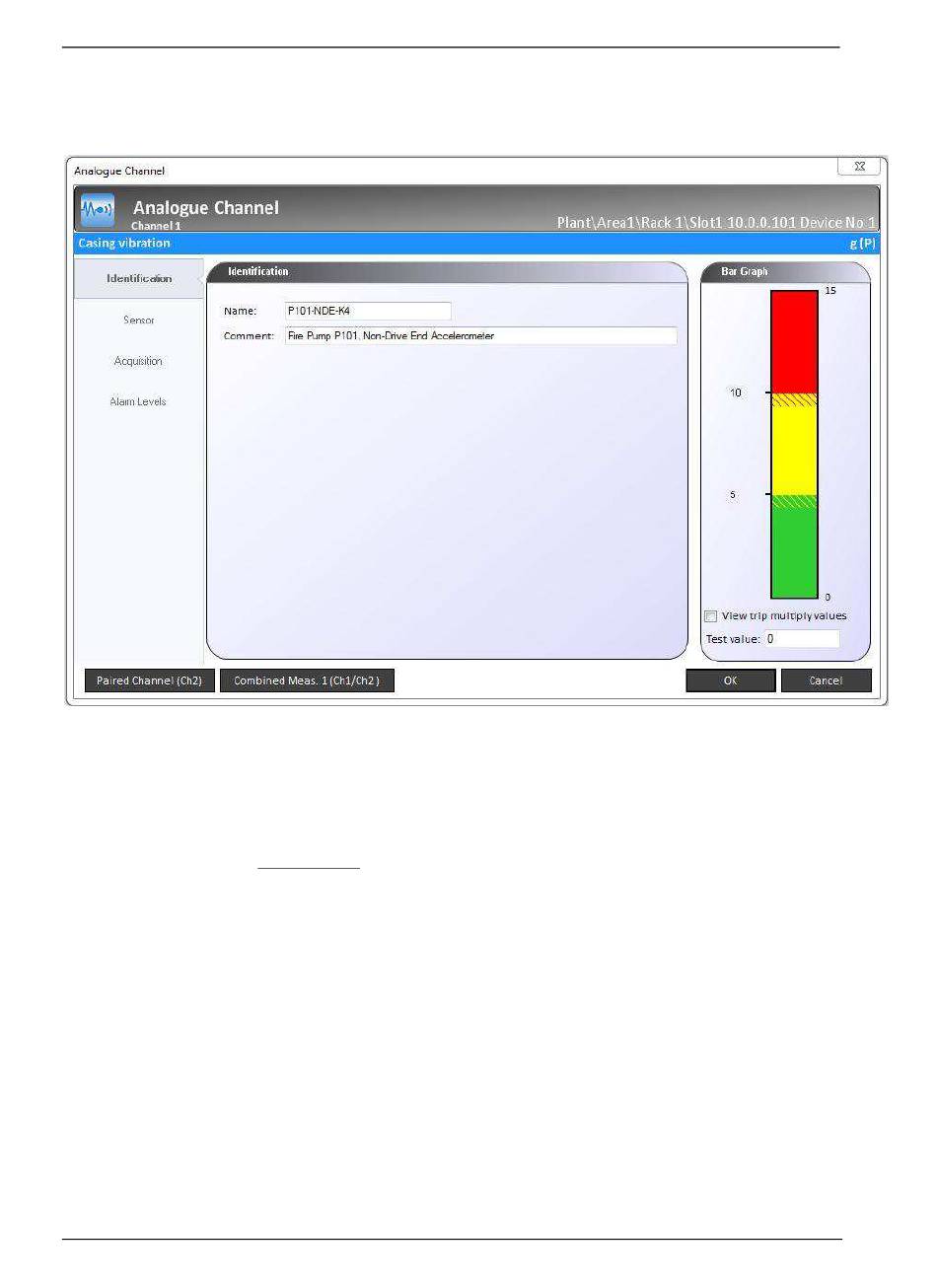

Figure 2 - 86.
Analog Channel Configuration Dialog.
Identification
Name
A 20 character field which can usefully be used to identify the sensor location,
type and/or tag.
Comment
A free text field for additional information. Note that this text is only stored in
the project and not in the actual configuration.
