Hardware
Hardware Configuration
Establishing a Connection between Host PC and a Condition Monitoring Module

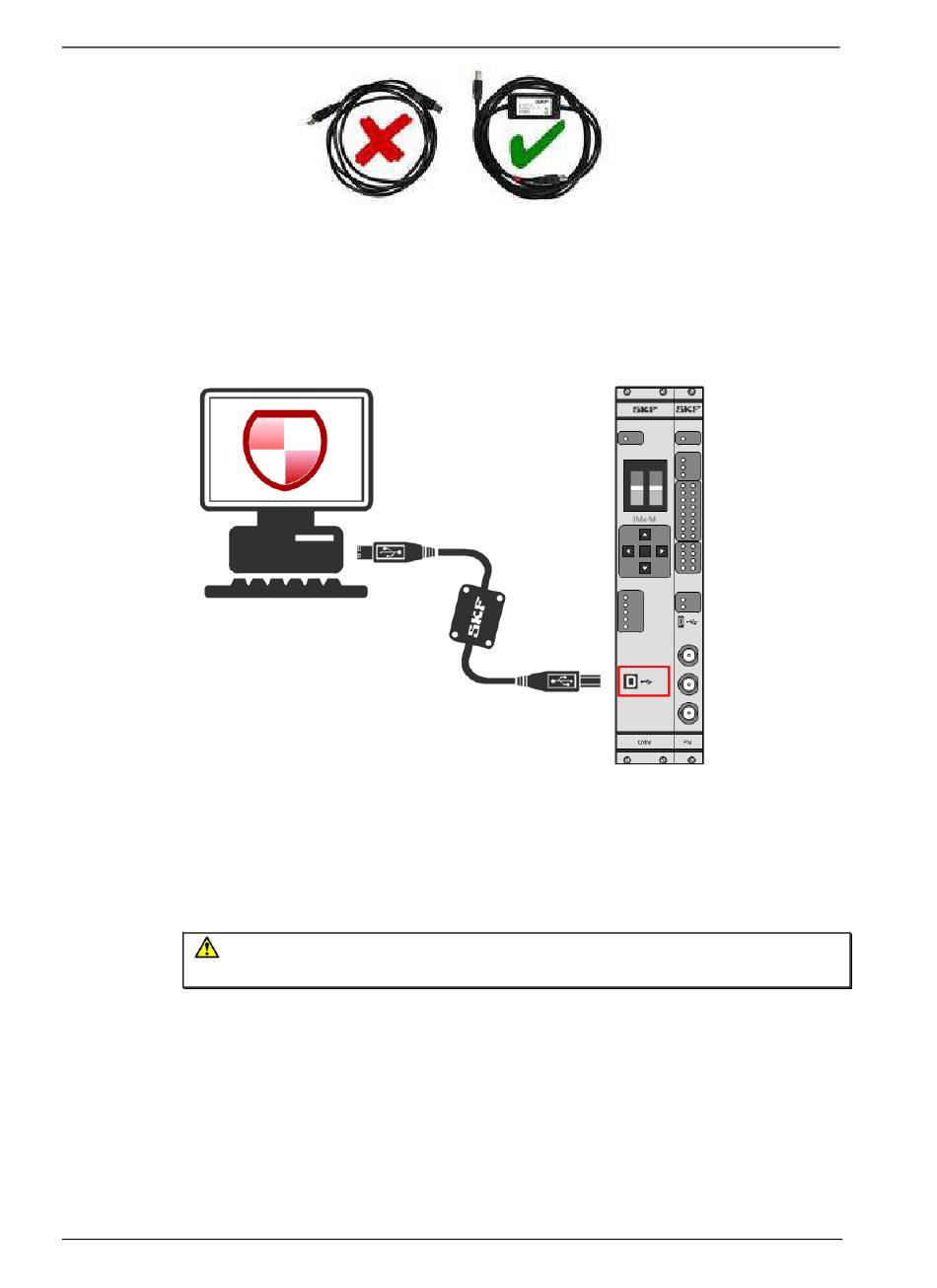

Connect a USB cable between the Host PC and the condition monitoring module as
shown in the figure below.
Connect the SKF USB Isolator cable to a free USB port of the PC. Connect the other end
to a condition monitoring module USB port. This connected condition monitoring
module is where the CMM + PRM slot network configuration will be located.
Important - SKF USB isolator cables shall always be used when connecting to
IMx-M USB ports.
4 - 28
Figure 4 - 17.
Selecting the Correct USB C
Figure 4 - 18.
Connecting the USB Cable.
able
.
