To enable ch1 trip mult
Important - Events will not be saved in CMM during the maintenance mode.
SKF Multilog On-Line System IMx-M
User Manual
 Trip multiply status will be stored in the backplane and will be
restored after power cycle or hot-swap.

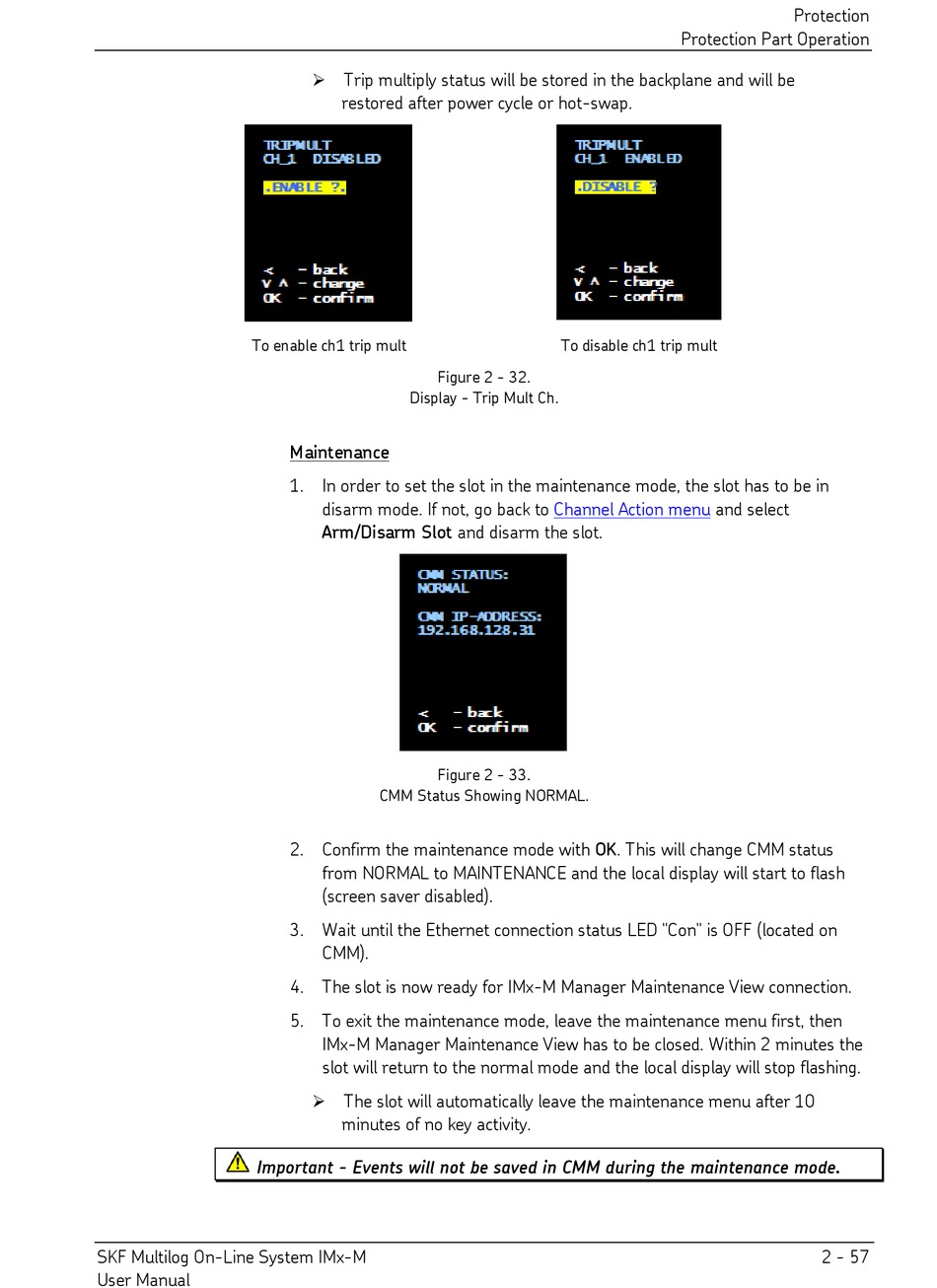

Figure 2 - 32.
Display - Trip Mult Ch.
Maintenance
1. In order to set the slot in the maintenance mode, the slot has to be in
disarm mode. If not, go back to
Arm/Disarm Slot and disarm the slot.
Figure 2 - 33.
CMM Status Showing NORMAL.
2. Confirm the maintenance mode with OK. This will change CMM status
from NORMAL to MAINTENANCE and the local display will start to flash
(screen saver disabled).
3. Wait until the Ethernet connection status LED "Con" is OFF (located on
CMM).
4. The slot is now ready for IMx-M Manager Maintenance View connection.
5. To exit the maintenance mode, leave the maintenance menu first, then
IMx-M Manager Maintenance View has to be closed. Within 2 minutes the
slot will return to the normal mode and the local display will stop flashing.
 The slot will automatically leave the maintenance menu after 10
minutes of no key activity.
Protection Part Operation
To disable ch1 trip mult
Channel Action menu and select
Protection
