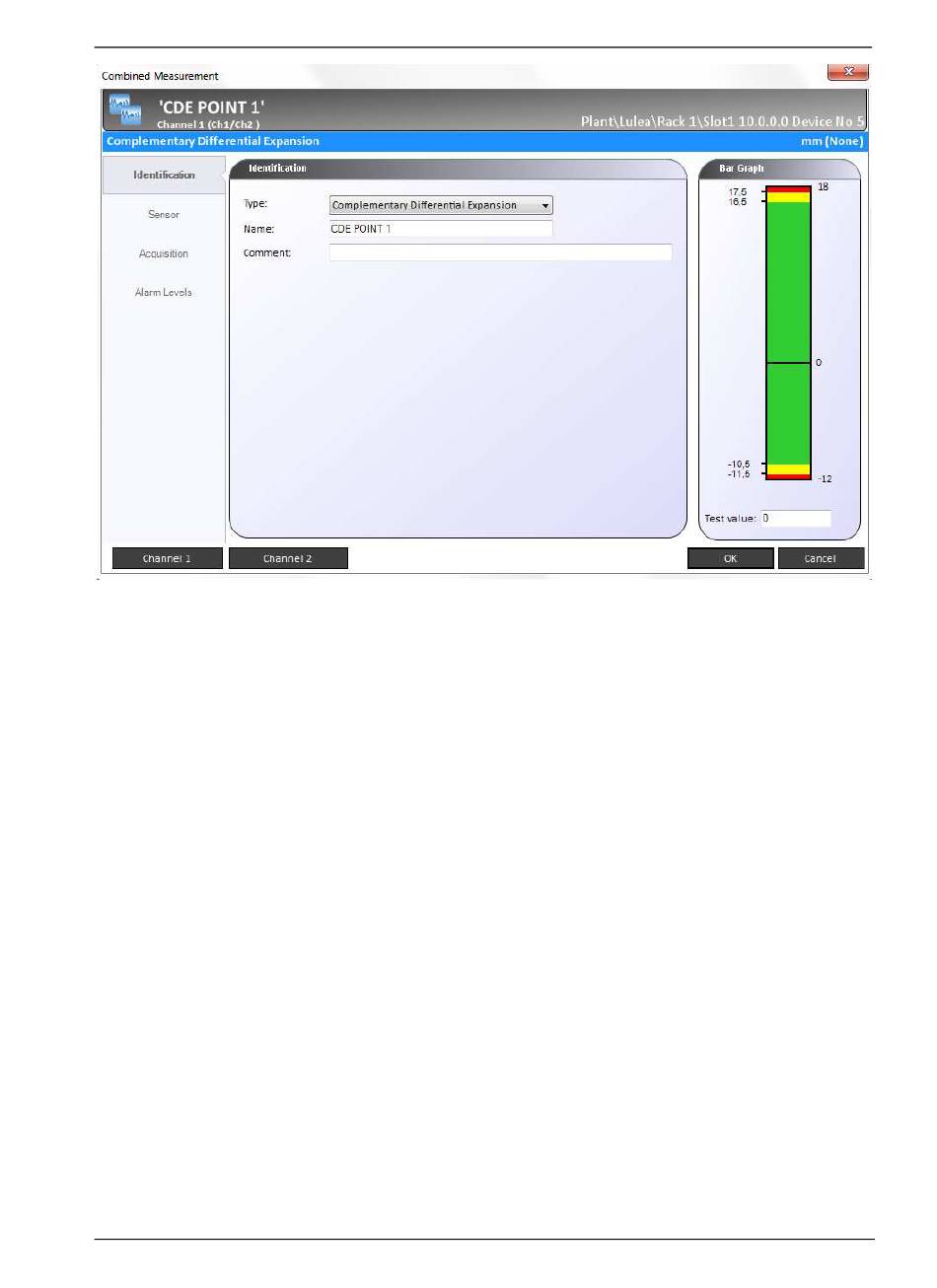

Figure 2 - 123.
Setting the Combined Measurement Type.
The next step is to set the Master Channel on the "Sensor" tab page. For this
example, we will be selecting Channel 1, however the actual channel number
shown is determined by exactly what channel pairs actually make up the
combination.
Protection Module Configuration with IMx-M Manager
Protection
2 - 157
