Protection Module Configuration with IMx-M Manager
4. Set the acquisition parameters.

Min and Max scales are configured to 0% and 100%.

Clicking on the Filter selection box to select a filter shows that only the DC filter is
selectable and selected.

It also causes a warning triangle to appear. Placing the cursor over the triangle
shows a message of what is wrong. The red text in the Scale box also gives a hint of
what went wrong.
2 - 176

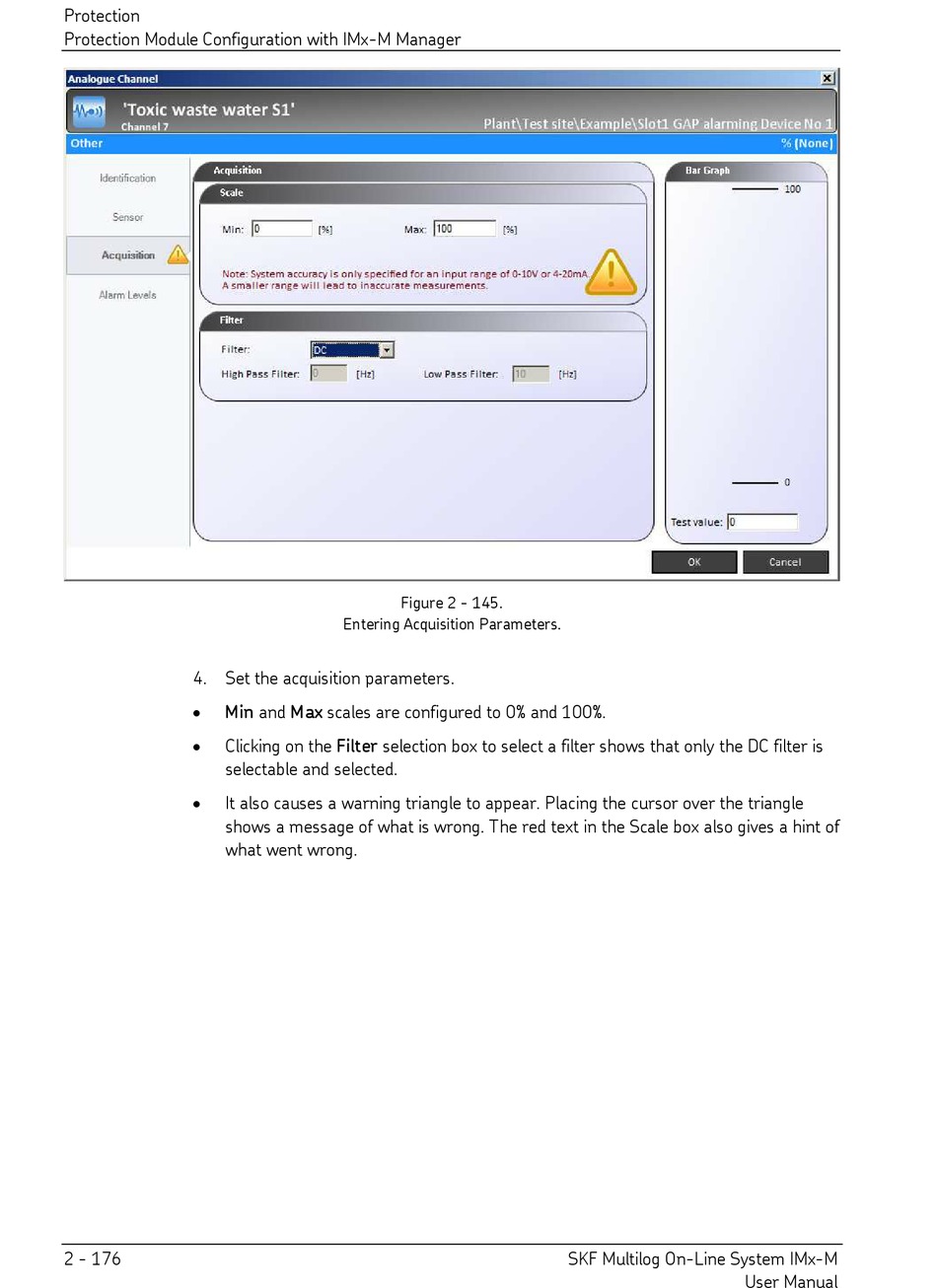

Figure 2 - 145.
Entering Acquisition Parameters.
