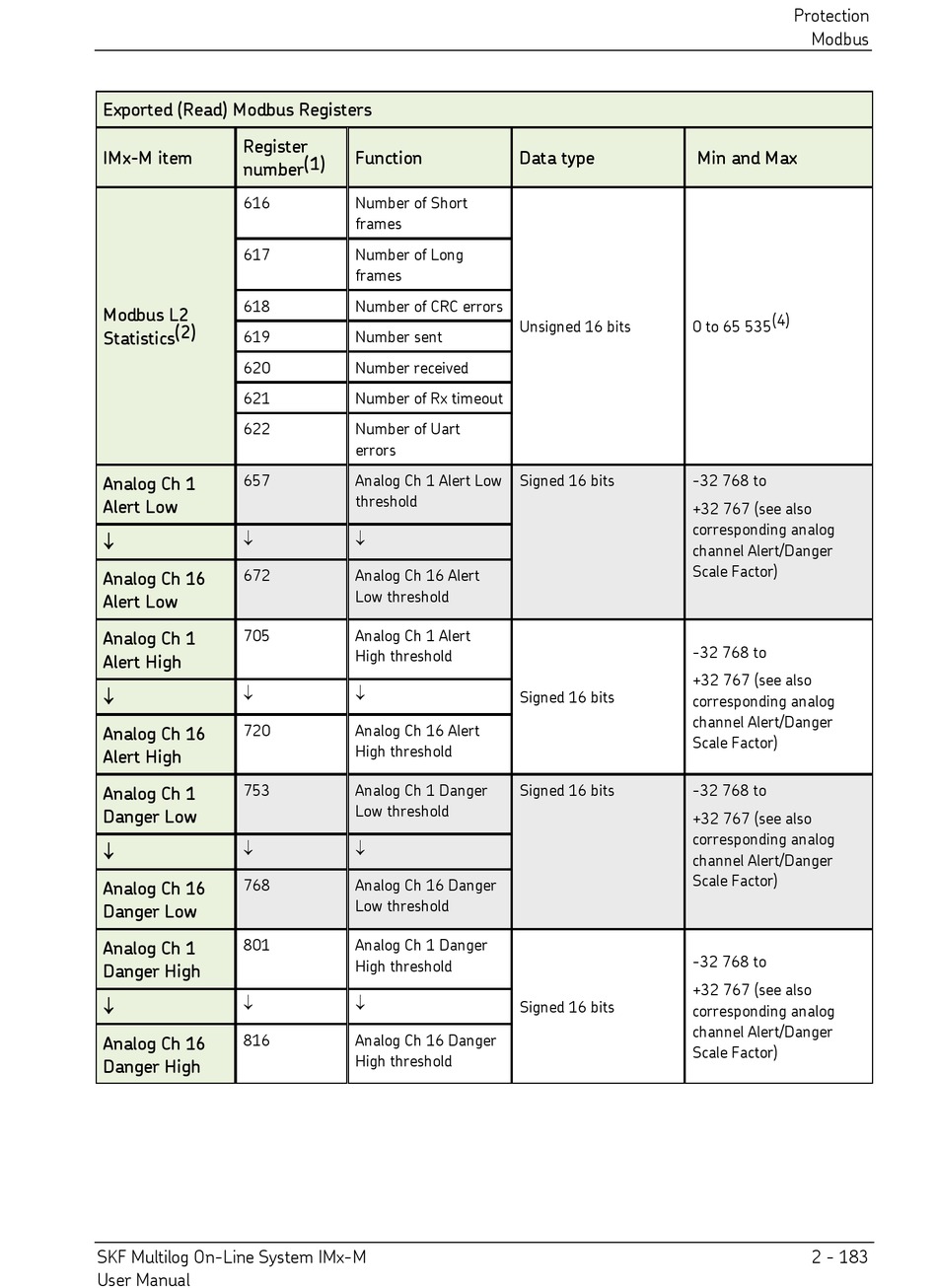

Exported (Read) Modbus Registers
Register
IMx-M item
number (1)
616
617
618
Modbus L2
Statistics (2)
619
620
621
622
657
Analog Ch 1
Alert Low
 
672
Analog Ch 16
Alert Low
705
Analog Ch 1
Alert High
 
720
Analog Ch 16
Alert High
753
Analog Ch 1
Danger Low
 
768
Analog Ch 16
Danger Low
801
Analog Ch 1
Danger High
 
816
Analog Ch 16
Danger High
SKF Multilog On-Line System IMx-M
User Manual
Function Data type
Number of Short
frames
Number of Long
frames
Number of CRC errors
Unsigned 16 bits
Number sent
Number received
Number of Rx timeout
Number of Uart
errors
Analog Ch 1 Alert Low Signed 16 bits
threshold

Analog Ch 16 Alert
Low threshold
Analog Ch 1 Alert
High threshold

Signed 16 bits
Analog Ch 16 Alert
High threshold
Analog Ch 1 Danger Signed 16 bits
Low threshold

Analog Ch 16 Danger
Low threshold
Analog Ch 1 Danger
High threshold

Signed 16 bits
Analog Ch 16 Danger
High threshold
Protection
Modbus
Min and Max
0 to 65 535 (4)
-32 768 to
+32 767 (see also
corresponding analog
channel Alert/Danger
Scale Factor)
-32 768 to
+32 767 (see also
corresponding analog
channel Alert/Danger
Scale Factor)
-32 768 to
+32 767 (see also
corresponding analog
channel Alert/Danger
Scale Factor)
-32 768 to
+32 767 (see also
corresponding analog
channel Alert/Danger
Scale Factor)
