Sensor

The following sensor configuration applies to the Complementary Differential Expansion
combined measurement type only.

Master Channel: The sensor connected to this master channel is the master probe
and decides when to switch over to the other sensor depending on the crossover
voltage.

Crossover: It is the voltage that controls when to switch between the 2 sensors.
For detailed information, refer to
Differential Expansion.
SKF Multilog On-Line System IMx-M
User Manual
Protection Module Configuration with IMx-M Manager

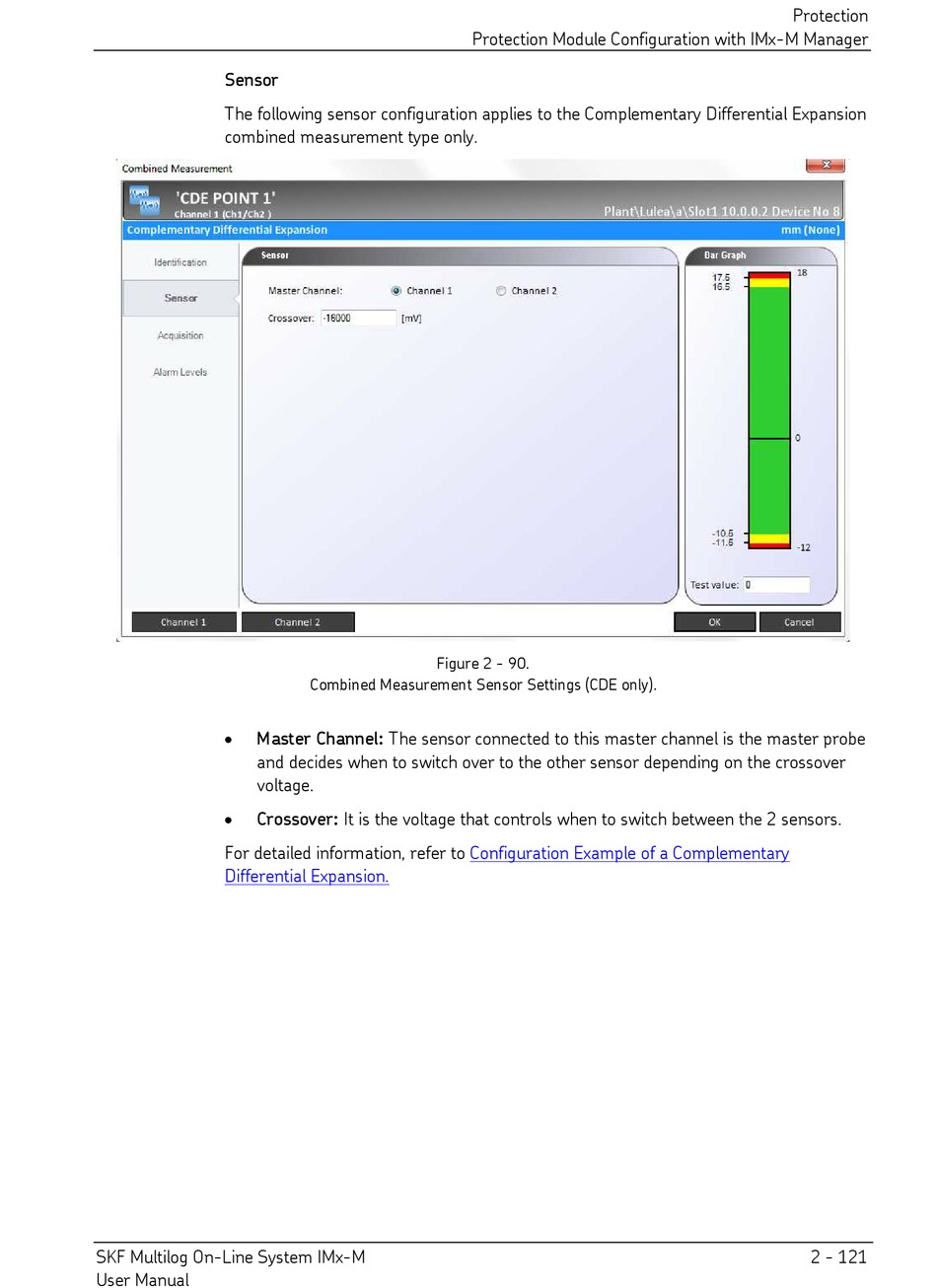

Figure 2 - 90.
Combined Measurement Sensor Settings (CDE only).
Configuration Example of a Complementary
Protection
2 - 121
