Relay Module (RLM) Connections

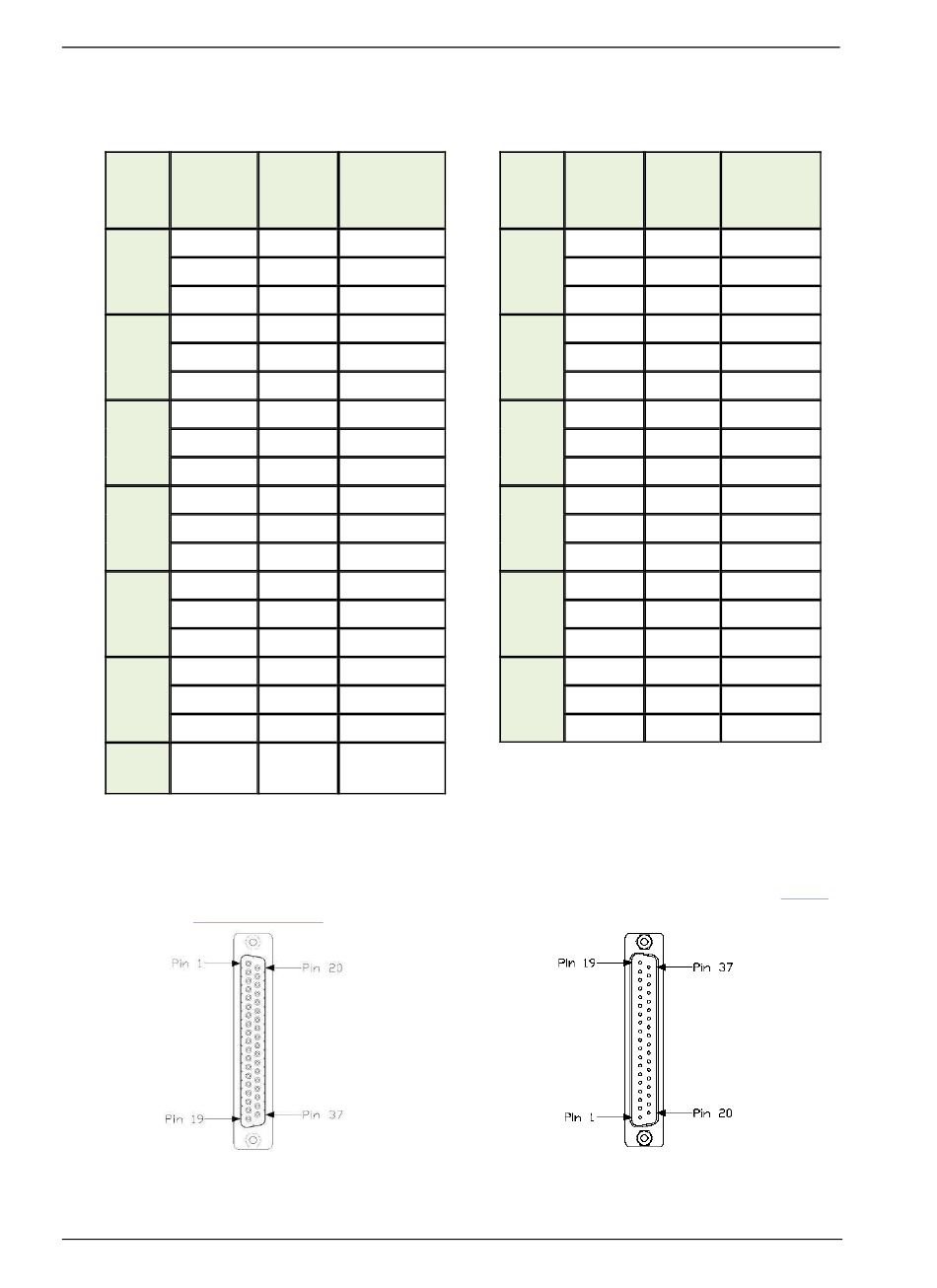

Table 7-7: Relay Module connections.
Relay Pin
nr
(before
rev. 3)
1 1
2
3
2 4
5
6
3 7
8
9
4 10
11
12
5 13
14
15
6 16
17
18
- 19
ReXCom = Relay nr X, Common
ReXNO = Relay nr X, Normally Open
ReXNC = Relay nr X, Normally Closed
For default relay connection in normally de-energized / normally energized, see
on Relay
Pin numbers for relay connector board before rev. 3
(female), front side
7 - 18
Relay Connector A
Pin Relay
connection
(from
rev.3)
19 Re1Com
18 Re1NO
17 Re1NC
16 Re2Com
15 Re2NO
14 Re2NC
13 Re3Com
12 Re3NO
11 Re3NC
10 Re4Com
9 Re4NO
8 Re4NC
7 Re5Com
6 Re5NO
5 Re5NC
4 Re6Com
3 Re6NO
2 Re6NC
1 No
Connection
Modules.
Relay Pin Pin
nr
(before (from
rev. 3) rev.3)
7 20 37
21 36
22 35
8 23 34
24 33
25 32
9 26 31
27 30
28 29
10 29 28
30 27
31 26
11 32 25
33 24
34 23
12 35 22
36 21
37 20
Pin numbers for relay connector board from rev. 3
(male), front side
SKF Multilog On-Line System IMx-M
Relay
connection
Re7Com
Re7NO
Re7NC
Re8Com
Re8NO
Re8NC
Re9Com
Re9NO
Re9NC
Re10Com
Re10NO
Re10NC
Re11Com
Re11NO
Re11NC
Re12Com
Re12NO
Re12NC
Relays
User Manual
