For a fully equipped IMx-M rack, the configuration file of each slot contains the
following:

Slot 1: the configurations of CMM 1, PRM 1 and RLM 1

Slot 2: the configurations of CMM 2, PRM 2 and RLM 2

Slot 3: the configurations of CMM 3, PRM 3 and RLM 3

Slot 4: the configurations of CMM 4 and PRM 4.
Although only one master project file (*.mhf) is required per project (plant), because
condition monitoring and machine protection parts operate completely independently of
each other, two additional and distinct configuration files are created by the IMx-M
Manager for each slot within the rack.
SKF Multilog On-Line System IMx-M
User Manual

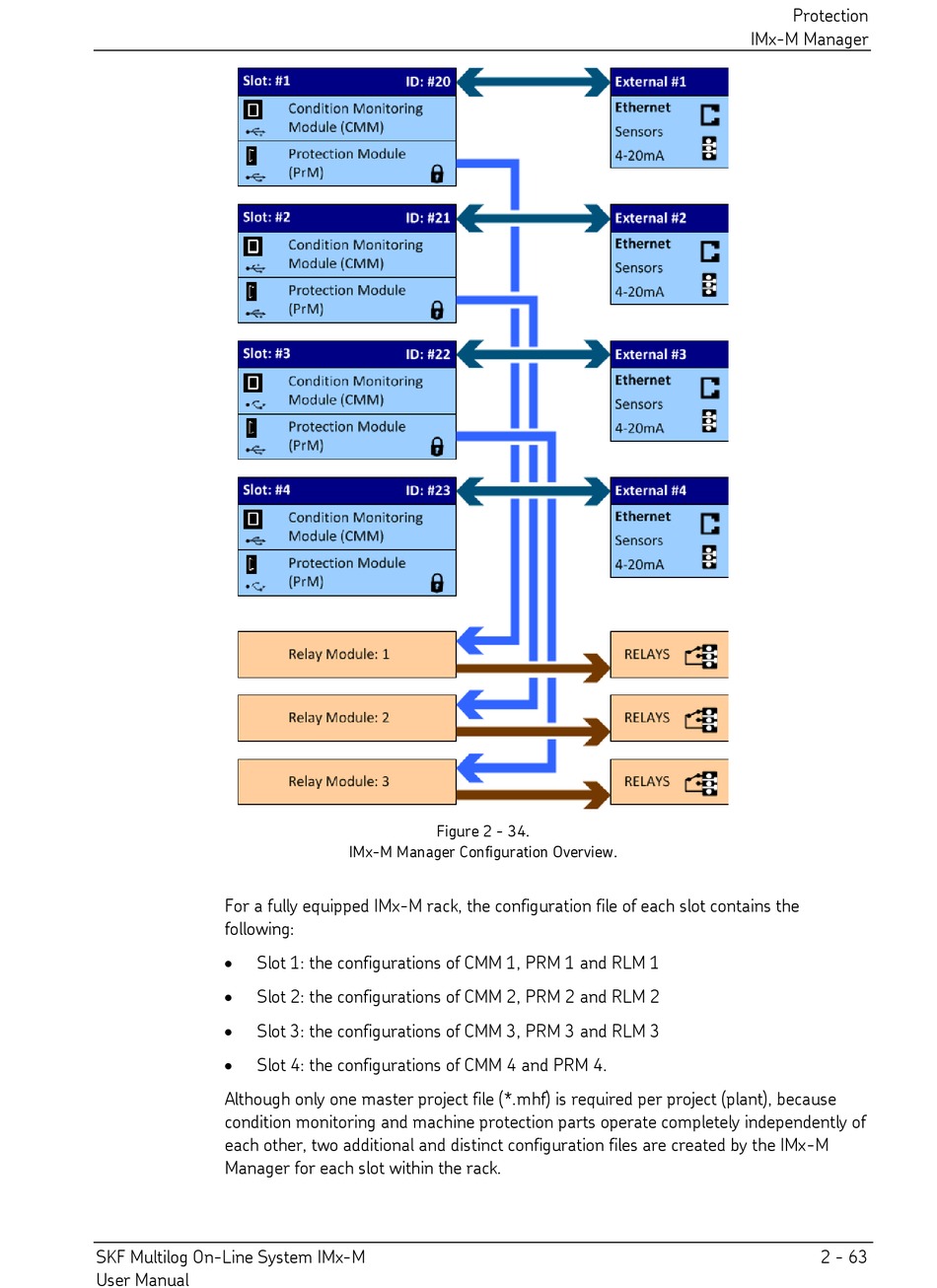

Figure 2 - 34.
IMx-M Manager Configuration Overview.
