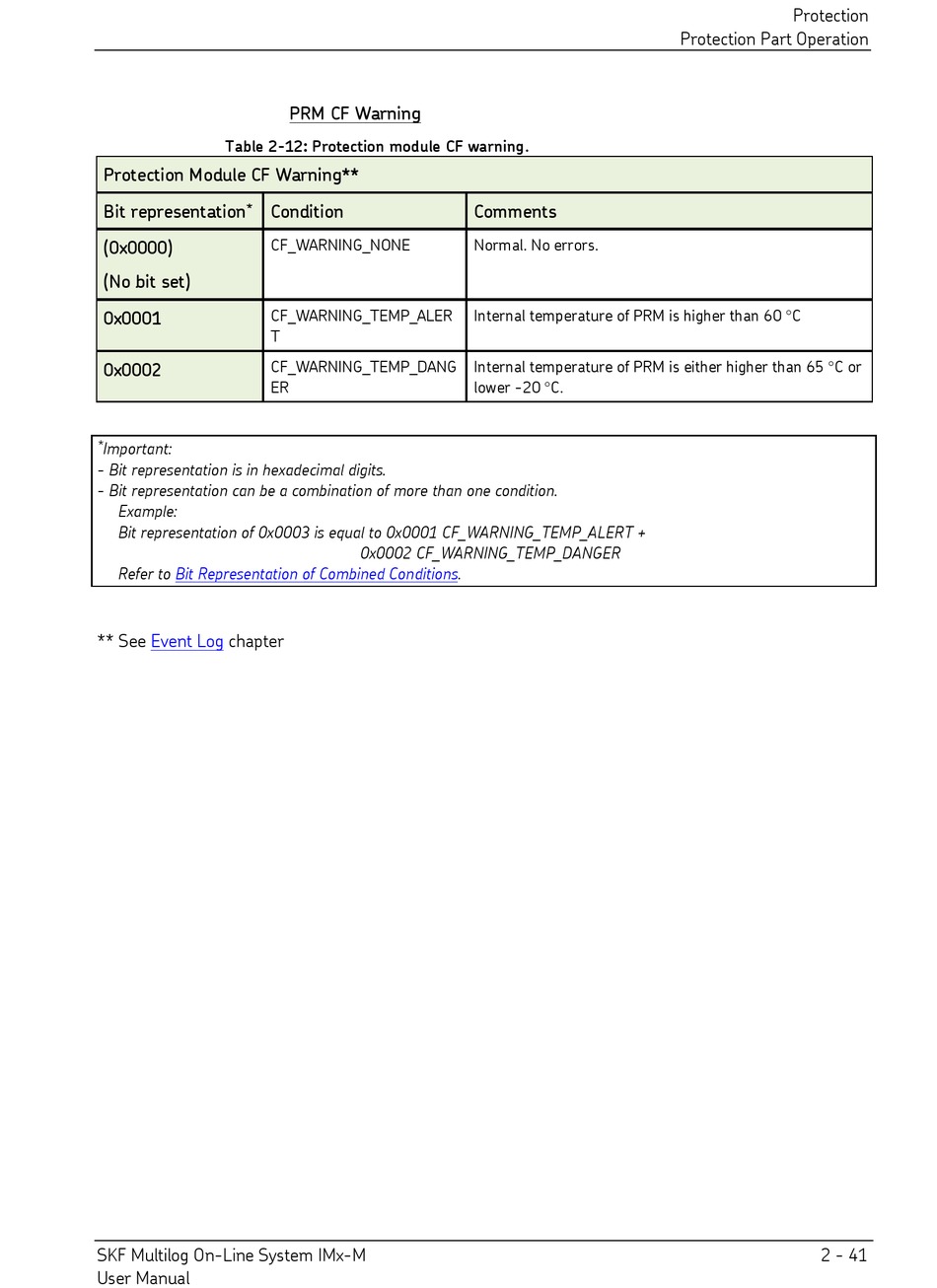

Table 2-12: Protection module CF warning.
Protection Module CF Warning**
*
Bit representation Condition
CF_WARNING_NONE
(0x0000)
(No bit set)
CF_WARNING_TEMP_ALER
0x0001
T
CF_WARNING_TEMP_DANG
0x0002
ER
*
Important:
- Bit representation is in hexadecimal digits.
- Bit representation can be a combination of more than one condition.
Example:
Bit representation of 0x0003 is equal to 0x0001 CF_WARNING_TEMP_ALERT +
Refer to Bit Representation of Combined
** See Event Log chapter
SKF Multilog On-Line System IMx-M
User Manual
PRM CF Warning
0x0002 CF_WARNING_TEMP_DANGER
Conditions.
Comments
Normal. No errors.
Internal temperature of PRM is higher than 60 C
Internal temperature of PRM is either higher than 65 C or
lower -20 C.
