SKF Multilog On-Line System IMx-M
User Manual

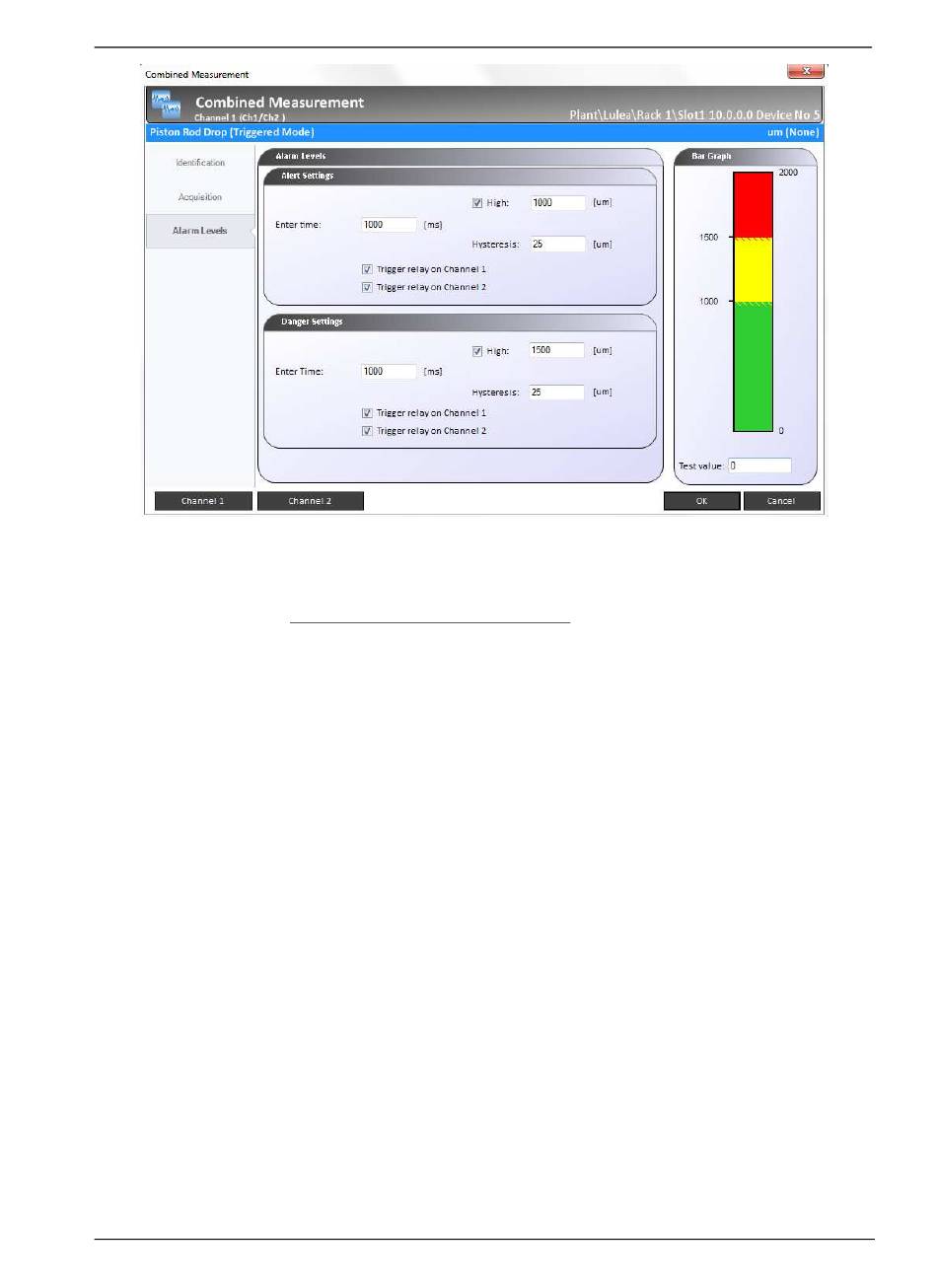

Figure 2 - 138.
Alarm Parameters for the Combined Measurement.
Configuring a Speed Digital Channel
To make the Piston rod drop measurement work in the selected mode the
associated digital channel MUST be configured for speed measurement.
When a digital channel is used together with Piston rod drop the "Pulses per
rev." MUST be "1" and nothing else. If not "1" the Piston rod drop
measurements will not work correctly.
Protection Module Configuration with IMx-M Manager
Protection
2 - 169
