Buffered Outputs Front Menu - SKF Multilog On-Line System IMx-M User Manual

Protection
Protection Part Operation

Buffered Outputs Front Menu

Select channels to be connected to the three buffered outputs at the front of the
protection module, two analog channels and one digital channel. For detailed
information, refer to
1. Select a buffered output number (1 to 3) with up and down arrows.
2. Confirm the selection with OK.
3. Select a channel with up and down arrows.
–
–
Buff out 1
4. Confirm the selection with OK.
2 - 52
Front Panel BNC Buffered Outputs
Figure 2 - 23.
To Select a Buff Out.
Buff out 1 and Buff out 2: A channel can be selected from analog channels 1 to
16.
Buff out 3: A channel can be selected from digital channels 1 to 8.
Buff out 2
Figure 2 - 24.

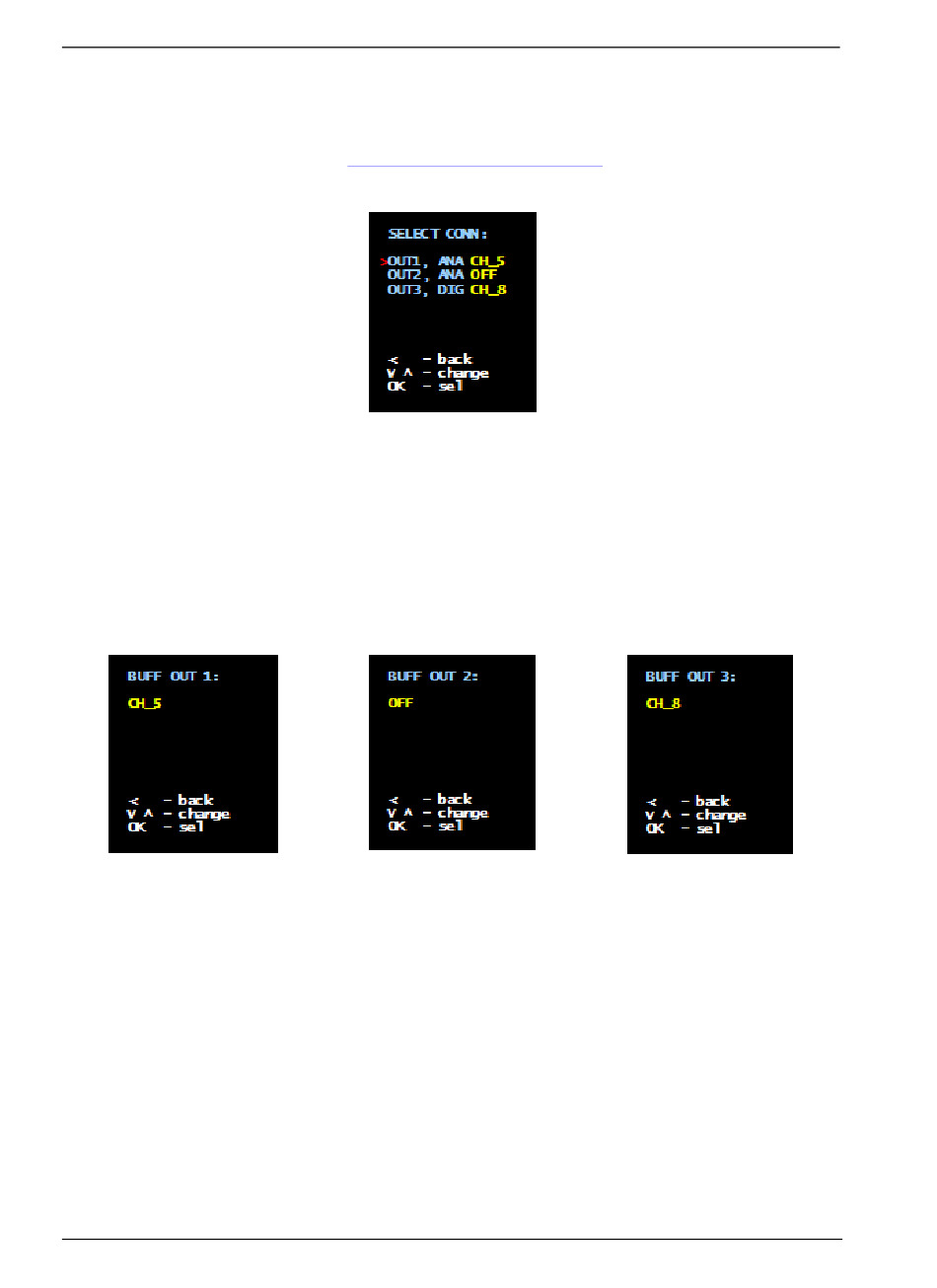

Examples of Buffered Output.
of Buffered Outputs.
Buff out 3
