Protection
Protection Module Configuration with IMx-M Manager

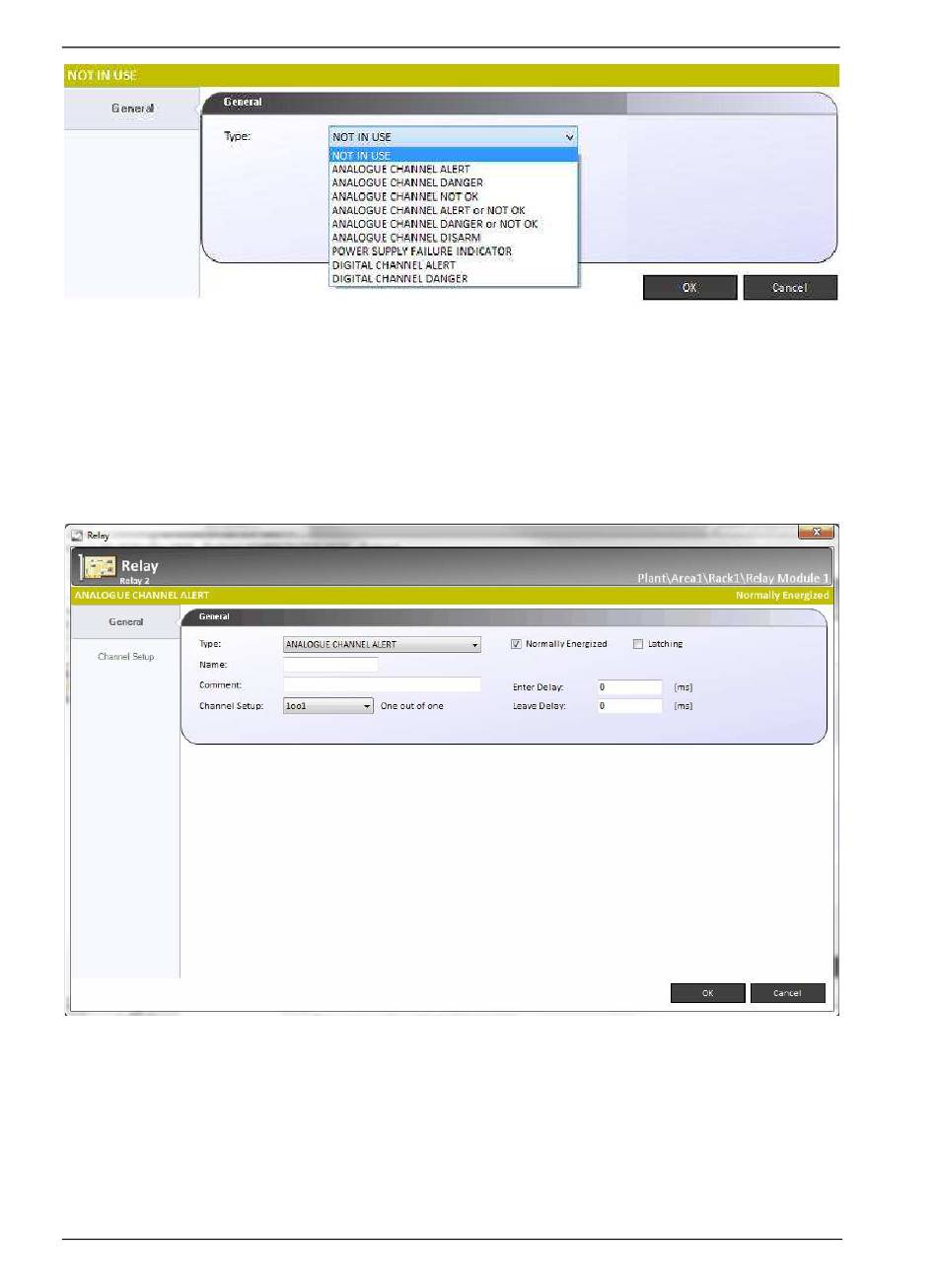

From this dialog, first select a relay type from the drop down list and then allow the
dialog to refactor itself based on this selection.
With the exception of Power Supply Failure Indicator, each of the available relay types
will allow for both General Configuration and Channel Setup as shown in the figure
below.
2 - 132
Figure 2 - 99.
Selecting a Relay Type.
Figure 2 - 100.
Relay General Setting.
