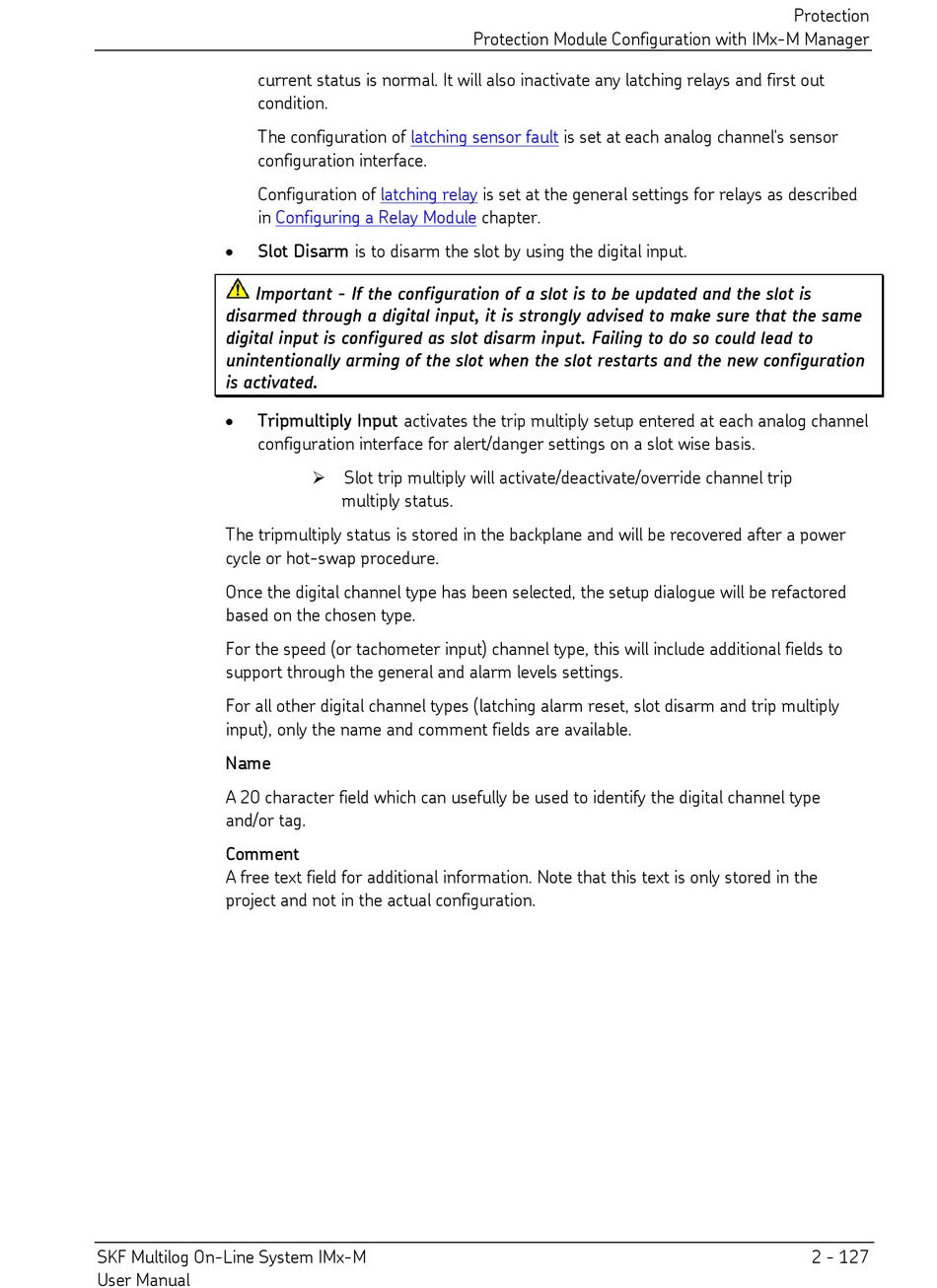

current status is normal. It will also inactivate any latching relays and first out
condition.
The configuration of
configuration interface.
Configuration of
in

Slot Disarm is to disarm the slot by using the digital input.
Important - If the configuration of a slot is to be updated and the slot is
disarmed through a digital input, it is strongly advised to make sure that the same
digital input is configured as slot disarm input. Failing to do so could lead to
unintentionally arming of the slot when the slot restarts and the new configuration
is activated.

Tripmultiply Input activates the trip multiply setup entered at each analog channel
configuration interface for alert/danger settings on a slot wise basis.
The tripmultiply status is stored in the backplane and will be recovered after a power
cycle or hot-swap procedure.
Once the digital channel type has been selected, the setup dialogue will be refactored
based on the chosen type.
For the speed (or tachometer input) channel type, this will include additional fields to
support through the general and alarm levels settings.
For all other digital channel types (latching alarm reset, slot disarm and trip multiply
input), only the name and comment fields are available.
Name
A 20 character field which can usefully be used to identify the digital channel type
and/or tag.
Comment
A free text field for additional information. Note that this text is only stored in the
project and not in the actual configuration.
SKF Multilog On-Line System IMx-M
User Manual
latching sensor fault
latching relay
Configuring a Relay Module
 Slot trip multiply will activate/deactivate/override channel trip
multiply status.
Protection Module Configuration with IMx-M Manager
is set at each analog channel's sensor
is set at the general settings for relays as described
chapter.
Protection
