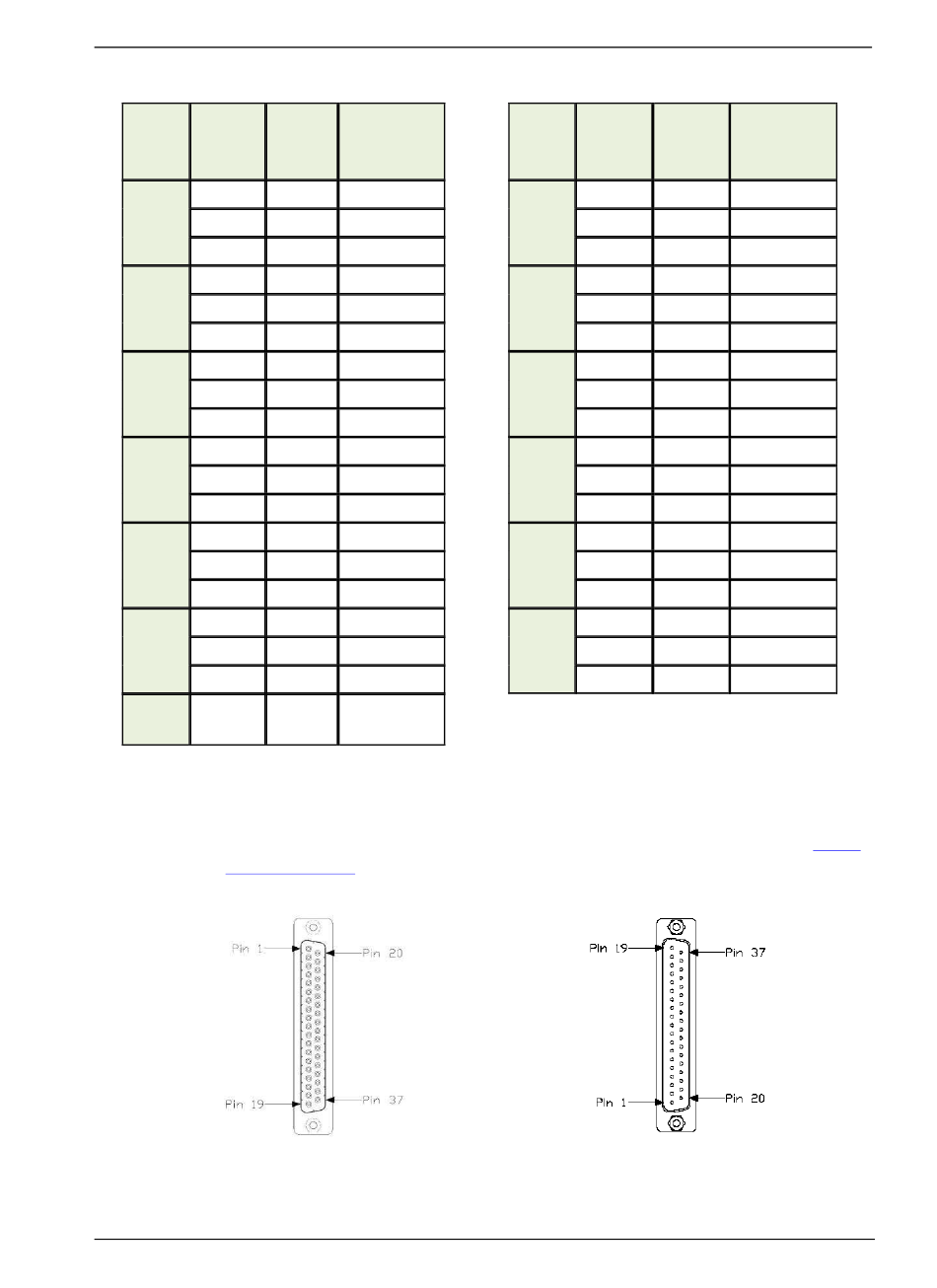

SKF Multilog On-Line System IMx-M User Manual page 295

Relay Pin Pin
nr
(before (from
rev. 3) rev.3)
13 1 19
2 18
3 17
14 4 16
5 15
6 14
15 7 13
8 12
9 11
16 10 10
11 9
12 8
17 13 7
14 6
15 5
18 16 4
17 3
18 2
- 19 1
ReXCom = Relay nr X, Common
ReXNO = Relay nr X, Normally Open
ReXNC = Relay nr X, Normally Closed
For default relay connection in normally de-energized / normally energized, see
on Relay
Pin numbers for relay connector board
before rev. 3 (female), front side
SKF Multilog On-Line System IMx-M
User Manual
Relay Connector B
Relay
connection
Re13Com
Re13NO
Re13NC
Re14Com
Re14NO
Re14NC
Re15Com
Re15NO
Re15NC
Re16Com
Re16NO
Re16NC
Re17Com
Re17NO
Re17NC
Re18Com
Re18NO
Re18NC
No
Connection
Modules.
Drawings and Connections
Relay Pin Pin
nr
(before (from
rev. 3) rev.3)
19 20 37
21 36
22 35
20 23 34
24 33
25 32
21 26 31
27 30
28 29
22 29 28
30 27
31 26
23 32 25
33 24
34 23
24 35 22
36 21
37 20
Pin numbers for relay connector board from rev. 3
(male), front side
Technical Data
Relay
connection
Re19Com
Re19NO
Re19NC
Re20Com
Re20NO
Re20NC
Re21Com
Re21NO
Re21NC
Re22Com
Re22NO
Re22NC
Re23Com
Re23NO
Re23NC
Re24Com
Re24NO
Re24NC
Relays
7 - 19
